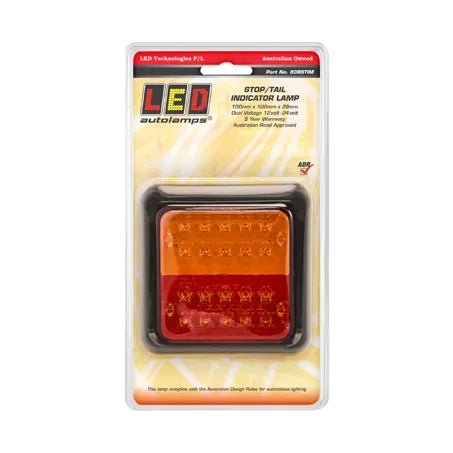

LED Autolamps 80BSTIM MultiVolt Stop/Tail/Indicator Lamp Black Bracket 40cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 80BSTIM MultiVolt Stop/Tail/Indicator Lamp Black Bracket 40cm Wire

SKU: 80BSTIM
5.0 (1)
Price
$93
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 80BSTIM 12-24V Stop Tail and Indicator Combination Lamp Black Bracket 100mm x 100mm x 28mm 60mm Mounting Centres 40cm Wire Clip-In Replaceable Lens ADR Approved CTA060134 CRN35788 CRN35789 CRN35787 IP67

The LED Autolamps 80BSTIM is a 12-24V stop, tail, and indicator combination lamp with black bracket and 40cm wire. 100mm x 100mm x 28mm, 60mm mounting centres, pre-wired, surface mount. Clip-in replaceable lens. ADR approved (CTA060134). Stop CRN35788, tail CRN35789, indicator CRN35787. IP67 waterproof. Five-year warranty. Sold individually.

Product overview

The 80BSTIM is a compact square stop, tail, and indicator combination lamp in the 80 series, with a 100mm x 100mm x 28mm profile and 60mm mounting centres suited to smaller trailer and vehicle rear lamp positions. The clip-in replaceable lens allows the lens to be replaced without replacing the full lamp. Three separate CRN references CRN35788 (stop), CRN35789 (tail), and CRN35787 (indicator) confirm full road-legal compliance across all three functions in Australia. ADR CTA060134 approval. Black bracket included, 40cm wire. IP67 waterproof. 12-24V compatible.

Features and benefits

Stop, tail, and indicator in one unit.

Clip-in replaceable lens: Lens can be replaced without replacing the full lamp.

Black mounting bracket included.

100mm x 100mm x 28mm.

60mm mounting centres.

40cm pre-wired cable.

Surface mount.

ADR approved (CTA060134), stop CRN35788, tail CRN35789, indicator CRN35787: Full road-legal compliance in Australia.

IP67 fully waterproof and submersible.

12V and 24V compatible.

Five-year warranty.

Technical specs

Specification Detail
SKU 80BSTIM
Brand LED Autolamps
Type Stop/tail/indicator combination lamp
Housing Colour Black
Operating Voltage 12V to 24V
Current Stop 0.33A at 13.8V
Current Tail 0.06A at 13.8V
Current Indicator 0.31A at 13.8V
Dimensions 100mm x 100mm x 28mm
Mounting Centres 60mm
Cable Length 40cm
Connection Pre-wired
Mount Type Surface mount
Lens Clip-in replaceable
Waterproof Rating IP67
ADR Compliance CTA060134
Stop CRN CRN35788
Tail CRN CRN35789
Indicator CRN CRN35787
Weight 0.173kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 80BSTIM ADR approved?

Yes. The 80BSTIM holds ADR approval CTA060134 with stop CRN35788, tail CRN35789, and indicator CRN35787, confirming full road-legal compliance across all three functions in Australia.

Can the lens on the 80BSTIM be replaced?

Yes. The 80BSTIM features a clip-in replaceable lens, allowing the lens to be replaced without replacing the full lamp unit.

What is the difference between the 80BSTIM and the 80BARM?

The 80BSTIM is 100mm x 100mm x 28mm with 60mm mounting centres, 40cm wire, and clip-in lens replacement. The 80BARM is 188mm x 100mm x 28mm with 150mm mounting centres and 72 LEDs. The 80BSTIM suits compact lamp positions; the 80BARM suits standard long-bar trailer positions.

What are the mounting centres on the 80BSTIM?

The 80BSTIM has 60mm mounting centres.

Is the 80BSTIM waterproof?

Yes. The 80BSTIM has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes.
