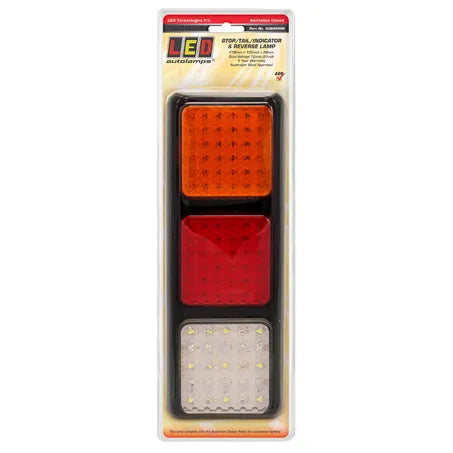

LED Autolamps 80BARWM 12/24 Multi Volt Stop/Tail/Indicator/Reverse Lamp 108 LED
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 80BARWM 12/24 Multi Volt Stop/Tail/Indicator/Reverse Lamp 108 LED

SKU: 80BARWM
Price
$289
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Stop/Tail/Indicator/Reverse Assembly 108 LEDs, Full CRN Certification, 278x100mm, IP67

Product Overview

The LED Autolamps 80BARWM is the four-function flagship of the 80 series a 12/24V rear combination lamp covering stop, tail, indicator, and reverse with 108 LEDs across a 278mm x 100mm x 28mm black bracket. All four functions carry individual CRN certification: stop/tail CRN33059, indicator CRN33098, and reverse CRN35797.

Individual lens replacements, 240mm centre-to-centre mount, and pre-wired connection. Drawing 0.33A stop, 0.06A tail, 0.31A indicator, and 0.17A reverse at 13.8V. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

  • 108 LEDs across four functions — comprehensive rear lighting coverage in a single 278mm unit
  • Full individual CRN certification — stop/tail CRN33059, indicator CRN33098, reverse CRN35797
  • Individual lens replacements — each lens section replaces independently, reducing fleet maintenance costs
  • All four current draws confirmed — 0.33A stop, 0.06A tail, 0.31A indicator, 0.17A reverse at 13.8V
  • ADR approved across all four functions — complete compliance documentation for road-legal fitment
  • 240mm centre-to-centre mount — confirm against your panel before installation
  • Pre-wired surface mount — ready to connect out of the blister pack
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 80BARWM
Lamp Type Stop / Tail / Indicator / Reverse
LED Quantity 108
Voltage Range 12V / 24V
Dimensions 278mm x 100mm x 28mm
Mount Centre-to-Centre 240mm
Stop Current Draw 0.33A @ 13.8V
Tail Current Draw 0.06A @ 13.8V
Indicator Current Draw 0.31A @ 13.8V
Reverse Current Draw 0.17A @ 13.8V
Lens Individual replacements
Housing Colour Black
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Stop/Tail Compliance ADR — CRN33059
Indicator Compliance ADR — CRN33098
Reverse Compliance ADR — CRN35797
Packaging Blister pack
Warranty 5 years

Compatible With / Goes Well With

  • Trucks, trailers, and commercial vehicles requiring a complete four-function rear combination lamp with full ADR certification
  • 12V light vehicles and 24V heavy transport applications
  • LED Autolamps 80BARRM (same dimensions, stop/tail/indicator only — no reverse)
  • LED Autolamps 80BARM (same certifications, narrower 188mm format)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 80BARWM approved for road use in Australia?

Yes. The 80BARWM holds individual ADR CRN certifications across all four functions — stop/tail (CRN33059), indicator (CRN33098), and reverse (CRN35797) — meeting Australian Design Rules for full legal on-road use.

How does the 80BARWM differ from the 80BARRM?

The 80BARWM adds reverse function (CRN35797) to the same 278mm x 100mm form factor as the 80BARRM. Choose the 80BARWM for a complete four-function assembly; choose the 80BARRM where a separate reverse lamp is preferred.

What are all four current draws?

Stop draws 0.33A, tail 0.06A, indicator 0.31A, and reverse 0.17A — all at 13.8V.

What is the IP rating on the 80BARWM?

The 80BARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.

What warranty does the 80BARWM carry?

The 80BARWM is backed by a 5-year warranty from LED Autolamps.
