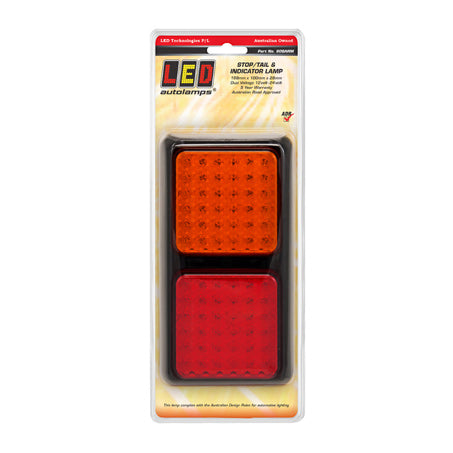

LED Autolamps 80BARM Multi Volt Stop/Tail/Indicator Assembly 72 LEDs Bracket
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 80BARM Multi Volt Stop/Tail/Indicator Assembly 72 LEDs Bracket

SKU: 80BARM
5.0 (1)
Price
$137
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Stop/Tail/Indicator Assembly 72 LEDs, Black Bracket, Individual Lens Replacements, IP67

Product Overview

The LED Autolamps 80BARM is a 12/24V rear combination lamp covering stop, tail, and indicator functions with 72 high-brightness LEDs in a 188mm x 100mm x 28mm black bracket assembly. Individual lens replacements allow each section to be serviced independently without replacing the full unit a significant maintenance advantage on commercial vehicle fleets. The 150mm centre-to-centre mount and pre-wired connector make installation straightforward.

Carrying CRN approvals for stop/tail (CRN33059) and indicator (CRN33098), drawing 0.33A stop, 0.06A tail, and 0.31A indicator at 13.8V. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

  • 72 LEDs across three functions — high LED count delivers strong, consistent stop, tail, and indicator brightness
  • Individual lens replacements — each lens section can be replaced independently, reducing repair costs on commercial fleets
  • ADR approved — stop/tail CRN33059 and indicator CRN33098 certified
  • Black bracket — professional finish for trailer and truck rear panels
  • 150mm centre-to-centre mount — confirm against your panel before installation
  • Pre-wired surface mount — ready to connect straight out of the blister pack
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 80BARM
Lamp Type Stop / Tail / Indicator
LED Quantity 72
Voltage Range 12V / 24V
Dimensions 188mm x 100mm x 28mm
Mount Centre-to-Centre 150mm
Stop Current Draw 0.33A @ 13.8V
Tail Current Draw 0.06A @ 13.8V
Indicator Current Draw 0.31A @ 13.8V
Lens Individual replacements
Housing Colour Black
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Stop/Tail Compliance ADR — CRN33059
Indicator Compliance ADR — CRN33098
Packaging Blister pack
Warranty 5 years

Compatible With / Goes Well With

  • Trucks, trailers, and commercial vehicles requiring a high-output rear combination lamp with serviceable lenses
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ADR-approved stop/tail/indicator lighting with full CRN certification
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 80BARM approved for road use in Australia?

Yes. The 80BARM holds individual ADR CRN certifications — stop/tail (CRN33059) and indicator (CRN33098) — meeting Australian Design Rules requirements for legal on-road use.

What does individual lens replacement mean for fleet maintenance?

Each lens section in the assembly can be replaced independently — if a lens is damaged, only that section needs to be replaced rather than the entire lamp unit, reducing parts costs and downtime on commercial fleets.

How does the 80BARM compare to the 200BSTIM?

The 80BARM is 188mm x 100mm with 72 LEDs and individual lens replacements. The 200BSTIM is the standard 200mm x 50mm rectangular form factor. The 80BARM suits applications requiring a wider, higher LED-count lamp with field-serviceable lenses.

What is the IP rating on the 80BARM?

The 80BARM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 80BARM carry?

The 80BARM is backed by a 5-year warranty from LED Autolamps.
