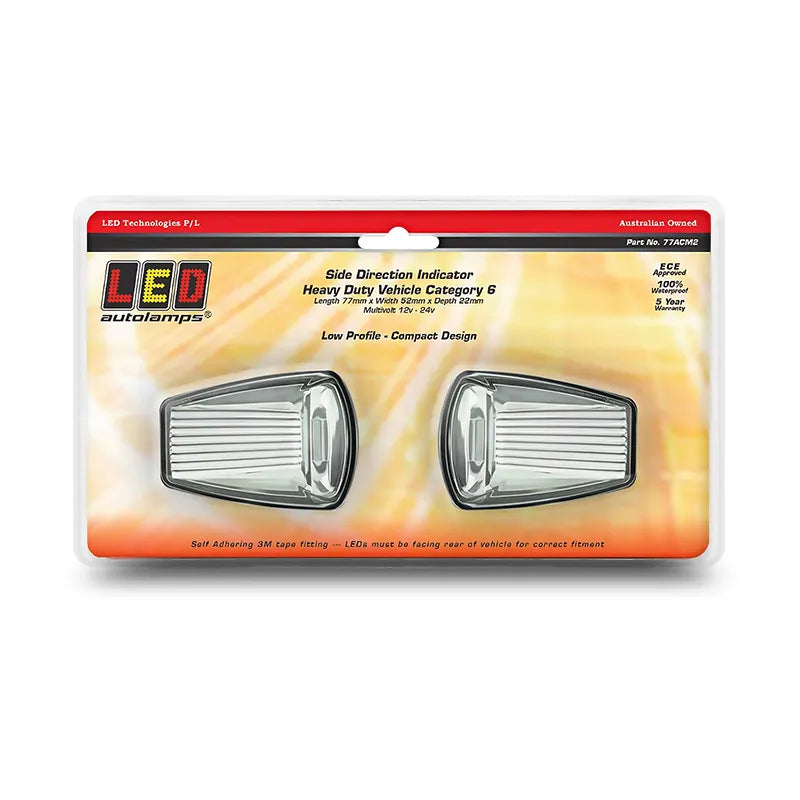

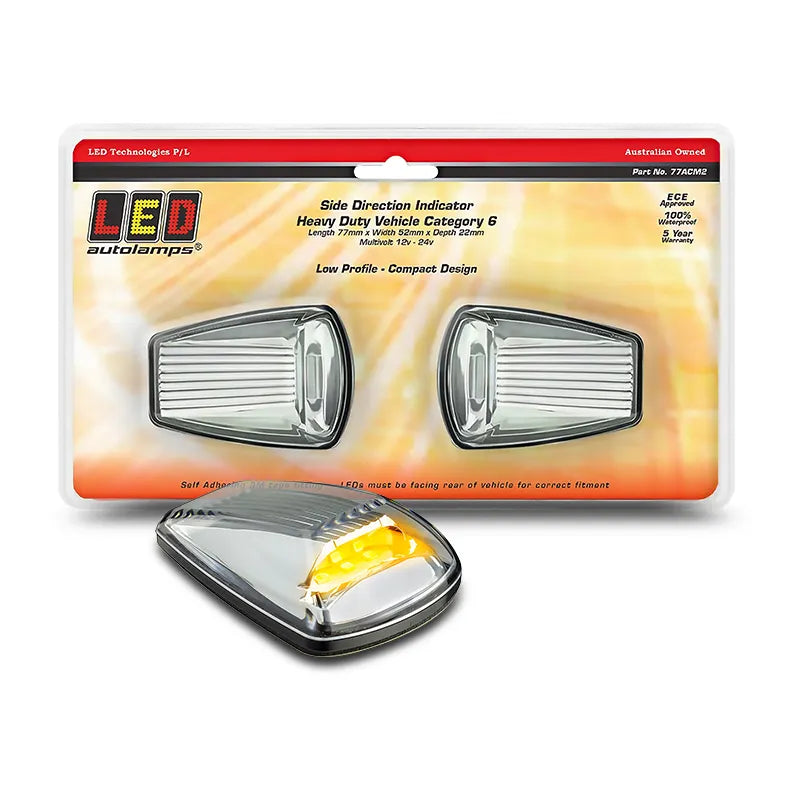

LED Autolamps 77ACM2 12/24V Cat6 Side Direction Indicator Clear Lens Twin Blister

Category 6 Side Direction Indicator for GVM Upgraded Vehicles ECE Approved, 3M Tape, Twin Pack.

Product Overview

The LED Autolamps 77ACM2 is a Category 6 side direction indicator specifically suitable for vehicles that have undergone a GVM (Gross Vehicle Mass) upgrade. When a vehicle's GVM is increased through suspension, chassis, or load capacity modifications, additional or upgraded side indicator lamps are often required to maintain compliance with Australian vehicle standards and the 77ACM2 is purpose-built to meet this specific Category 6 requirement.

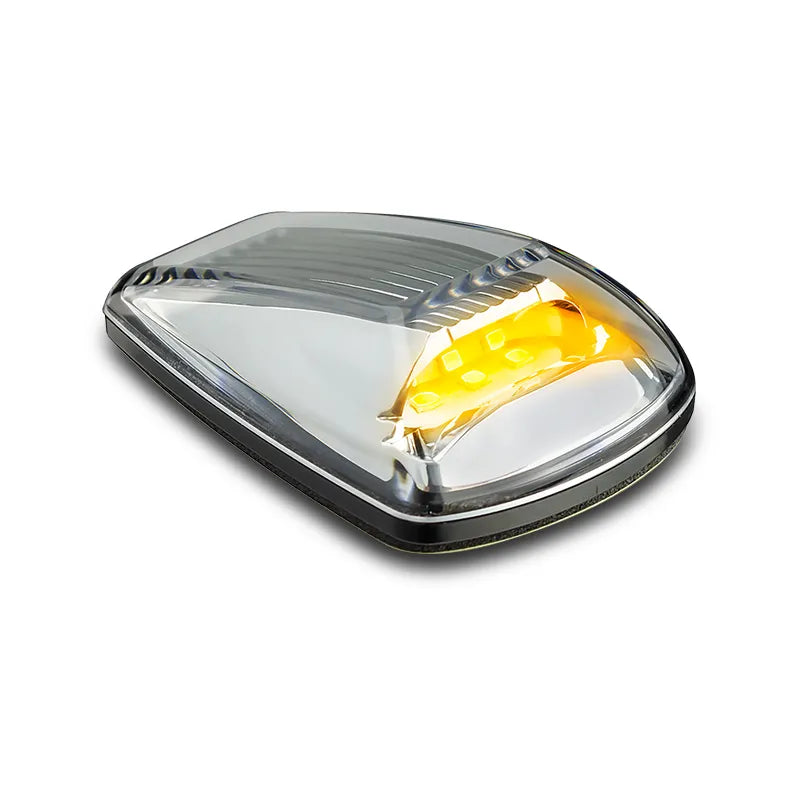

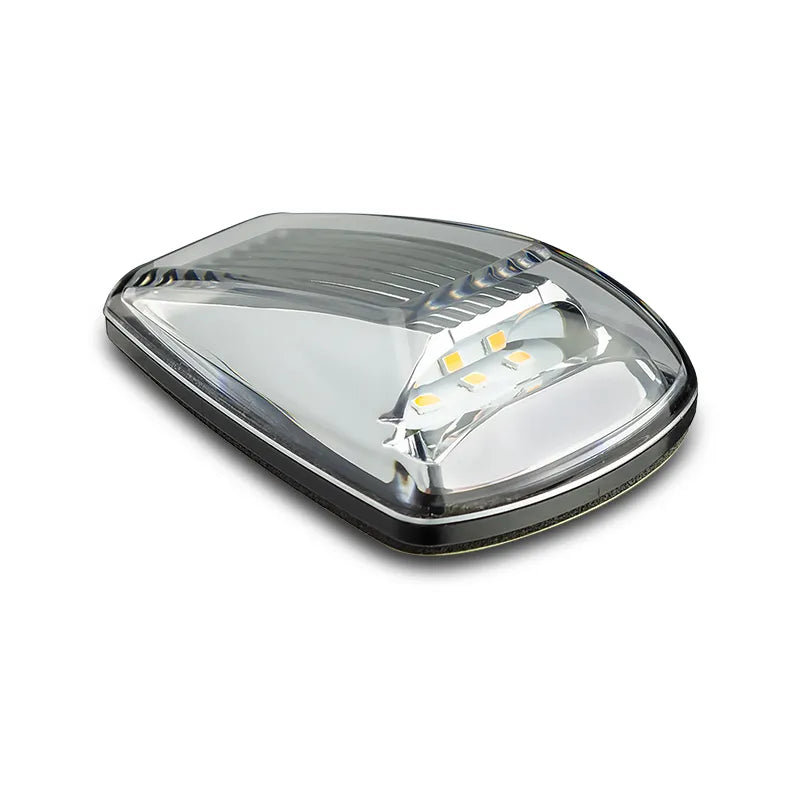

Featuring a clear lens with 3 internal LEDs, the 77ACM2 measures a compact 77mm x 52mm x 22mm and installs via 3M adhesive tape with a plug-and-play connection no complex wiring required. ECE Category 6 approved (E96R01/2922383*00), IP67 rated, and operating across a broad 9–32V voltage range, the 77ACM2 suits both 12V and 24V vehicles including those that have undergone GVM upgrades for towing, camping, or commercial applications. Supplied as a twin blister pack and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Function: Category 6 side direction indicator
• LED count: 3
• Lens: Clear
• Dimensions: 77mm x 52mm x 22mm
• Mount: 3M adhesive tape with plug
• IP rating: IP67
• Input voltage: 9–32V DC (multivolt)
• Current draw: 0.12A @ 13.8V / 0.08A @ 28V
• Compliance: ECE Category 6 E96R01/2922383*00
• Warranty: 5 years
• Pack quantity: 2 (twin blister)
• Brand: LED Autolamps
• SKU: 77ACM2

Features & Benefits

• Suitable for GVM upgrades: Specifically designed to meet Category 6 side indicator requirements for vehicles that have undergone a GVM upgrade, helping maintain compliance after suspension, chassis, or load capacity modifications
• Category 6 ECE approved: Certified under ECE E96R01/2922383*00 for legal compliance as a Category 6 side direction indicator
• Easy 3M tape and plug fitting: Adhesive mount with a plug-and-play connector simplifies installation no splicing or complex wiring required
• Low profile compact design: At just 22mm deep, the 77ACM2 sits discreetly on vehicle body panels without protruding
• 9–32V broad voltage range: Suits both 12V passenger vehicles and 24V commercial trucks, covering the widest possible range of GVM-upgraded vehicle applications
• IP67 weatherproof: Completely sealed against dust ingress and temporary water immersion
• Low current draw: 0.12A at 13.8V and 0.08A at 28V minimal load on the vehicle's electrical system
• Twin blister pack: Two lamps per pack for left and right side fitment in a single purchase
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Suitable for:

• Vehicles that have undergone a GVM (Gross Vehicle Mass) upgrade
• 4WDs and utes requiring Category 6 side indicator compliance after modification
• Commercial vehicles requiring additional side indicator visibility

Frequently Asked Questions

Why would a GVM upgraded vehicle need this specific indicator?

When a vehicle's GVM is increased through suspension, chassis, or load capacity modifications, the increased vehicle dimensions or load configuration can require additional or upgraded side indicator visibility to maintain compliance with Australian vehicle standards. The 77ACM2 is specifically designed to meet Category 6 side direction indicator requirements relevant to these modifications.

What does Category 6 mean for a side indicator?

Category 6 is an ECE classification for side direction indicators, with specific technical and photometric requirements. The 77ACM2 is certified under ECE E96R01/2922383*00 to meet these Category 6 requirements.

How is this lamp installed?

The 77ACM2 uses 3M adhesive tape combined with a plug-and-play connector for fast installation. Ensure the mounting surface is clean, dry, and free of grease or wax before applying the adhesive.

How many lamps are included in this pack?

The twin blister pack contains two lamps sufficient for both left and right side fitment.

Should I confirm GVM compliance requirements before purchasing?

Yes GVM upgrade compliance requirements vary by state and modification type. Confirm your specific requirements with your engineering certifier, installer, or relevant state authority before purchasing and installing this product for compliance purposes.
