LED Autolamps 77ACM 12/24V Cat6 Side Direction Indicator Clear Lens Blister Pack
LED Autolamps 77ACM 12/24V Cat6 Side Direction Indicator Clear Lens Blister Pack
LED Autolamps 77ACM 12/24V Cat6 Side Direction Indicator Clear Lens Blister Pack
LED Autolamps 77ACM 12/24V Cat6 Side Direction Indicator Clear Lens Blister Pack
LED Autolamps 77ACM 12/24V Cat6 Side Direction Indicator Clear Lens Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 77ACM 12/24V Cat6 Side Direction Indicator Clear Lens Blister Pack

SKU: 77ACM
Price
$69
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Cat 6 Side Direction Indicator Clear Lens, Single Blister Pack, 9–32V, IP67.

Product Overview

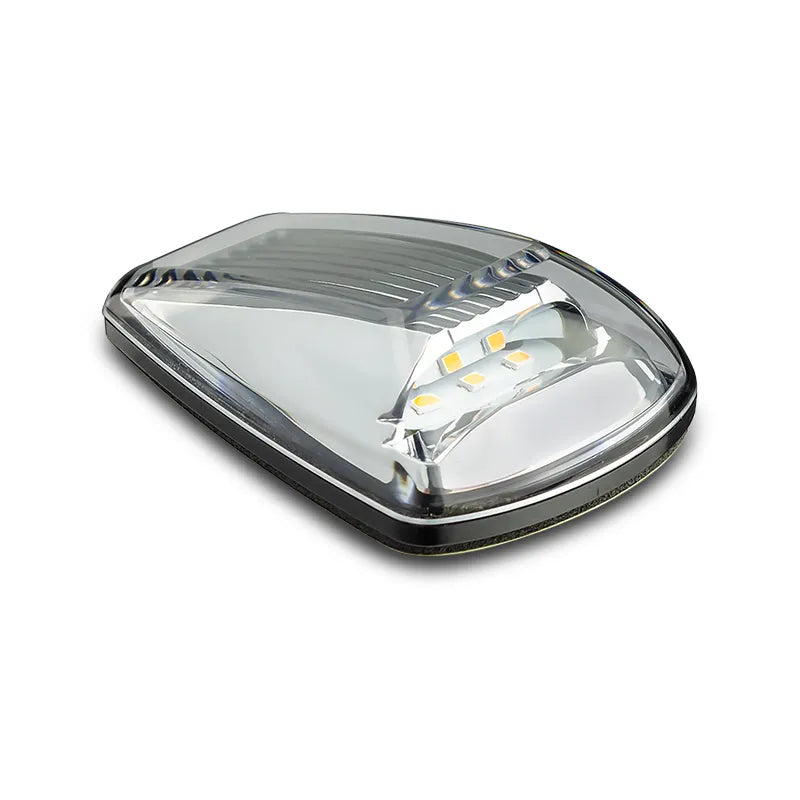

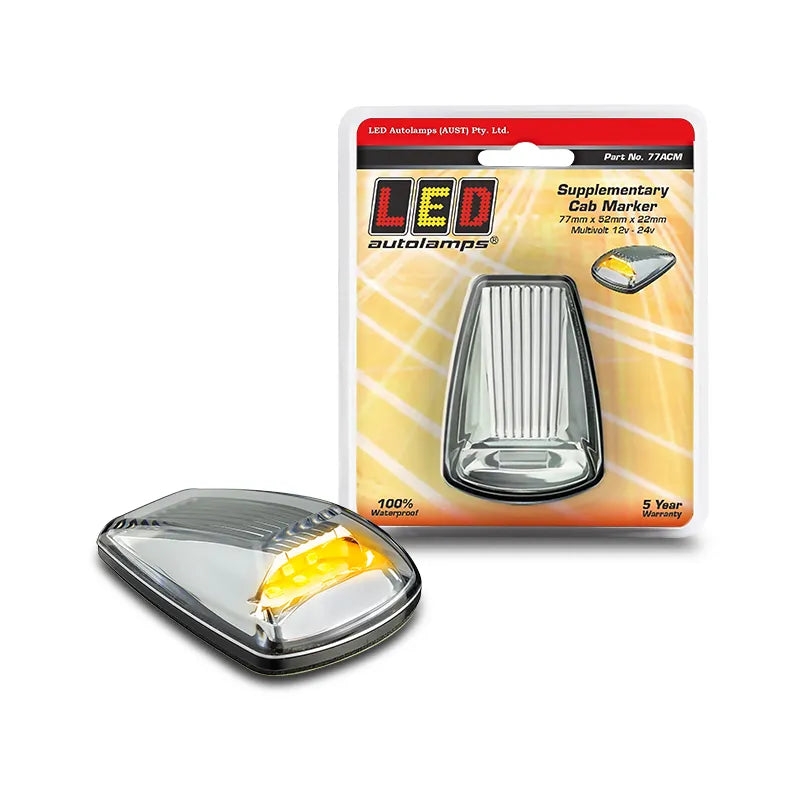

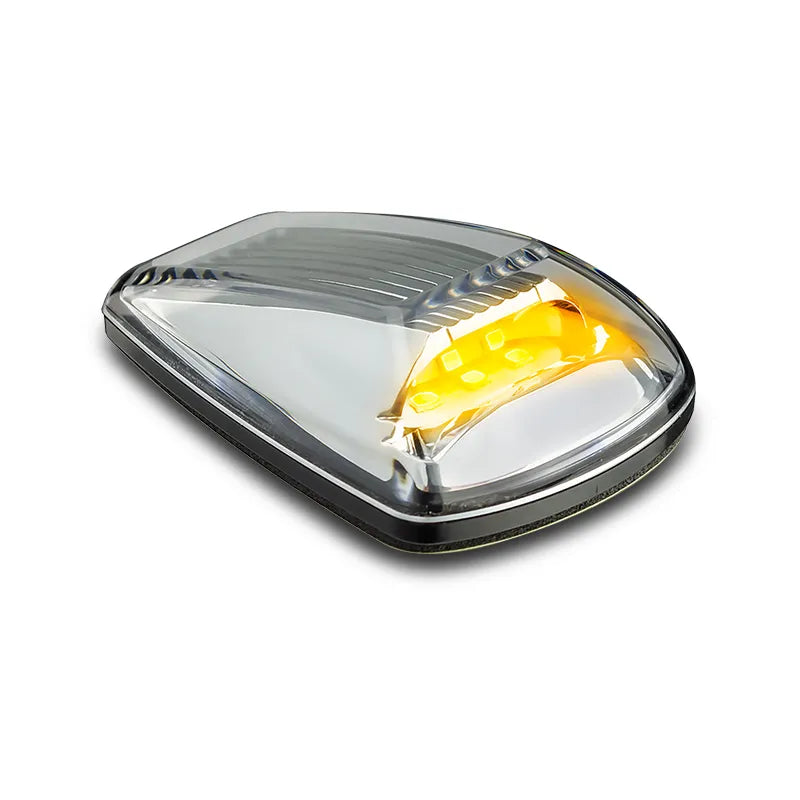

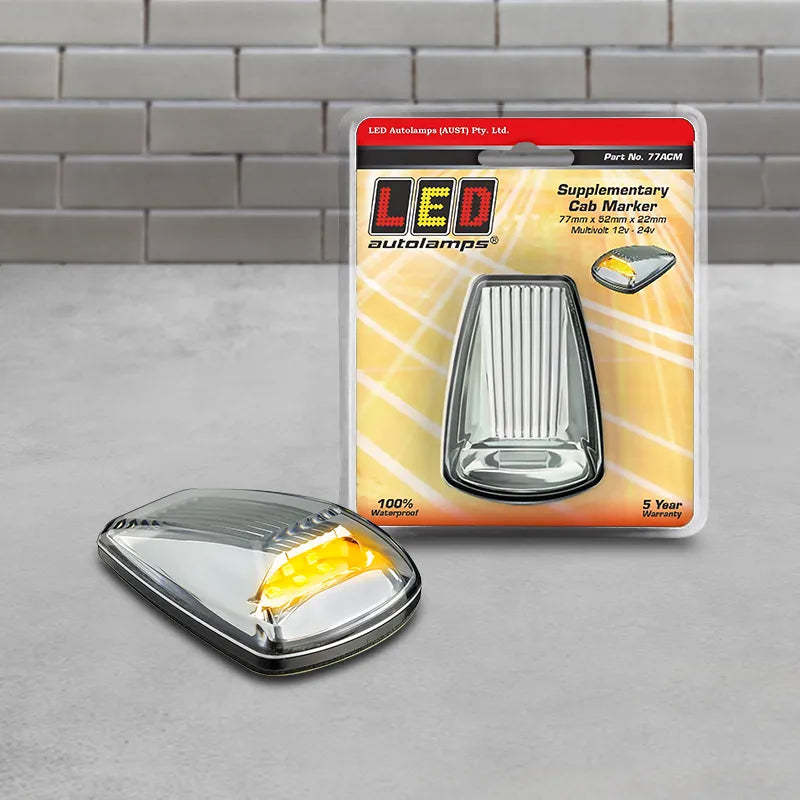

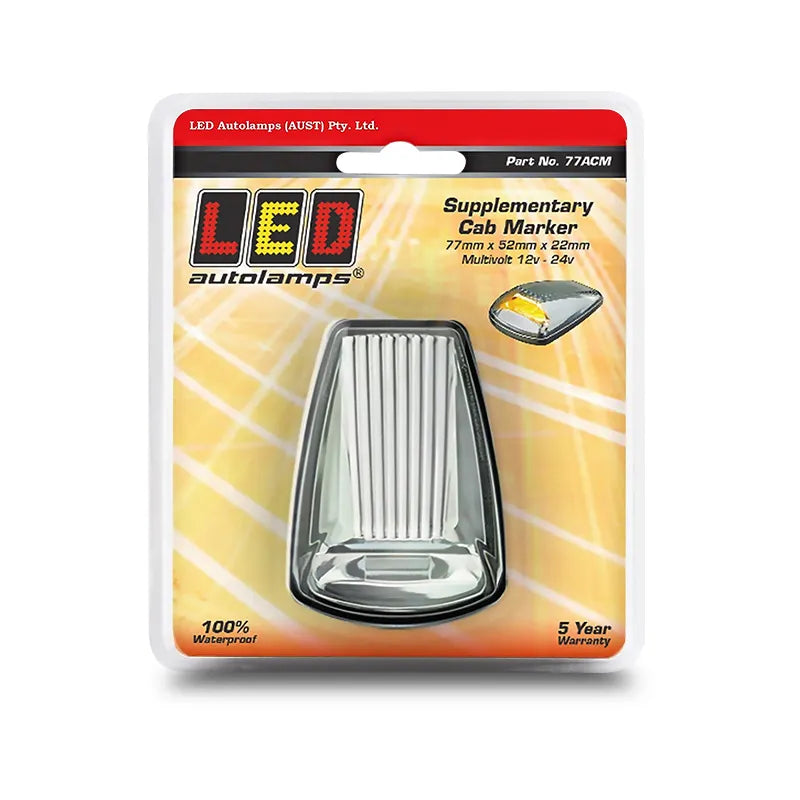

The LED Autolamps 77ACM is a Cat 6 side direction indicator from the 77 Series the single blister pack version of the clear lens variant. Where the 77ACM2 is a twin blister pack (left-hand + right-hand), the 77ACM is a single blister pack one lamp per pack suited to replacement, repair, or applications where only one side indicator is required.

Featuring a clear lens with internal amber LEDs, 3M tape and serrated plug fitting, low-profile compact design, IP67 rating, and 9–32V multivolt operation. Left or right-hand mountable LEDs must face the rear of the vehicle. ECE approved for Cat 6 side direction indicator use. Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: Cat 6 side direction indicator
  • Lens: Clear with internal amber LEDs
  • Dimensions: 77mm x 52mm x 22mm
  • Fitting system: 3M tape + serrated plug (10mm hole)
  • LED orientation: Faces rear of vehicle
  • Mount: Left or right-hand mountable
  • IP rating: IP67
  • Input voltage: 9–32V DC (multivolt)
  • Compliance: ECE Category 6 approved
  • Warranty: 5 years
  • Pack quantity: Single blister pack
  • Brand: LED Autolamps
  • SKU: 77ACM

Features & Benefits

  • Single blister pack: One lamp per pack for replacement, repair, or single-side installation
  • Cat 6 approval: ECE Category 6 side direction indicator compliance required for GVM upgrade applications
  • Clear lens with amber LEDs: Clean lens appearance with internal amber LEDs
  • Left or right-hand mountable: Single lamp installs on either side non-handed
  • 3M tape and serrated plug: Fast, tool-minimal installation drill 10mm hole, plug and tape
  • 9–32V broad voltage range: Wide multivolt coverage for all 12V and 24V systems
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 77ACM
Brand LED Autolamps
Series 77 Series
Function Cat 6 Side Direction Indicator
Lens Clear internal amber LEDs
Dimensions 77mm x 52mm x 22mm
Fitting System 3M tape + serrated plug (10mm hole)
LED Orientation Faces rear of vehicle
Mount Left or right-hand mountable
IP Rating IP67
Input Voltage 9–32V DC (multivolt)
Compliance ECE Category 6
Warranty 5 Years
Pack Quantity Single blister pack

Compatible With

Suits all 12V and 24V vehicles requiring Cat 6 side direction indicators:

  • GVM upgrade applications where a single replacement lamp is needed
  • Any vehicle requiring an individual Cat 6 side indicator

Frequently Asked Questions

Is this a single lamp or a twin pack?

The 77ACM is a single blister pack one lamp. For a left and right pair, refer to the 77ACM2 twin blister pack.

What is the difference between the 77ACM and the 77ACM2?

The 77ACM is a single blister pack while the 77ACM2 is a twin blister pack containing both a left-hand and right-hand lamp. All other specifications are identical.

Is this lamp Cat 6 ECE approved?

Yes ECE Category 6 side direction indicator approved.

Which direction do the LEDs face?

LEDs must face the rear of the vehicle confirm orientation before drilling the 10mm mounting hole.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
