Product features

Dual-Purpose Round LED Lamp ADR 1/00 Reverse Approved, 12W Flood Beam, Runs on 12V or 24V

Product Overview

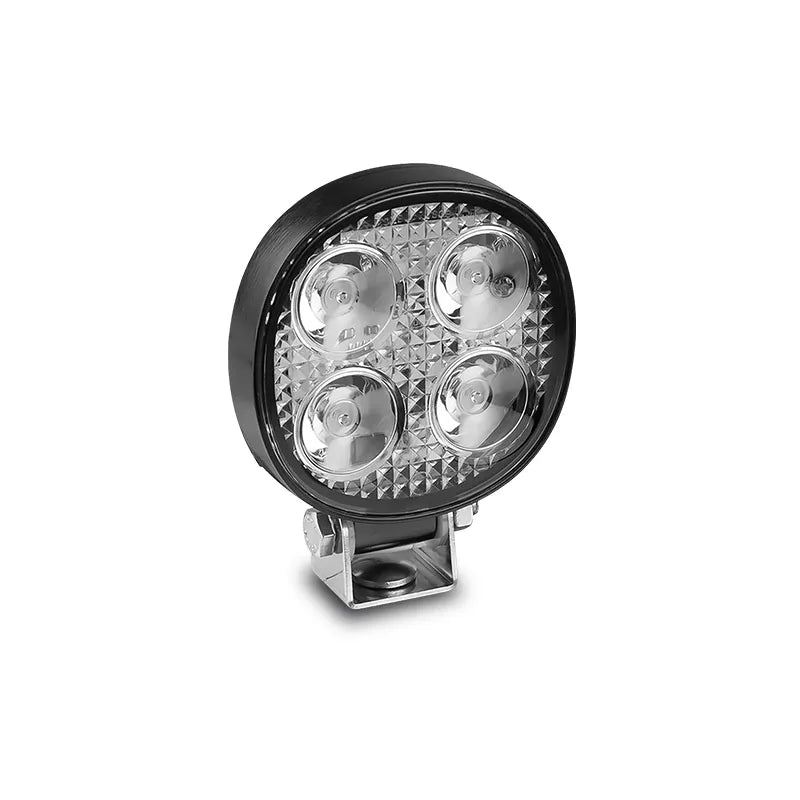

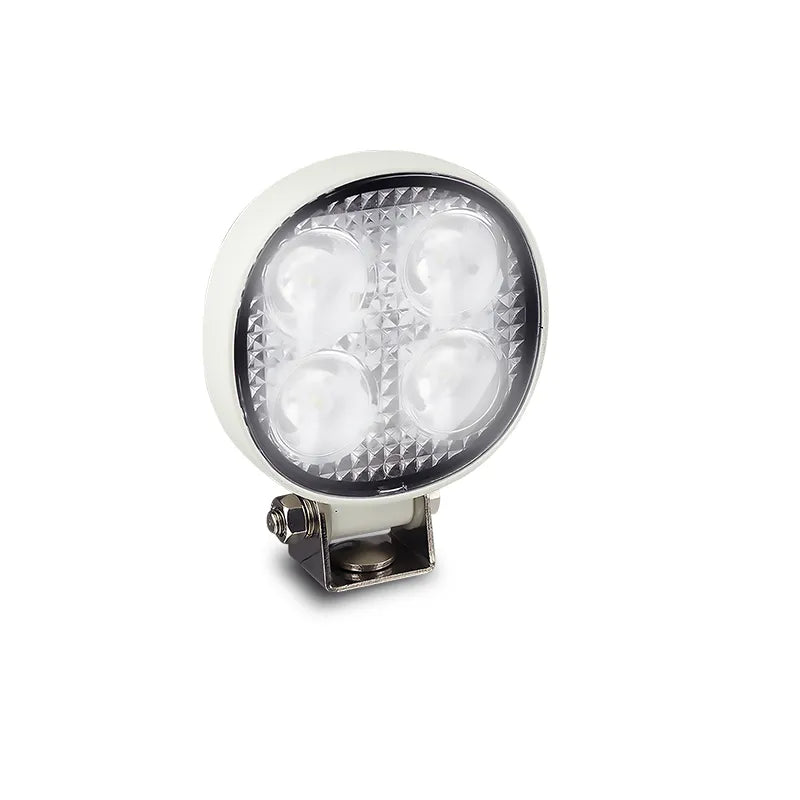

The LED Autolamps 7512WM is a compact round LED lamp rated for both work light and reversing lamp duties. It carries ECE and ADR 1/00 compliance the Australian Design Rule specifically governing reversing lamps on motor vehicles and trailers making it a road-legal reverse light option for trailers, caravans, and commercial vehicles, while also functioning as a 12W flood beam work lamp for close-range illumination on site, in the field, or at camp.

Powered by four 3-watt LEDs in a flood beam pattern, the 7512WM puts out a wide, even spread of white light suited to reversing visibility and general task lighting. IP67 rated and operating across 12–24V without modification, it handles the electrical and environmental demands of both light vehicle and heavy vehicle applications. At 75mm x 75mm x 30mm it is a compact, low-profile unit backed by a 5-year warranty.

Features & Benefits

  • ADR 1/00 and ECE compliant — road-legal for use as a reversing lamp on Australian trailers and vehicles; ADR 1/00 is the specific Australian Design Rule for reversing lamps, making this a compliant reverse light option
  • Dual work lamp and reverse lamp function — performs as both a flood beam work light and a road-legal reversing lamp; useful for trailers and vehicles that need both functions from a single, compact fitting
  • 4 x 3W LEDs — 12W total — four high-brightness LEDs delivering strong light output from a 75mm round housing; flood beam pattern provides wide-area illumination suited to reversing and close-range work tasks
  • Flood beam pattern — wide, even light spread rather than a focused spot; covers the reversing zone behind a vehicle or trailer and illuminates a broad work area at short range
  • IP67 rated — fully sealed against dust and protected against temporary water immersion; handles rain, road spray, and outdoor exposure without degrading performance
  • 12–24V multi-volt — operates across the full 12V to 24V range without modification; suits light trailers, caravans, and 24V commercial and agricultural vehicles
  • Compact 75mm x 75mm x 30mm housing — low-profile round design suits tight mounting positions on trailers, towbars, and vehicle bodies without excessive protrusion
  • 5-year warranty — LED Autolamps' standard warranty applied to this lamp

Technical Specs

Specification Detail
SKU 7512WM
Lamp type Work / Reverse (dual function)
LED configuration 4 x 3W
Total wattage 12W
Beam type Flood beam
Voltage range 12–24V
IP rating IP67
Compliance ADR 1/00 Reverse / ECE
Shape Round
Size 75mm (L) x 75mm (W) x 30mm (D)
Mounting Not specified — confirm with supplier
Connector Not specified — confirm with supplier
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, and commercial vehicles requiring ADR 1/00-compliant reversing lamps
  • 12V and 24V electrical systems (multi-volt, no modification required)
  • Work and utility applications requiring compact flood beam illumination
  • Pairs with LED Autolamps trailer lamp and wiring harness range for a complete trailer lighting build

Weight

Not specified

Frequently Asked Questions

Is this lamp road-legal as a reversing lamp in Australia?

Yes — the 7512WM carries ADR 1/00 compliance, which is the Australian Design Rule specifically governing reversing lamps on motor vehicles and trailers. ECE compliance is also noted for international standard alignment.

What does the flood beam mean in practice?

A flood beam spreads light wide and evenly across a short range rather than projecting a focused beam at distance. For a reverse lamp, this provides good rear visibility when manoeuvring; for work lamp use, it illuminates a broad area at close quarters.

What is the total light output of this lamp?

The 7512WM uses four 3-watt LEDs for a combined 12W output. Lumen output is not specified in the supplier data — contact LED Autolamps for the rated lumen figure if photometric performance is critical to your application.

Will it work on a 24V truck or trailer system?

Yes — the 7512WM operates across 12–24V without any modification or additional components, covering both light vehicle and heavy vehicle applications.

What mounting and wiring options does it use?

Mounting hardware and connector type are not specified in the supplier data for this product. Confirm installation requirements directly with LED Autolamps or contact F.A.E. before purchasing to ensure compatibility with your setup.
