Product features

Round Work/Reverse Flood Lamp 4x3W LEDs, 489lm, ECE/ADR 1/00 Approved, 12/24V.

Product Overview

The LED Autolamps 7512BM is a compact round work and reverse flood lamp from the 7512 Series a dual-purpose lamp providing both high-output work lamp illumination and ECE/ADR 1/00 reverse lamp compliance in a single compact 75mm x 75mm x 30mm unit. The 7512 Series features ECE/ADR 1/00 reverse approval, high light output flood beam, 4x3W high-brightness LEDs, IP67, 12–24V, 75mm x 75mm x 30mm, 5-year warranty.

The 7512BM delivers 489lm effective (660lm raw), 0.59A current draw at 13.8V / 0.27A at 28V, and includes a 40cm cable in a single blister pack. Fixed to mounting surface using stainless steel hardware supplied. Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: Work lamp (flood beam) + reverse lamp (ECE/ADR 1/00)
  • LED count: 4 x 3W (12W total)
  • Beam type: Flood
  • Lumen output: 489lm effective / 660lm raw
  • Dimensions: 75mm x 75mm x 30mm
  • Cable: 40cm
  • Current draw: 0.59A @ 13.8V / 0.27A @ 28V
  • Mount type: Surface mount stainless steel hardware supplied
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ECE/ADR 1/00 (reverse)
  • Warranty: 5 years

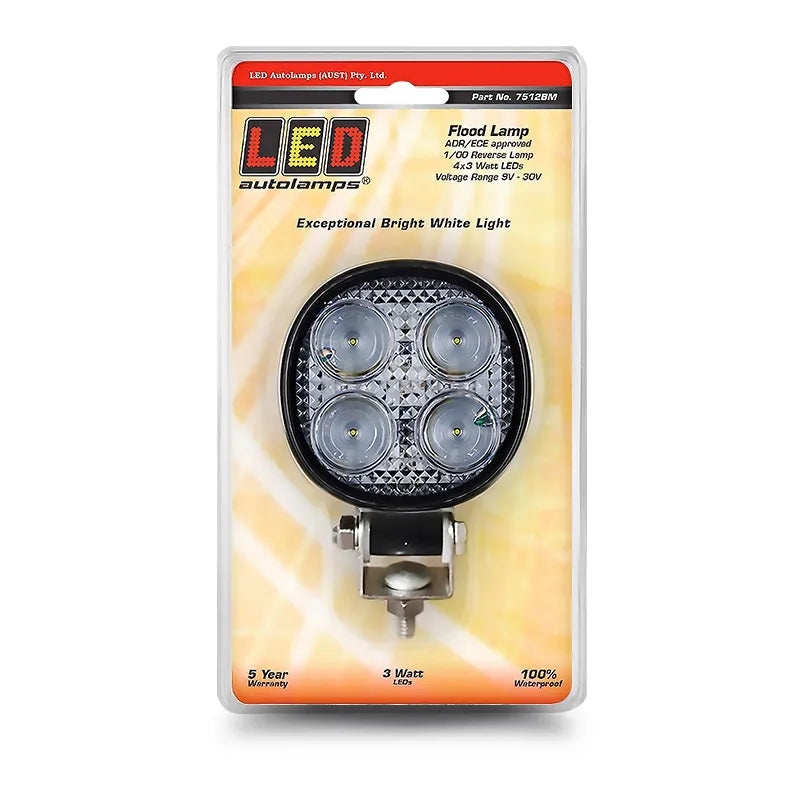

  • Packaging: Single blister
  • Brand: LED Autolamps
  • SKU: 7512BM

Features & Benefits

  • Dual purpose work lamp and reverse: Functions as both a high-output flood work lamp and an ECE/ADR 1/00 approved reverse lamp in a single compact unit
  • 4x3W high-brightness LEDs: 12W total LED power delivering 489lm effective for strong, wide flood beam output
  • ECE/ADR 1/00 approved: Legal for reverse lamp use on Australian and international road vehicles
  • Compact 75mm round format: Small footprint for versatile mounting on trucks, trailers, tray vehicles, and working machinery
  • Stainless steel mounting hardware: Corrosion-resistant stainless steel supplied for all mounting hardware
  • 40cm cable: Pre-wired for standard installation
  • 0.59A @ 13.8V: Efficient current draw for a 12W flood lamp
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits light and heavy commercial applications
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 7512BM
Brand LED Autolamps
Series 7512 Series
Function Work Lamp (Flood) + Reverse Lamp
LED Count 4 x 3W (12W total)
Beam Type Flood
Effective Lumens 489lm
Raw Lumens 660lm
Dimensions 75mm x 75mm x 30mm
Cable Length 40cm
Current Draw 0.59A @ 13.8V / 0.27A @ 28V
Mount Type Surface mount stainless steel hardware supplied
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ECE/ADR Compliance 1/00 Reverse
Warranty 5 Years
Packaging Single blister

Compatible With

Suits all 12V and 24V commercial vehicles, trucks, and machinery requiring a combined work and reverse lamp:

  • Trucks and semi-trailers requiring rear work and reverse lighting
  • Tray vehicles and ute tray conversions
  • Agricultural and construction machinery

Frequently Asked Questions

Is this lamp approved for use as a reverse lamp?

Yes the 7512 Series is ECE/ADR 1/00 approved for reverse lamp use.

What is the lumen output?

489lm effective and 660lm raw.

What is the current draw?

0.59A at 13.8V and 0.27A at 28V.

What mounting hardware is supplied?

Stainless steel mounting hardware is supplied.
