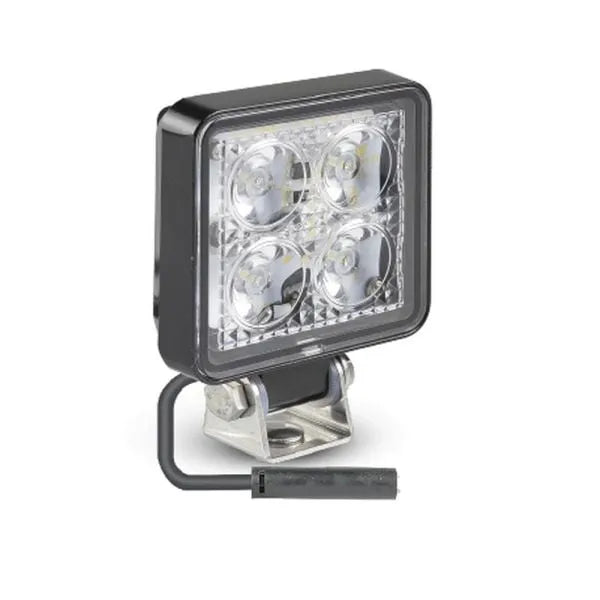

LED Autolamps 7312BMCSB Square Work/Reverse Lamp
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 7312BMCSB Square Work/Reverse Lamp

SKU: 7312BMCSB
Price
$77
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Square Work/Reverse Lamp Heavy Duty Harness System, AS2809 Dangerous Goods Compliant, RoHS, IP67.

Product Overview

The LED Autolamps 7312BMCSB is the heavy duty harness system version of the 7312 Series compact square work/reverse lamp fitted with heavy duty waterproof cable plugs and connectors for integration into the LED Autolamps Heavy Duty Lighting & Harness System. The "CSB" suffix confirms this is the cable system version with female plug (B connector).

Sharing the same 7312 Series lamp specifications as the standard 7312BM 4x3W high-brightness LEDs, 12W total, 489lm effective, ECE/ADR 1/00 reverse approval, IP67, 12–24V, 5-year warranty, 73mm x 73mm x 31mm the 7312BMCSB is specifically configured for dangerous goods transport, heavy duty truck, and tanker applications where the heavy duty plug-and-play harness system is required.

The heavy duty harness system features heavy duty waterproof cable, plugs and connectors, cable system compliance with Dangerous Goods (AS2809), RoHS compliant cables, plugs and lights, and plug covers making it a critical compliance component for DG vehicles operating under Australian dangerous goods regulations.

Key Specifications

  • Function: Work lamp (flood beam) + reverse lamp (ECE/ADR 1/00)
  • LED count: 4 x 3W (12W total)
  • Beam type: Flood
  • Lumen output: 489lm effective / 660lm raw
  • Dimensions: 73mm x 73mm x 31mm
  • Connector: Heavy duty waterproof plug (CSB system)
  • Current draw: 0.59A @ 13.8V / 0.27A @ 28V
  • Mount type: Surface mount stainless steel hardware
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ECE/ADR 1/00, AS2809 Dangerous Goods, RoHS
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 7312BMCSB

Features & Benefits

  • Heavy duty harness system: Pre-fitted heavy duty waterproof plug and connector for integration into the LED Autolamps DG-rated harness system plug-and-play lamp replacement
  • AS2809 Dangerous Goods compliant: Cable system meets AS2809 requirements for dangerous goods transport essential for tankers, chemical carriers, and DG vehicles
  • RoHS compliant: Cables, plugs, and lights all meet RoHS requirements
  • Plug covers: Heavy duty plug covers protect connectors when lamp is disconnected
  • 4x3W LEDs 489lm effective: High light output flood beam for work lamp and reverse applications
  • ECE/ADR 1/00 approved: Legal for reverse lamp use on Australian road vehicles
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits all heavy commercial vehicle applications
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 7312BMCSB
Brand LED Autolamps
Series 7312 Series
System Heavy Duty Lighting & Harness System
Function Work Lamp (Flood) + Reverse Lamp
LED Count 4 x 3W (12W total)
Beam Type Flood
Effective Lumens 489lm
Raw Lumens 660lm
Dimensions 73mm x 73mm x 31mm
Connector Heavy duty waterproof plug (CSB)
Current Draw 0.59A @ 13.8V / 0.27A @ 28V
Mount Type Surface mount stainless steel hardware
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
DG Compliance AS2809 Dangerous Goods
RoHS Yes
ECE/ADR 1/00 Reverse
Warranty 5 Years

Compatible With

Suits all 12V and 24V heavy duty commercial vehicles using the LED Autolamps Heavy Duty Harness System:

  • Dangerous goods tankers and chemical carriers
  • B-doubles and multi-combination vehicles
  • Rigid trucks and semi-trailers using the LED Autolamps DG harness system

Frequently Asked Questions

What system does this lamp connect to?

The 7312BMCSB connects to the LED Autolamps Heavy Duty Lighting & Harness System via a heavy duty waterproof plug it is not for standard hardwired installation.

Is this lamp AS2809 compliant for dangerous goods transport?

Yes the cable system is compliant with Dangerous Goods AS2809, making it suitable for use on dangerous goods vehicles including tankers and chemical carriers.

What are the lumen output and current draw figures?

489lm effective (660lm raw), 0.59A at 13.8V and 0.27A at 28V consistent with the standard 7312BM work/reverse lamp.

Is this lamp ECE/ADR approved for reverse use?

Yes ECE/ADR 1/00 approved for reverse lamp use on Australian and international road vehicles.
