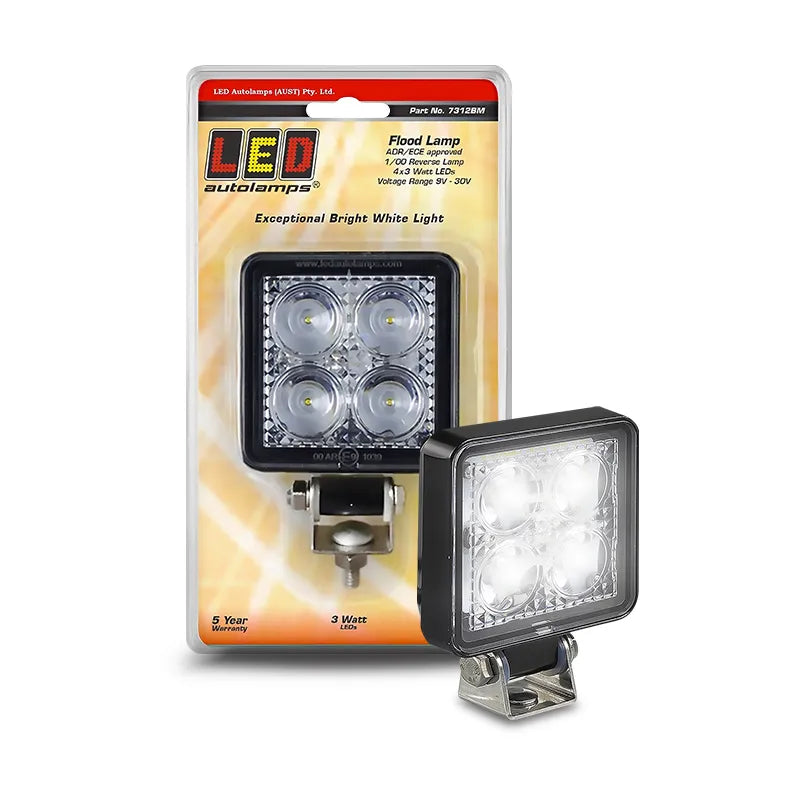

LED Autolamps 7312BM 9/30V 12 Watt Flood Lamp/Reverse Lamp Blister Pack

Compact 12W Flood & Reverse Lamp 489 Lumens, ECE Approved, IP67, Saltwater Resistant, Adjustable Bracket.

Product Overview

The LED Autolamps 7312BM is a 12-watt compact LED flood and reverse lamp with a black die-cast alloy square housing, delivering 489 effective lumens from high-brightness 3-watt LEDs. Measuring just 73mm x 73mm x 31mm, the 7312BM is a versatile compact work lamp suited to reverse lamp applications (ECE 1/00 approved), flood lighting on machinery and commercial vehicles, and any application requiring a small, powerful, weatherproof LED lamp.

The black die-cast alloy housing and stainless steel fittings provide corrosion resistance beyond standard IP67 weatherproofing the 7312BM is specifically noted as tolerant to acidic and alkaline conditions and resistant to sea spray and salt water, making it an ideal choice for marine, coastal, and agricultural applications. An adjustable bracket mount with stainless steel fittings allows precise flood angle adjustment. Pre-wired with a 40cm cable, IP67 rated, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit in blister packaging.

Key Specifications

• Functions: Flood lamp / reverse lamp (ECE 1/00 approved)
• Wattage: 12W
• Effective lumens: 489lm
• LED type: 3W high-brightness LEDs
• Housing: Black die-cast alloy
• Fittings: Stainless steel
• Dimensions: 73mm x 73mm x 31mm
• Cable: 40cm
• Mount type: Adjustable bracket stainless steel fittings
• IP rating: IP67
• Input voltage: 9–30V DC (multivolt)
• ECE compliance: ECE 1/00 (reverse function)
• Special resistance: Sea spray, salt water, acidic and alkaline conditions
• Warranty: 5 years
• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 7312BM

Features & Benefits

• ECE 1/00 reverse lamp approved: Certified for legal use as a reverse lamp on Australian road vehicles and trailers dual function as both a flood work lamp and a compliant reverse lamp
• 489 effective lumens from 3W LEDs: High-brightness 3-watt LEDs deliver impressive output for such a compact 73mm x 73mm form factor
• Black die-cast alloy housing: Premium alloy construction provides superior heat dissipation, impact resistance, and corrosion resistance compared to plastic housings
• Saltwater and corrosion resistant: Specifically tested for sea spray, salt water, and acidic/alkaline environment resistance ideal for marine, coastal, and agricultural applications
• Stainless steel fittings: Bracket hardware and fittings resist rust and corrosion in outdoor and marine environments
• Adjustable bracket mount: Allows flood angle to be set for the specific application then locked into position
• 9–30V broad voltage range: Covers virtually all 12V and 24V vehicle and equipment electrical systems
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 40cm cable: Sufficient length for most mounting and wiring scenarios
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Suits all 9–30V vehicles and equipment requiring compact flood or reverse lighting including:

• Trucks, trailers, and commercial vehicles (reverse lamp)
• Marine and boat applications
• Agricultural machinery
• Construction and mining equipment
• 4WD and off-road vehicles requiring compact work lamps
• Coastal and marine environment vehicles

Frequently Asked Questions

Can this lamp be used as both a flood lamp and a reverse lamp?

Yes the 7312BM is approved under ECE 1/00 for reverse lamp use, and its 489-lumen flood output makes it equally suited to work lamp and flood lighting applications. Choose the application that suits your installation.

What makes this lamp suitable for marine and coastal use?

Beyond IP67 protection, the 7312BM is specifically designed to tolerate sea spray, salt water, and acidic/alkaline conditions making it more suitable for marine, coastal, and agricultural environments than standard IP67-only lamps.

What is the wattage and lumen output?

The 7312BM is 12W total, delivering 489 effective lumens from high-brightness 3W LEDs a strong output for such a compact 73mm x 73mm housing.

What voltage systems does this lamp suit?

The 7312BM operates on 9–30V DC, covering virtually all 12V and 24V vehicle and equipment electrical systems with margin above and below standard nominal voltages.
