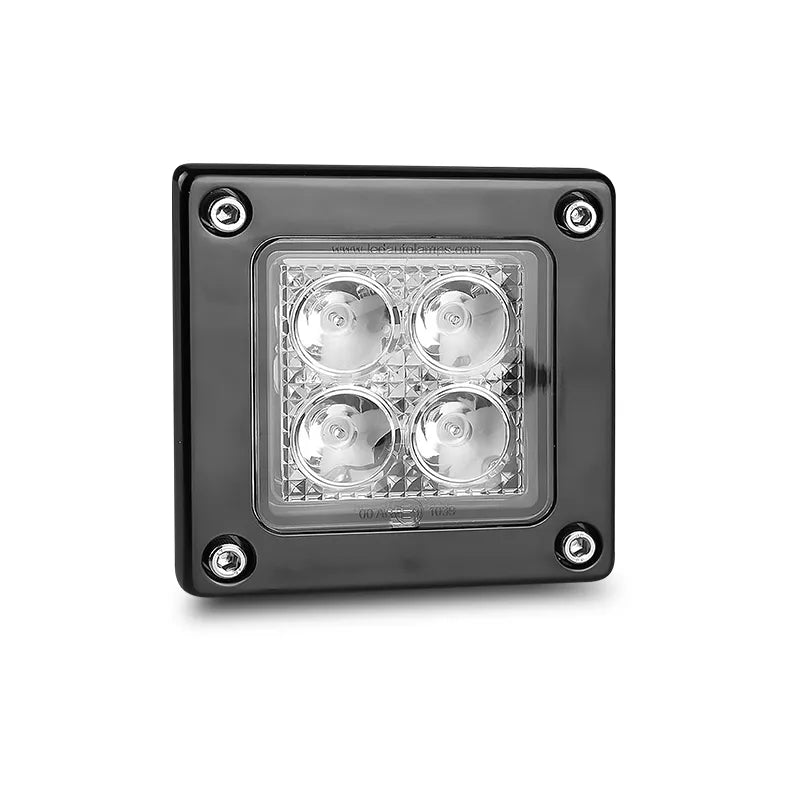

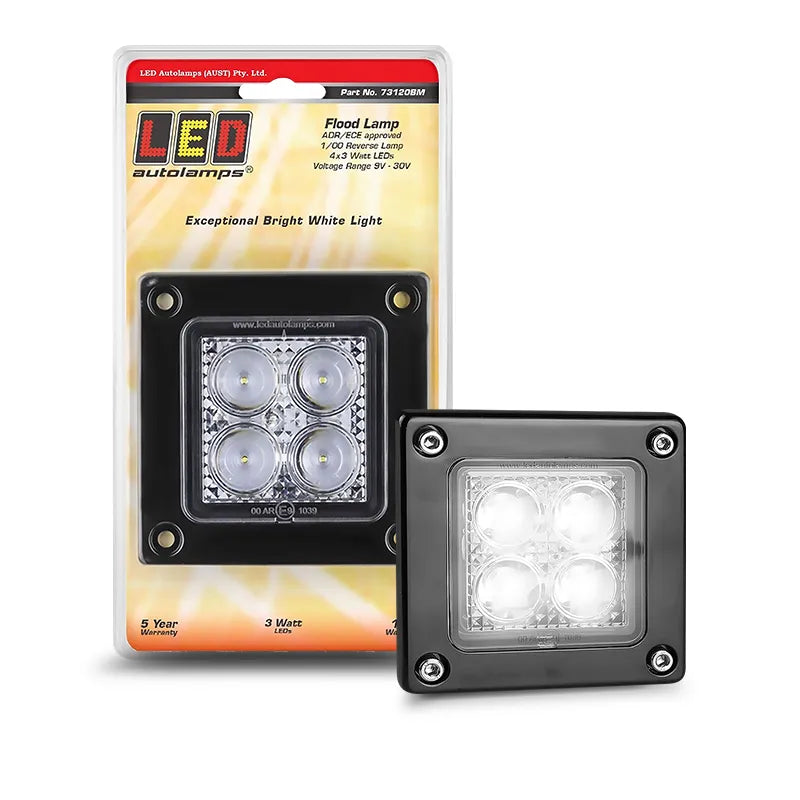

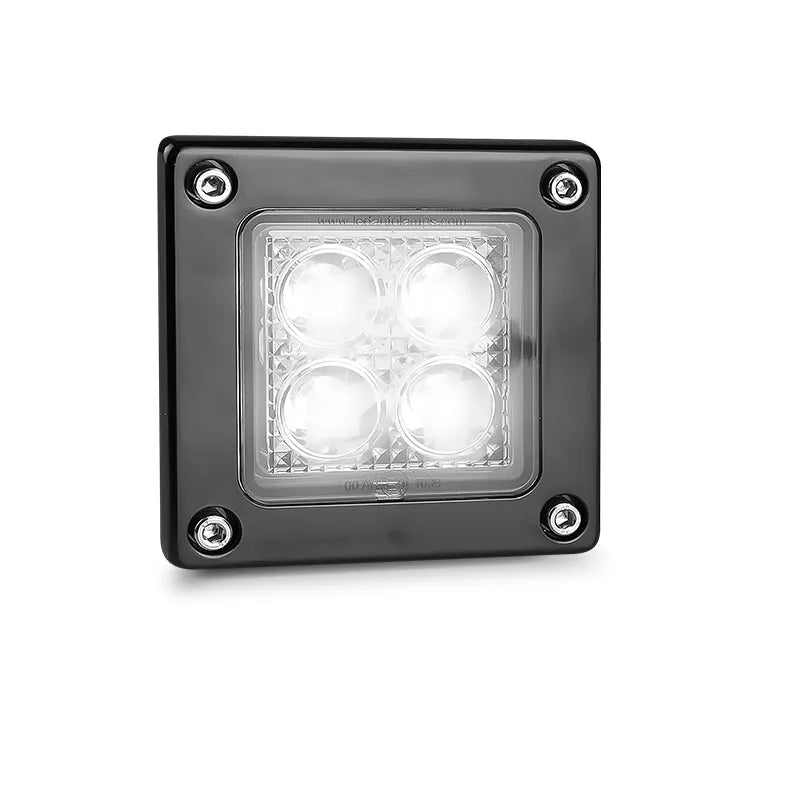

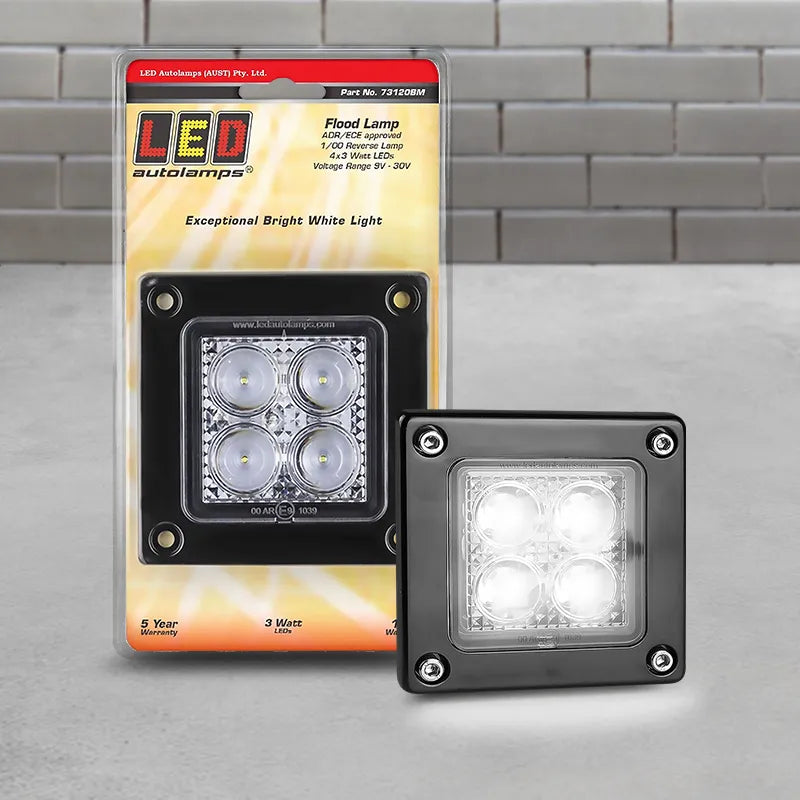

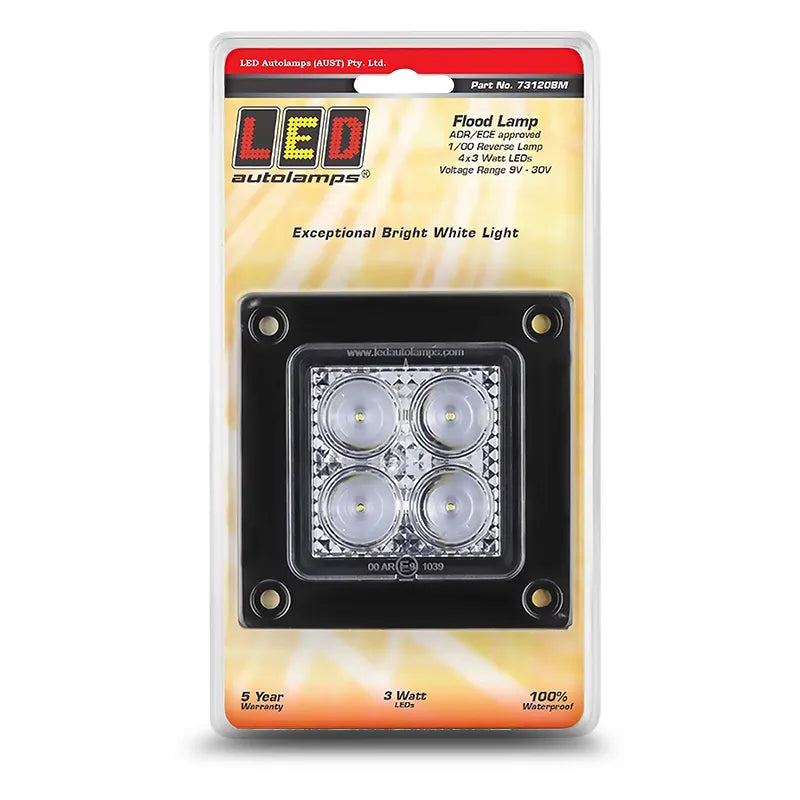

LED Autolamps 73120BM 9/30V Flood/Reverse Lamp Recessed Mount Black E. Coating

Recessed Square Work/Reverse Flood Lamp 4x3W LEDs, 489lm, ECE/ADR 1/00, 9–30V, Black E-Coat.

Product Overview

The LED Autolamps 73120BM is a recessed square work and reverse flood lamp from the 73120 Series a unique recessed mount design that installs flush within a 75mm x 75mm cutout in the vehicle panel or body, with the lamp face sitting at just 5mm above the panel surface. The 73120BM features 4x3W LEDs, 660lm raw / 489lm effective output, ECE R23 approved reverse lamp, 6000K colour temperature, black powder-coated finish, 0.59A at 13.8V / 0.27A at 28V.

The 73120BM delivers exceptional bright white light 660 raw lumens, ECE/ADR approved for 1/00 reverse, 12W recessed flood lamp, 75mm x 75mm cutout, 4x3W high-brightness LEDs, IP67, 9–30V. The black electrophoretic (E-coat) finish provides superior corrosion protection for harsh operating environments. Overall face dimensions 100mm x 100mm x 5mm face depth with 75mm x 75mm recessed cutout

Key Specifications

• Function: Work lamp (flood beam) + reverse lamp (ECE/ADR 1/00)
• LED count: 4 x 3W (12W total)
• Beam type: Flood
• Colour temperature: 6000K
• Lumen output: 489lm effective / 660lm raw
• Overall dimensions: 100mm x 100mm x 5mm (face depth)
• Full installed depth: Approx. 31mm
• Cutout required: 75mm x 75mm
• Finish: Black electrophoretic (E-coat)
• Current draw: 0.59A @ 13.8V / 0.27A @ 28V
• Mount type: Recessed 75mm x 75mm cutout
• IP rating: IP67
• Input voltage: 9–30V DC (multivolt)
• Compliance: ECE/ADR 1/00 (reverse)
• Weight: 0.3kg
• Warranty: 5 years
• Brand: LED Autolamps
• SKU: 73120BM

Features & Benefits

• Unique recessed mount design: Unique recess mounted design installs flush within a 75mm x 75mm panel cutout the lamp face sits just 5mm above the panel surface for a minimal-profile installation
• Black electrophoretic (E-coat) finish: E-coat black powder finish provides superior corrosion resistance compared to standard painted finishes suited to harsh operating environments
• 4x3W LEDs 489lm effective: 12W total LED power for strong flood beam work lamp and reverse illumination
• 6000K cool white: Bright daylight-style output for clear visibility in reversing and work lamp applications
• ECE/ADR 1/00 approved: Legal for reverse lamp use on Australian road vehicles
• 9–30V broad voltage range: Wider than the standard 12–24V range covers peak voltage conditions
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 0.27A @ 28V: Efficient current draw at 24V for commercial applications
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Compatible With

Suits all 9–30V commercial vehicles and trucks requiring a recessed flush-mount work and reverse lamp:

• Trucks and semi-trailers requiring recessed rear work and reverse lighting
• Tail-lift and dock leveller applications
• Commercial vehicle body builders requiring a flush panel installation

Frequently Asked Questions

What cutout size is required for the 73120BM?

The 73120 Series requires a 75mm x 75mm cutout in the mounting surface.

What does the "5mm" dimension refer to?

The 5mm is the lamp face depth how far the lamp face protrudes above the panel surface after installation. The full installed depth is approximately 31mm ensure adequate space behind the panel before cutting.

What is the lumen output?

489lm effective and 660lm raw.

What is the E-coating on the 73120BM?

Electrophoretic coating (E-coat) is an advanced black finishing process providing superior corrosion resistance particularly suited to commercial vehicles operating in harsh environments.
