LED Autolamps 7035W White Reflector With Mounting Bracket

SKU: 7035W
Price
$13
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR/ECE-Compliant White Front Reflectors with Bracket Retail 2-Pack for Trailers and Caravans

Product Overview

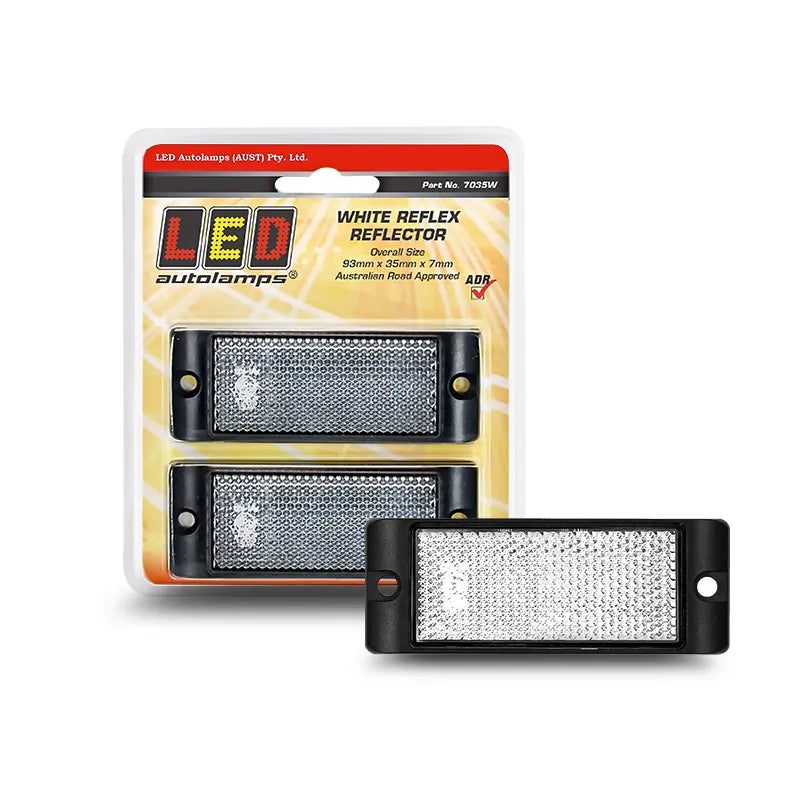

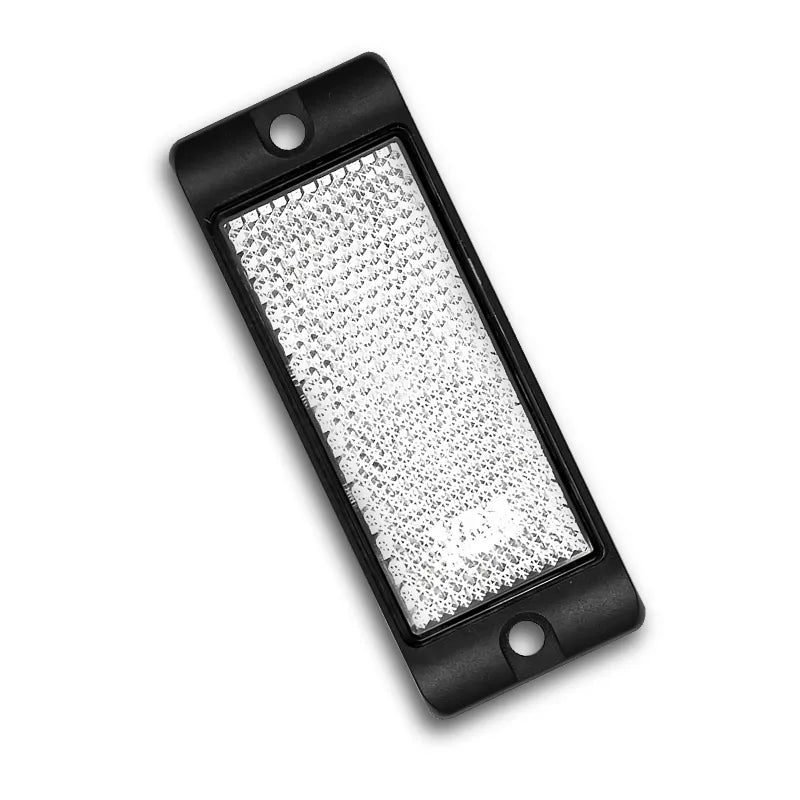

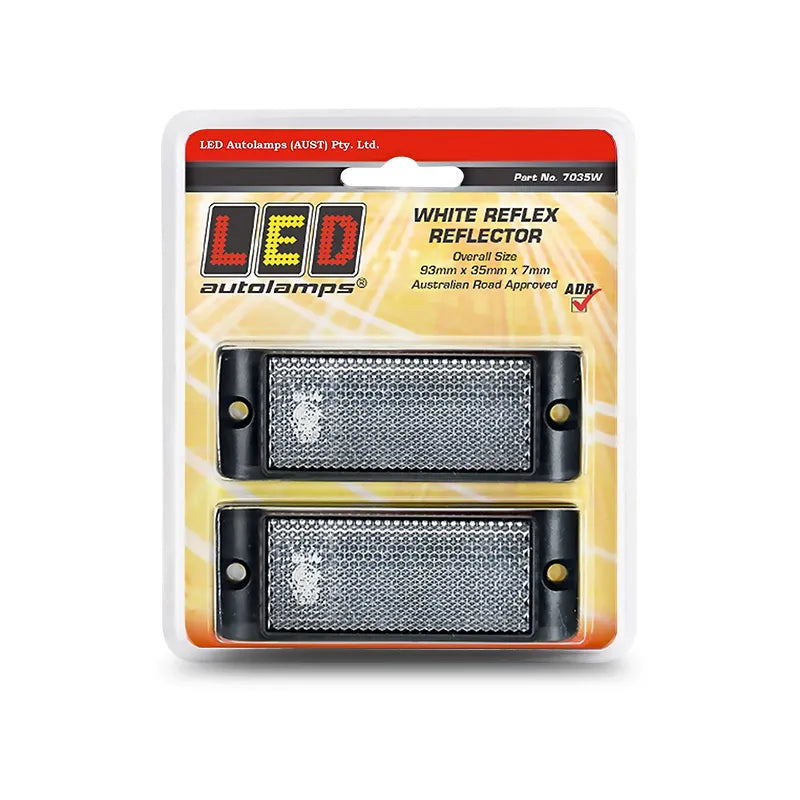

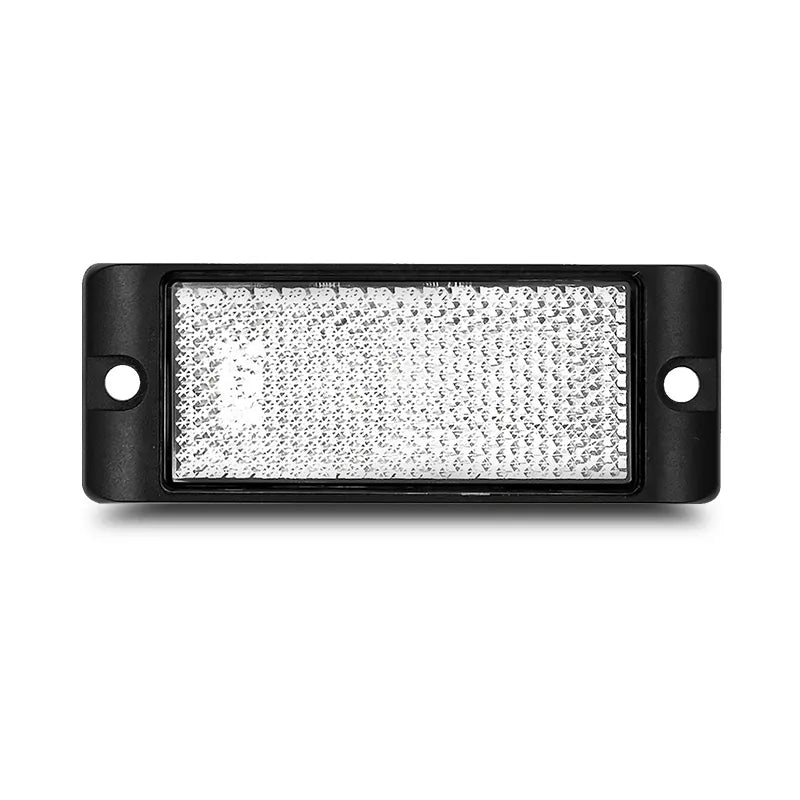

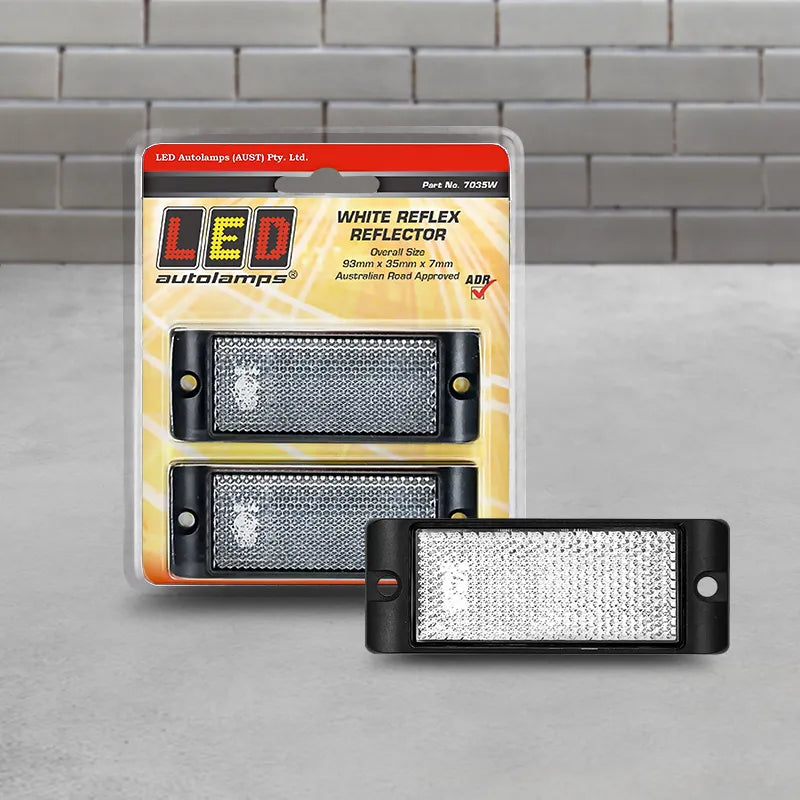

The LED Autolamps 7035W is a retail 2-pack of white (clear) rectangle retroreflectors, each supplied with a mounting bracket for screw-type surface mounting. Carrying both ADR and ECE compliance, the 7035W is the white counterpart to the LED Autolamps 7035AB amber reflector sharing identical 93mm x 35mm x 7mm dimensions and the same bracket-mount design, but in white for front-facing trailer and caravan applications.

White retroreflectors are fitted to the front of trailers, caravans, and heavy vehicles to provide forward-facing retroreflection for oncoming traffic. The included mounting bracket allows the reflector to be positioned on trailer A-frames, chassis rails, and body edges where flush adhesive mounting isn't practical. With two units per pack, the 7035W covers both sides of a trailer front in a single purchase.

Features & Benefits

  • ADR and ECE dual-compliant — meets both Australian Design Rule and ECE international standards for retroreflecting devices; road-legal for use on Australian trailers and vehicles
  • White/clear colour — front-facing use — correct designation for front retroreflectors on trailers and caravans; pairs with the 7035AB amber side reflectors to complete the full reflector colour set on the same bracket-mount platform
  • Mounting bracket included per unit — each reflector comes with its own bracket for screw-type surface mounting on A-frames, chassis rails, and edges where flat adhesion isn't suitable
  • Retail 2-pack — two reflectors and two brackets per purchase; covers both sides of a trailer front in one order
  • 93mm x 35mm x 7mm low-profile design — same footprint as the 7035AB amber variant; consistent positioning and appearance across the full 7035-series reflector range
  • Screw-type fitting — secure mechanical fixing resistant to road vibration, towing loads, and long-distance highway use
  • No wiring required — passive retroreflective device; no electrical connection needed

Technical Specs

Specification Detail
SKU 7035W
Colour White / Clear
Shape Rectangle
Size per unit 93mm (L) x 35mm (W) x 7mm (H)
Mount type Surface mount with bracket (screw fitting)
Bracket included Yes (per unit)
Compliance ADR / ECE
Pack quantity 2 units
Wiring required No
Weight 0.16kg
Warranty Confirm with supplier — see note above

Compatible With / Goes Well With

  • Trailers, caravans, horse floats, and commercial vehicles requiring ADR/ECE-compliant front white retroreflectors
  • Trailer A-frames, chassis rails, and body edges suited to bracket-mount screw fitting
  • Pairs with LED Autolamps 7035AB amber side reflectors (same 93x35mm bracket format) for a complete bracket-mount reflector set
  • Pairs with LED Autolamps 7030WB white self-adhesive reflectors if flat panel adhesion is preferred for the same white front-reflector application

Weight

0.16kg (2-pack)

Frequently Asked Questions

How many reflectors are in the pack?

Two — the 7035W is a retail 2-pack, with each reflector supplied with its own mounting bracket. Two units covers both sides of a single trailer's front reflector positions.

Where on a trailer are white reflectors fitted?

White retroreflectors are used on the front of trailers and caravans to provide forward-facing retroreflection. Red reflectors go on the rear and amber on the sides — the 7035W covers the front white position in the 7035-series bracket-mount format.

What is the difference between the 7035W and the 7035AB?

Both share identical 93mm x 35mm x 7mm dimensions and bracket-mount design. The 7035AB is amber for side reflector positions; the 7035W is white/clear for front reflector positions. They are designed to work together as a complete trailer bracket-mount reflector set.

How is the bracket fitted — does it require drilling?

Yes — the screw-type fitting requires drilling or existing mounting holes in the trailer frame or body. The bracket raises the reflector from the surface for optimal positioning and visibility angle.

What is the warranty on this product?

The features section states a 5-year warranty; however the specification field lists "Manufacturers Defect" as the warranty type, which may indicate coverage is limited to manufacturing defects. Confirm the full warranty scope with LED Autolamps or contact F.A.E. before purchasing.
