LED Autolamps 69WM Front End Outline Marker White 12/24 Volt - 120 x 69 x 20mm - Blister

Retrofit White LED Front End Outline Marker Concealed Mounting Base, No Visible Screws, ADR/ECE Approved.

Product Overview

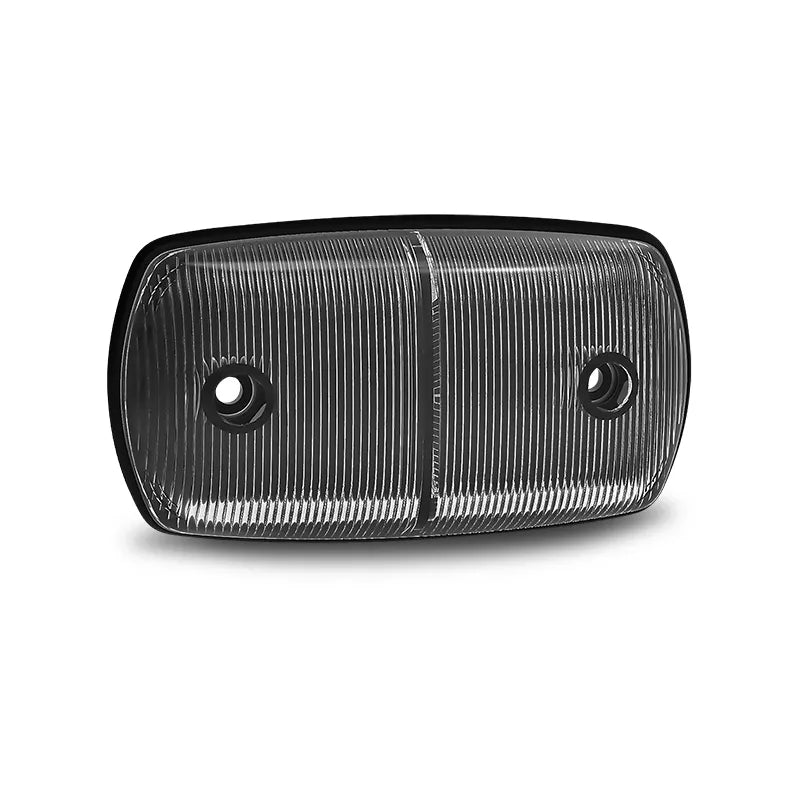

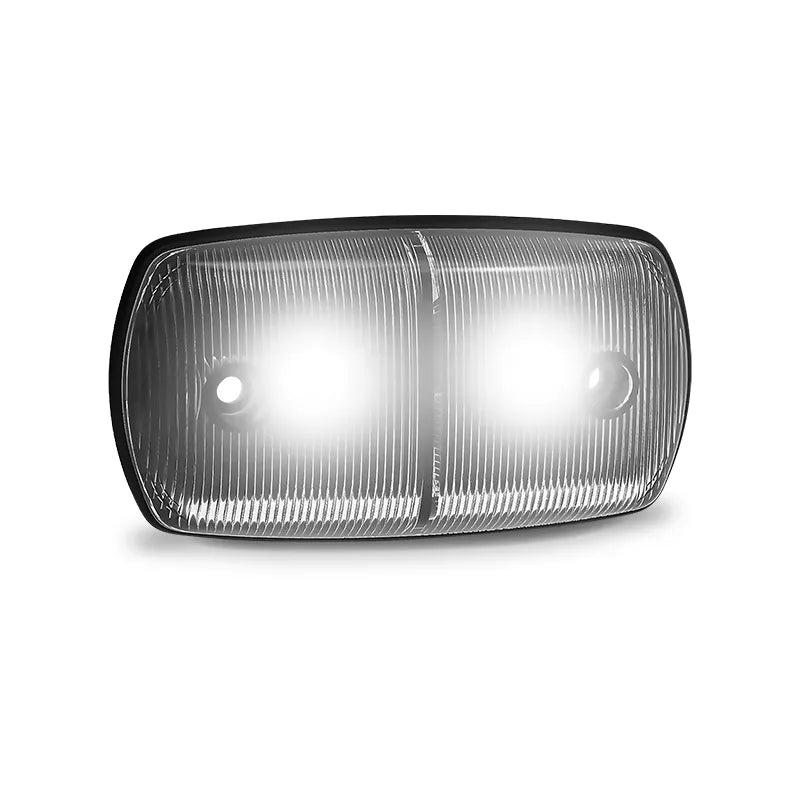

The LED Autolamps 69WM is a white LED front end outline (FEO) marker lamp from the popular 69 Series designed as a retrofit replacement for traditional globe-type marker lamps. The 69 Series features a concealed mounting base with no visible screws, providing a clean, professional finished appearance once installed.

Measuring 120mm x 64mm x 22mm, the 69WM delivers ADR and ECE approved white front end outline marker compliance with a clear lens and internal white LEDs. Current draw is just 0.05A at 13.8V, placing minimal load on the vehicle's electrical system. IP67 rated for complete weatherproof protection and backed by LED Autolamps' 5-year warranty. Supplied as a single unit in blister packaging.

Key Specifications

• Function: White front end outline (FEO) marker retrofit globe replacement design
• LED colour: White
• Lens: Clear
• Dimensions: 120mm x 64mm x 22mm
• Mount type: Concealed mounting base no visible screws
• Current draw: 0.05A @ 13.8V
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR and ECE approved
• Warranty: 5 years

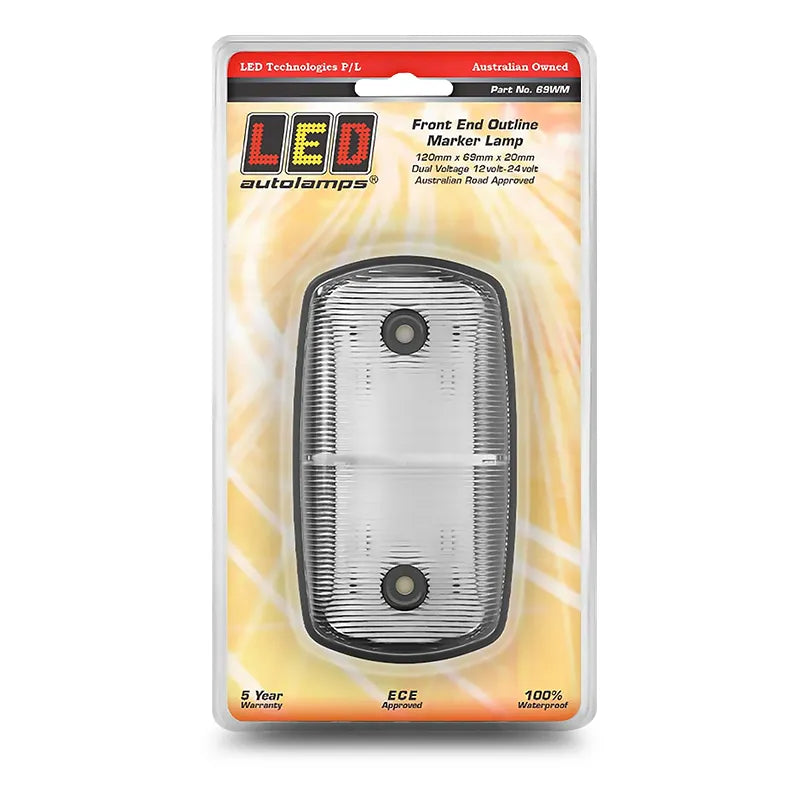

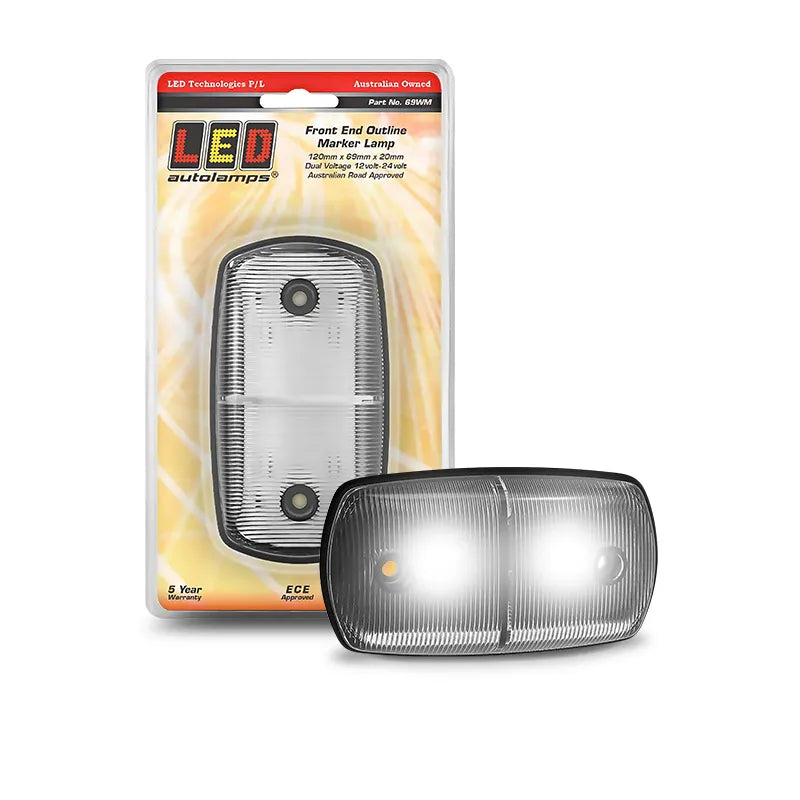

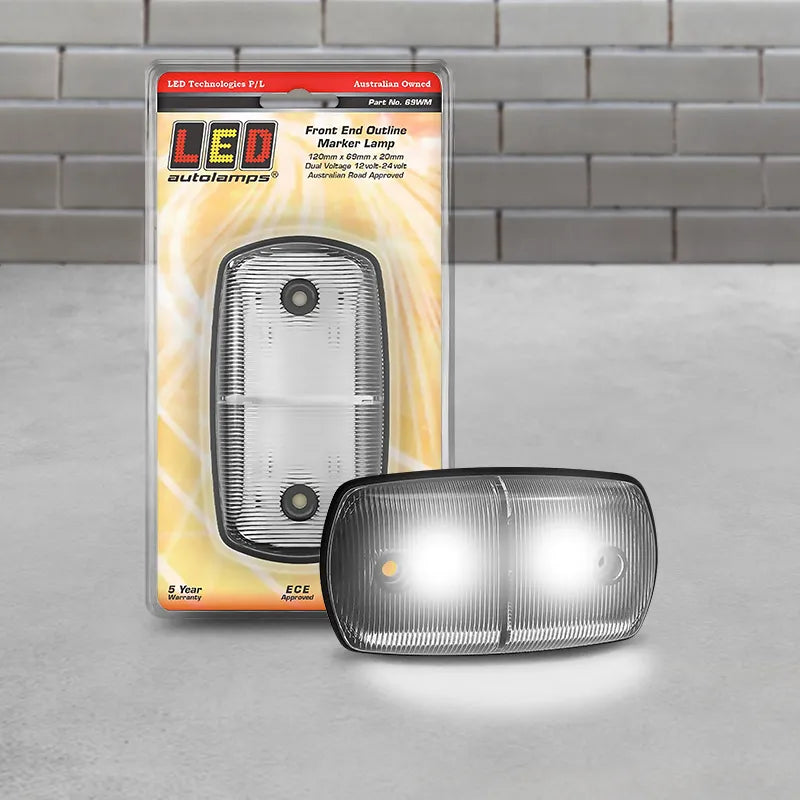

• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 69WM

Features & Benefits

• Retrofit design: Replaces traditional globe-type front end outline marker lamps, providing a straightforward LED upgrade path for existing vehicles and trailers
• Concealed mounting base: The mounting screws are concealed beneath removable screw caps, providing a clean, professional appearance with no visible fasteners once installed
• Clear lens with white LEDs: Modern design maintains colour accuracy and brightness without UV-related discolouration over time
• Ultra-low 0.05A current draw: Minimal load on the vehicle's electrical system, suitable for multi-lamp installations
• ADR and ECE approved: Fully compliant with Australian Design Rules and ECE standards for white front end outline marker use on Australian road vehicles and trailers
• IP67 weatherproof: Completely sealed against dust ingress and temporary water immersion
• 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

Frequently Asked Questions

What does "concealed mounting base" mean for installation?

The mounting screws are hidden beneath removable screw caps. After the lamp is bolted into place, the caps are pushed back into position, concealing all fasteners for a clean, professional finished appearance.

Is this lamp ADR approved for Australian road use?

Yes the 69WM is ADR and ECE approved for white front end outline marker use on Australian road vehicles and trailers.

What is the current draw of this lamp?

The 69WM draws just 0.05A at 13.8V a very low electrical load, suitable for installations with multiple marker lamps on the same circuit.

What are the correct dimensions of this lamp?

The confirmed dimensions are 120mm x 64mm x 22mm, based on the official LED Autolamps 69 Series specification. Some retailer listings show "120 x 69 x 20mm," which appears to be a transposition error.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm mounting requirements before purchasing. Contact the seller if you're unsure prior to purchase.
