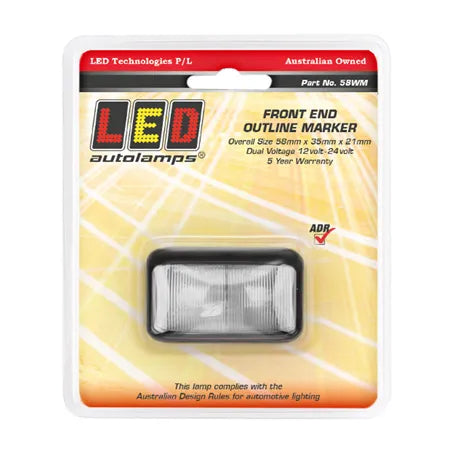

LED Autolamps 58WM 10/30V Front Outline Position Marker 2White LED Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 58WM 10/30V Front Outline Position Marker 2White LED Blister Pack

SKU: 58WM
Price
$25
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 58WM 12-24V White LED Front Outline Position Marker 2 LEDs 58mm x 35mm x 21mm 28mm Mounting Centres Pre-Wired Clip-In Replaceable Lens Black Housing ADR Approved CTA060028 CRN 36842 ADR 49/00 IP67 Budget Range

The LED Autolamps 58WM is a 12-24V white LED front outline position marker with 2 LEDs and clip-in replaceable lens in a 58mm x 35mm x 21mm black housing. 28mm mounting centres, pre-wired, surface mount. ADR approved (CTA060028), CRN 36842, ADR 49/00. IP67 waterproof, 0.05A at 13.8V. Budget range. Five-year warranty. Sold individually.

Product overview

The 58WM is a budget range white LED front outline position marker in the 58 series, suited to trailers, trucks, and commercial vehicles requiring an ADR-compliant front position or outline marker. The 58mm x 35mm x 21mm low-profile black housing with 28mm mounting centres and pre-wired connection suits standard front panel mounting positions. Clip-in replaceable lens. ADR approval CTA060028, CRN 36842, and ADR 49/00 confirm road-legal compliance in Australia. 12-24V compatible. IP67 rated.

Features and benefits

White LED front outline position marker output: ADR-compliant white output for front position and outline marker applications.

2 LEDs.

Clip-in replaceable lens: Lens can be replaced without replacing the full lamp body.

58mm x 35mm x 21mm low-profile housing.

28mm mounting centres.

Pre-wired connection.

Black housing.

Budget range.

ADR approved (CTA060028), CRN 36842, ADR 49/00: Compliant for road use in Australia.

IP67 fully waterproof and submersible.

0.05A current draw at 13.8V.

Surface mount.

12V and 24V compatible.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 58WM
Brand LED Autolamps
Series 58
Type Front outline position marker lamp
Light Type LED
LED Count 2
LED Colour White
Lens Colour Clear
Housing Colour Black
Operating Voltage 12V to 24V
Current Draw 0.05A at 13.8V
Dimensions 58mm x 35mm x 21mm
Mounting Centres 28mm
Connection Pre-wired
Mount Type Surface mount
Lens Clip-in replaceable
Waterproof Rating IP67
ADR Compliance CTA060028, ADR 49/00
CRN 36842
Weight 0.1kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 58WM ADR approved?

Yes. The 58WM holds ADR approval CTA060028, CRN 36842, and ADR 49/00, confirming compliance for road use in Australia as a front outline position marker lamp.

What is the difference between the 58WM and the 58RM?

The 58WM is a white LED front outline position marker with ADR CTA060028 and ADR 49/00 approval. The 58RM is a red LED rear position marker with ADR CTA060029 and ADR 49/00 approval. Both share the same 58mm x 35mm x 21mm black housing, 28mm mounting centres, clip-in lens, and IP67 rating.

What does the budget range designation mean for the 58WM?

Budget range indicates the 58WM is positioned as a cost-effective front outline marker option. It retains ADR approval, IP67 waterproofing, and a five-year warranty.

What voltage does the 58WM operate on?

The 58WM operates on 12V and 24V systems.

Is the 58WM sold as a single unit or a pair?

Sold individually.
