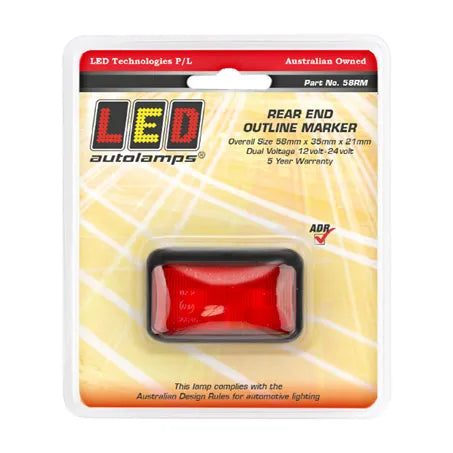

LED Autolamps 58RM 10/30V Rear Position Marker 2 Red LEDs 40cm Wire Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 58RM 10/30V Rear Position Marker 2 Red LEDs 40cm Wire Blister Pack

SKU: 58RM
Price
$19
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 58RM 12-24V Red LED Rear Position Marker 2 LEDs 58mm x 35mm x 21mm 28mm Mounting Centres 40cm Wire Clip-In Replaceable Lens Black Housing ADR Approved CTA060029 CRN 36840 ADR 49/00 IP67 Budget Range

The LED Autolamps 58RM is a 12-24V red LED rear position marker with 2 LEDs, 40cm wire, and clip-in replaceable lens in a 58mm x 35mm x 21mm black housing. 28mm mounting centres. ADR approved (CTA060029), CRN 36840, ADR 49/00. IP67 waterproof, 0.12A at 13.8V. Budget range. Five-year warranty. Sold individually.

Product overview

The 58RM is a budget range red LED rear position marker in the 58 series, suited to trailers, trucks, and commercial vehicles requiring an ADR-compliant rear position marker. The 58mm x 35mm x 21mm low-profile black housing with 28mm mounting centres and 40cm pre-wired connection suits standard rear panel mounting positions. Clip-in replaceable lens. ADR approval CTA060029, CRN 36840, and ADR 49/00 confirm road-legal compliance in Australia. 12-24V compatible. IP67 rated.

Features and benefits

Red LED rear position marker output: ADR-compliant red output for rear position marker applications.

2 LEDs.

Clip-in replaceable lens: Lens can be replaced without replacing the full lamp body.

58mm x 35mm x 21mm low-profile housing.

28mm mounting centres.

40cm wire.

Black housing.

Budget range.

ADR approved (CTA060029), CRN 36840, ADR 49/00: Compliant for road use in Australia.

IP67 fully waterproof and submersible.

0.12A current draw at 13.8V.

Surface mount.

12V and 24V compatible.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 58RM
Brand LED Autolamps
Series 58
Type Rear position marker lamp
Light Type LED
LED Count 2
LED Colour Red
Housing Colour Black
Operating Voltage 12V to 24V
Current Draw 0.12A at 13.8V
Dimensions 58mm x 35mm x 21mm
Mounting Centres 28mm
Cable Length 40cm
Connection Pre-wired
Mount Type Surface mount
Lens Clip-in replaceable
Waterproof Rating IP67
ADR Compliance CTA060029, ADR 49/00
CRN 36840
Weight 0.1kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 58RM ADR approved?

Yes. The 58RM holds ADR approval CTA060029, CRN 36840, and ADR 49/00, confirming compliance for road use in Australia as a rear position marker lamp.

What is the difference between the 58RM and the 58ARM?

The 58RM is a red-only rear position marker with ADR CTA060029 and ADR 49/00 approval. The 58ARM is a red/amber dual-colour side marker with ADR CTA036841 and ADR 45/01 approval. Both share the same 58mm x 35mm x 21mm black housing, 28mm mounting centres, clip-in lens, and IP67 rating.

What does the budget range designation mean for the 58RM?

Budget range indicates the 58RM is positioned as a cost-effective rear position marker option. It retains ADR approval, IP67 waterproofing, and a five-year warranty.

What voltage does the 58RM operate on?

The 58RM operates on 12V and 24V systems.

Is the 58RM sold as a single unit or a pair?

Sold individually.
