LED Autolamps 58CARM 10/30V LED Red Amber Side Marker Chrome 40cm Wire Blister
Click to open expanded view
LED AUTOLAMPS logo

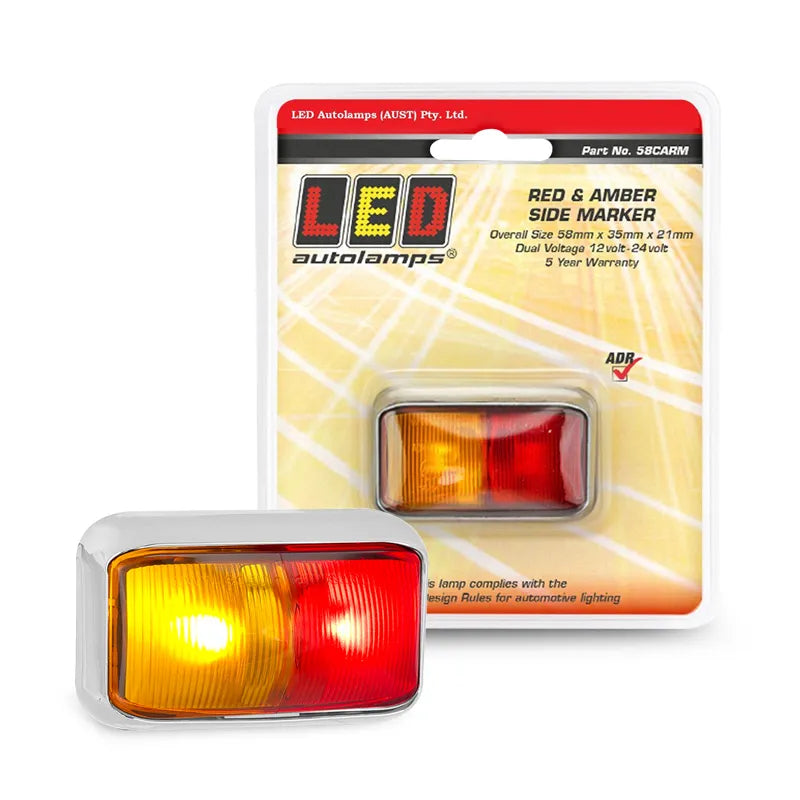

LED Autolamps 58CARM 10/30V LED Red Amber Side Marker Chrome 40cm Wire Blister

SKU: 58CARM
Price
$35
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Red/Amber LED Side Marker Chrome Bracket, 40cm Cable, ADR CRN 36841, 10–30V, Single Blister.

Product Overview

The LED Autolamps 58CARM is a red/amber LED side marker lamp from the budget 58 Series the chrome bracket, 40cm cable, single blister pack version. The standard retail edition of the 58 Series chrome red/amber marker, this is the go-to individual purchase for applications requiring a chrome bracket red/amber side marker with a standard cable length.

Sharing the same 2 LED, 58mm x 35mm x 21mm 58 Series form factor, ADR approval (CRN 36841), and clip-in replaceable lens as all other 58 Series red/amber variants, the 58CARM is the chrome version of the popular 58ARM (black bracket). IP67 rated, 10–30V multivolt, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit in blister packaging.

Key Specifications

  • Function: Red/amber side marker
  • LED count: 2
  • LED colour: Red and amber
  • Bracket: Chrome
  • Lens: Clear clip-in replaceable
  • Dimensions: 58mm x 35mm x 21mm
  • Cable: 40cm
  • Mount type: Surface mount bracket clip-in lens
  • IP rating: IP67
  • Input voltage: 10–30V DC (multivolt)
  • ADR compliance: CRN 36841
  • Warranty: 5 years
  • Pack quantity: Single unit blister pack
  • Brand: LED Autolamps
  • SKU: 58CARM

Features & Benefits

  • Chrome bracket: Classic chrome finish for traditional trailer and truck builds; the black bracket version is the 58ARM
  • Red and amber dual colour: Single lamp provides both red and amber side marker output
  • 2 LEDs: Clear lens with 2 internal red/amber LEDs
  • Clip-in replaceable lens: Easy lens swap without removing the bracket
  • 40cm cable: Standard cable length for most mounting locations
  • Budget 58 Series: Cost-effective ADR-compliant side marker at an accessible price point
  • ADR approved CRN 36841: Legal for red/amber side marker use on Australian road vehicles
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 10–30V multivolt: Covers 12V and 24V systems
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 58CARM
Brand LED Autolamps
Series 58 Series
Function Red/Amber Side Marker
LED Count 2
LED Colour Red and Amber
Bracket Chrome
Lens Clear clip-in replaceable
Dimensions 58mm x 35mm x 21mm
Cable Length 40cm
Mount Type Surface mount bracket clip-in lens
IP Rating IP67
Input Voltage 10–30V DC (multivolt)
ADR Compliance CRN 36841
Warranty 5 Years
Pack Quantity Single unit blister pack

Compatible With

Suits all 10–30V trailers, caravans, and commercial vehicles requiring red/amber ADR-compliant side markers:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks
  • Agricultural and construction trailers

Frequently Asked Questions

What is the difference between the 58CARM and the 58ARM?

Both are identical red/amber side markers in the 58 Series the 58CARM has a chrome bracket while the 58ARM has a black bracket. Both come in single blister packs with 40cm cables.

What is the difference between the 58CARM and the 58CARMB?

Both are chrome bracket, 40cm cable red/amber markers. The 58CARM is a single retail blister pack while the 58CARMB is a single bulk unit without retail packaging.

Is this lamp ADR approved?

Yes the 58CARM is ADR approved under CRN 36841 for red/amber side marker use on Australian road vehicles and trailers.

What is the voltage range?

The 58CARM operates on 10–30V DC, covering 12V and 24V systems and beyond.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
