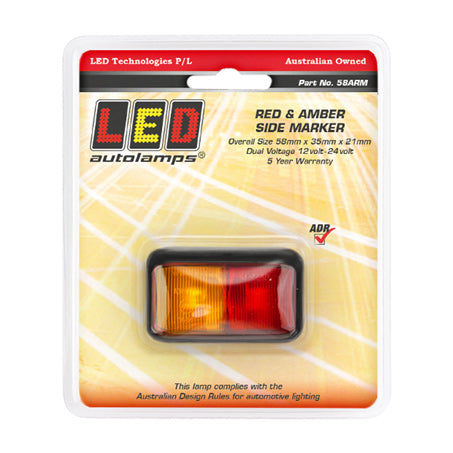

LED Autolamps Red & Amber Side Marker in blister packaging, with the product visible in a black housing with a red/amber light cover.
LED Autolamps Red & Amber Side Marker in blister packaging, with the product visible in a black housing with a red/amber light cover.
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 58ARM 10/30V Side Marker Red Amber Blister Pack

SKU: 58ARM
Price
$18
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 58ARM 12-24V Red and Amber LED Side Marker 58mm x 35mm x 21mm 28mm Mounting Centres Pre-Wired Clip-In Replaceable Lens Black Housing ADR Approved CTA036841 CRN 36841 ADR 45/01 IP67 Budget Range

The LED Autolamps 58ARM is a 12-24V red/amber LED side marker in a 58mm x 35mm x 21mm black housing. 28mm mounting centres, pre-wired, clip-in replaceable lens, surface mount. ADR approved (CTA036841), CRN 36841, ADR 45/01. IP67 waterproof, 0.1A at 13.8V. Budget range. Five-year warranty. Sold individually.

Product overview

The 58ARM is a budget range red/amber side marker in the 58 series, suited to trailers, trucks, and commercial vehicles requiring an ADR-compliant dual-colour side marker. The 58mm x 35mm x 21mm low-profile black housing with 28mm mounting centres and pre-wired connection suits standard side panel mounting positions. The clip-in replaceable lens allows lens replacement without replacing the full lamp. ADR approval CTA036841, CRN 36841, and ADR 45/01 confirm road-legal compliance in Australia. 12-24V compatible. IP67 rated.

Features and benefits

Red and amber dual-colour side marker output: ADR-compliant for side marker applications.

Clip-in replaceable lens: Lens can be replaced without replacing the full lamp body.

58mm x 35mm x 21mm low-profile housing.

28mm mounting centres.

Pre-wired connection.

Black housing.

Budget range.

ADR approved (CTA036841), CRN 36841, ADR 45/01: Compliant for road use in Australia.

IP67 fully waterproof and submersible.

0.1A current draw at 13.8V.

Surface mount.

12V and 24V compatible.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 58ARM
Brand LED Autolamps
Series 58
Type Side marker lamp
Light Type LED
LED Colours Red and amber
Housing Colour Black
Operating Voltage 12V to 24V
Current Draw 0.1A at 13.8V
Dimensions 58mm x 35mm x 21mm
Mounting Centres 28mm
Connection Pre-wired
Mount Type Surface mount
Lens Clip-in replaceable
Waterproof Rating IP67
ADR Compliance CTA036841, ADR 45/01
CRN 36841
Weight 0.1kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 58ARM ADR approved?

Yes. The 58ARM holds ADR approval CTA036841, CRN 36841, and ADR 45/01, confirming compliance for road use in Australia as a side marker lamp.

What is the difference between the 58ARM and the 58AM?

The 58ARM is a red/amber dual-colour side marker. The 58AM is an amber-only side direction indicator. Both share the same 58mm x 35mm x 21mm black housing, 28mm mounting centres, ADR CTA060030 (58AM) and CTA036841 (58ARM) approvals, clip-in lens, and IP67 rating.

What does the budget range designation mean for the 58ARM?

Budget range indicates the 58ARM is positioned as a cost-effective side marker option. It retains ADR approval, IP67 waterproofing, and a five-year warranty.

What voltage does the 58ARM operate on?

The 58ARM operates on 12V and 24V systems.

Is the 58ARM sold as a single unit or a pair?

Sold individually.
