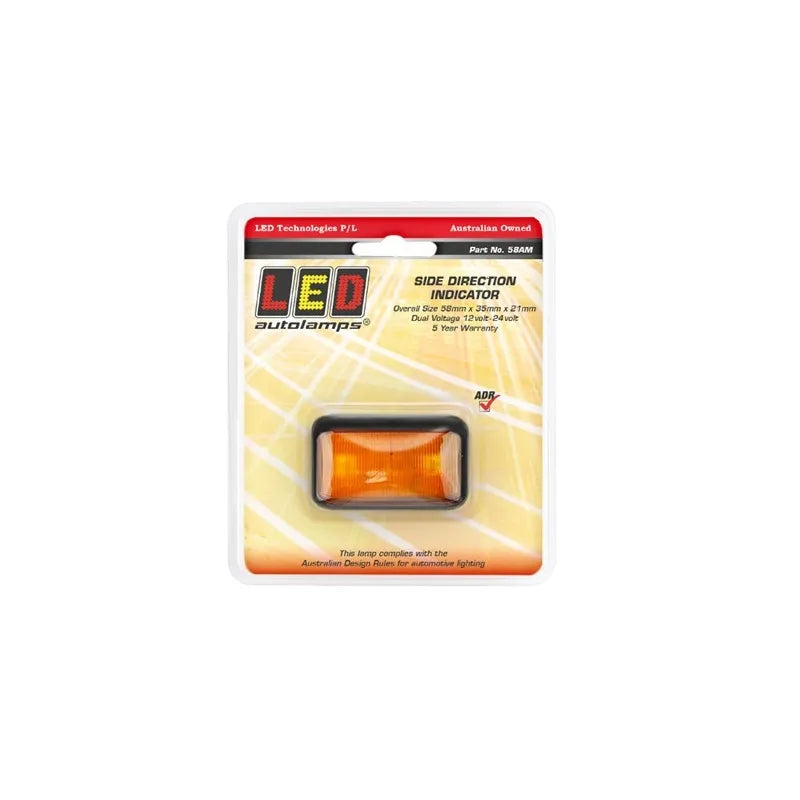

LED Autolamps 58AM 10/30V Side Direction Indicator In Blister Pack With 3 LEDs
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 58AM 10/30V Side Direction Indicator In Blister Pack With 3 LEDs

SKU: 58AM
Price
$18
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 12/24V Side Direction Indicator 3 LEDs, Clip-In Replaceable Lens, IP67

Product Overview

The LED Autolamps 58AM is a 12/24V amber side direction indicator lamp with 3 LEDs and a clip-in replaceable lens, measuring 58mm x 35mm x 21mm in a black housing with a 28mm centre-to-centre mount. The same compact form factor as the 58ARM, it is purpose-built for side indicator use and approved under CRN38277 and ADR 6/00.

Pre-wired, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

  • 3 LED amber indicator output — clean, compliant amber side direction indicator function
  • Clip-in replaceable lens — lens swaps independently without removing the full lamp housing from the panel
  • Compact 58mm x 35mm form factor — low-profile surface mount suits a wide range of trailer and truck body side positions
  • ADR approved — certified under CRN38277 and ADR 6/00 for legal on-road use as a side direction indicator
  • IP67 rated — fully sealed against dust and water immersion
  • Pre-wired — ready to connect on installation
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 58AM
Lamp Type Side Direction Indicator
LED Quantity 3
LED Colour Amber
Housing Colour Black
Voltage Range 12V / 24V
Dimensions 58mm x 35mm x 21mm
Mount Centre-to-Centre 28mm
Current Draw 0.1A @ 13.8V
Lens Clip-in replaceable
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Compliance ADR 6/00 — CRN38277
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring side direction indicator lamps
  • 12V light vehicles and 24V heavy transport applications
  • LED Autolamps 58ARM red/amber side marker (same 58mm x 35mm form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 58AM approved for road use in Australia?

Yes. The 58AM is ADR approved under CRN38277 and ADR 6/00, meeting Australian Design Rules requirements for legal on-road use as a side direction indicator lamp.

How does the 58AM differ from the 58ARM?

The 58AM is an amber-only side direction indicator certified under ADR 6/00, while the 58ARM is a red/amber dual-colour side marker certified under ADR 45/01. Both share the same 58mm x 35mm x 21mm form factor, clip-in lens, and 0.1A current draw.

What does the clip-in lens mean for maintenance?

The lens clips out independently, allowing replacement without removing the full lamp housing — reducing maintenance time and cost.

What is the IP rating on the 58AM?

The 58AM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.

What warranty does the 58AM carry?

The 58AM is backed by a 5-year warranty from LED Autolamps.
