Product features

Round Chrome Stop/Tail Lamp American Style Design, 12/24V, ADR Approved, Clip-On Bezel.

Product Overview

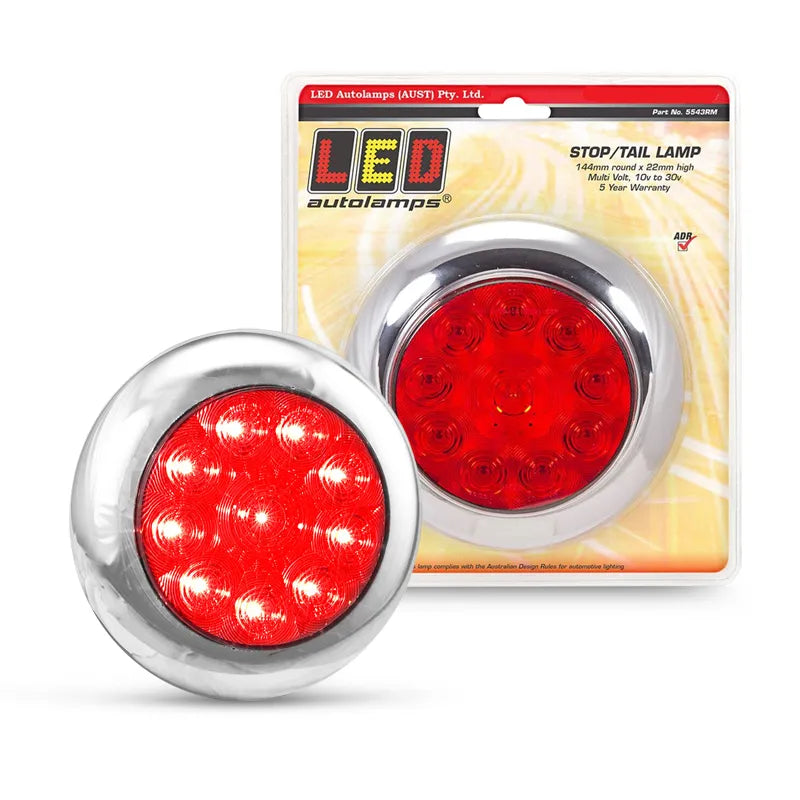

The LED Autolamps 5543RM is a multivolt 12/24V round stop/tail lamp from the 5543 Series featuring an American-style round design with a chrome clip-on bezel. The 5543RM is a round stop, tail light with chrome bezel, screw mount, clip-on bezel, shock, dust, and water proof ADR approved, multi-volt 12V & 24V.

Measuring 144mm round x 22mm deep, the 5543 Series uses a remove-bezel-and-surface-mount installation remove the bezel, surface mount to a flat surface with screws, clip the bezel back into place. ADR stop/tail compliance under CRN 45130 (ADR 49/00) and CTA-060270. The companion amber indicator lamp is the 5543AM. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.

Key Specifications

  • Function: Stop and tail
  • Bezel: Chrome clip-on
  • Dimensions: 144mm round x 22mm
  • Mount type: Screw mount remove bezel, fix screws, clip bezel back
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • ADR compliance: CRN 45130 (ADR 49/00), CTA-060270
  • Warranty: 5 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 5543RM

Features & Benefits

  • American style round design: Classic round lamp format popular on tray vehicles, horse floats, and traditional trailer builds
  • Multivolt 12/24V: Compatible with both 12V and 24V vehicle electrical systems unlike the 5543W (12V only)
  • Chrome clip-on bezel: Premium chrome surround clips over the lamp after mounting for a clean, professional appearance
  • Screw mount: Remove bezel, screw fix to flat surface, clip bezel back for a concealed-fastener finish
  • ADR approved CRN 45130, CTA-060270: Dual ADR compliance for stop/tail use on Australian road vehicles and trailers
  • IP67 weatherproof: Shock, dust, and waterproof
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 5543RM
Brand LED Autolamps
Series 5543 Series
Function Stop and Tail
Bezel Chrome clip-on
Dimensions 144mm round x 22mm
Mount Type Screw mount remove bezel, fix, clip bezel back
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance CRN 45130 (ADR 49/00), CTA-060270
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Suits all 12V and 24V trailers, caravans, and vehicles requiring a round chrome stop/tail lamp:

  • American-style tray vehicles and ute builds
  • Horse floats and livestock trailers
  • Caravans and camper trailers
  • Traditional trailer builds using round lamp formats

Frequently Asked Questions

Does this lamp include an indicator/turn function?

No the 5543RM is stop and tail only. The supplier title incorrectly includes "Turn." For the indicator/turn function, refer to the 5543AM.

Is this lamp 12V or 24V?

The 5543RM is multivolt 12V & 24V unlike the 5543W which is 12V only. Confirm your vehicle's voltage before purchasing.

What are the ADR compliance codes for this lamp?

CRN 45130 (ADR 49/00) and CTA-060270.

How does the clip-on bezel work?

Remove the chrome bezel, surface mount the lamp to a flat surface with screws, then clip the bezel back into place to conceal all mounting hardware.
