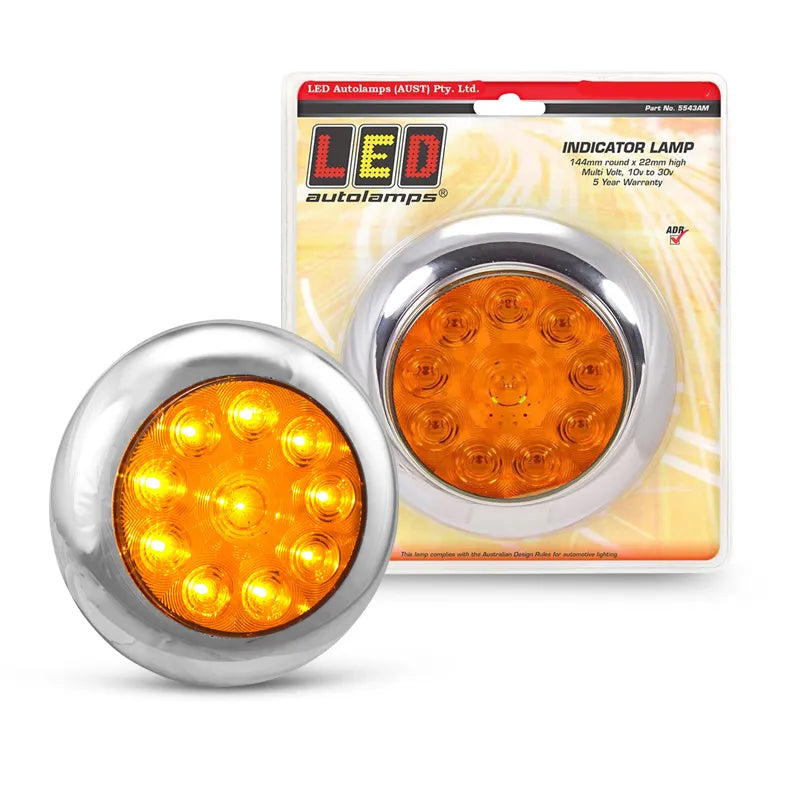

LED Autolamps 5543AM 12/24V Indicator Amber Round
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 5543AM 12/24V Indicator Amber Round

SKU: 5543AM
Price
$92
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Round Chrome Amber Indicator Lamp American Style Design, 12/24V, ADR Approved, Clip-On Bezel.

Product Overview

The LED Autolamps 5543AM is a 12/24V round amber indicator lamp from the 5543 Series the amber indicator completing the 5543 Series range alongside the 5543RM (stop/tail, 12/24V) and 5543W (reverse, 12V only). The 5543AM is an American style round indicator light with chrome bezel, screw mount, clip-on bezel, shock, dust, and water proof ADR approved, multi-volt 12V & 24V.

ADR indicator compliance under CRN 45129 and CTA-060244. Measuring 144mm round x 22mm, the 5543AM shares the same proven American-style round form factor, chrome clip-on bezel, and screw mount installation as the rest of the 5543 Series. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

Key Specifications

  • Function: Amber indicator
  • Bezel: Chrome clip-on
  • Dimensions: 144mm round x 22mm
  • Mount type: Screw mount remove bezel, fix screws, clip bezel back
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • ADR compliance: CRN 45129, CTA-060244
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 5543AM

Features & Benefits

  • American style round design: Classic round lamp format popular on tray vehicles, horse floats, and traditional trailer builds
  • Amber indicator: Dedicated amber indicator output for standard direction indicator compliance
  • Multivolt 12/24V: Compatible with both 12V and 24V vehicle electrical systems
  • Chrome clip-on bezel: Premium chrome surround clips over the lamp after mounting for a clean, professional appearance with no visible fasteners
  • ADR approved CRN 45129, CTA-060244: Dual ADR compliance for amber indicator use on Australian road vehicles and trailers
  • IP67 weatherproof: Shock, dust, and waterproof
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 5543AM
Brand LED Autolamps
Series 5543 Series
Function Amber Indicator
Bezel Chrome clip-on
Dimensions 144mm round x 22mm
Mount Type Screw mount remove bezel, fix, clip bezel back
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance CRN 45129, CTA-060244
Warranty 5 Years

Compatible With

Suits all 12V and 24V trailers, caravans, and vehicles requiring a round chrome amber indicator:

  • American-style tray vehicles and ute builds
  • Horse floats and livestock trailers
  • Caravans and camper trailers
  • Traditional trailer builds using round lamp formats

Frequently Asked Questions

What ADR compliance codes does the 5543AM have?

The 5543AM is ADR approved under CRN 45129 and CTA-060244 for amber indicator use on Australian road vehicles and trailers.

How does the clip-on bezel work?

Remove the chrome bezel, surface mount the lamp to a flat surface with screws, then clip the bezel back into place to conceal all mounting hardware for a clean, professional finish.

What is the difference between the 5543AM and the 5543RM?

The 5543AM is an amber indicator while the 5543RM is a stop/tail lamp. Both share the same 144mm round chrome bezel form factor and 12/24V multivolt operation.

Is this lamp compatible with both 12V and 24V systems?

Yes the 5543AM is multi-volt 12V & 24V.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
