LED Autolamps 530R12 Stop/Tail Light 16 LED 12V Low Profile Surface Mount
Click to open expanded view
LED AUTOLAMPS logo

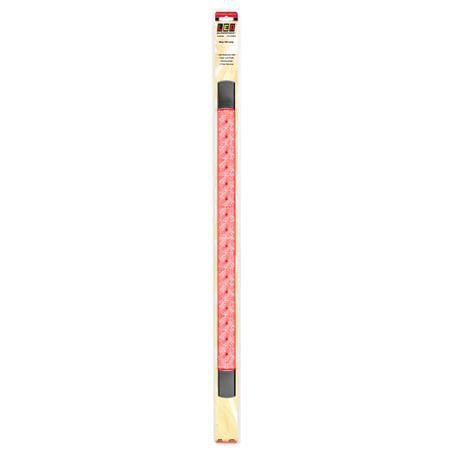

LED Autolamps 530R12 Stop/Tail Light 16 LED 12V Low Profile Surface Mount

SKU: 530R12
Price
$102
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V 530mm Slimline Stop/Tail Lamp 16 LEDs, ADR 49/00 CRN 49766, Black Caps, IP67.

Product Overview

The LED Autolamps 530R12 is a 12V slimline stop/tail lamp from the 530 Series the red lens version with polycarbonate lens and base, 16 LEDs, and black end caps. Measuring 530mm x 25mm x 10mm with 514mm centre-to-centre bolt spacing, the 530R12 provides wide-coverage stop and tail illumination on trucks, tray vehicles, caravans, and large trailer rear panels.

Drawing 0.29A (stop) and 0.02A (tail) at 13.8V, ADR approved under ADR 49/00 CRN 49766, IP67 rated, and supplied with a 30cm cable. Surface mount remove end caps, fix to flat surface with screws supplied, refit end caps. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

Key Specifications

  • Function: Stop and tail
  • LED count: 16
  • Lens material: Polycarbonate
  • Base material: Polycarbonate
  • End caps: Black
  • Dimensions: 530mm x 25mm x 10mm
  • Centre-to-centre mounting: 514mm
  • Cable: 30cm
  • Current draw: Stop 0.29A / Tail 0.02A @ 13.8V
  • Mount type: Surface mount remove end caps, screw fix, refit caps
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: ADR 49/00 CRN 49766
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 530R12

Features & Benefits

  • 16 LEDs: 16 red LEDs through a polycarbonate lens for bright, consistent stop and tail output across 530mm
  • ADR 49/00 CRN 49766: Dual compliance codes confirming legal stop and tail use on Australian road vehicles and trailers
  • 530mm long format: Wide-coverage illumination for large rear panels on trucks, tray vehicles, and trailers
  • Black polycarbonate end caps: Concealed-screw system with clip-back end caps for a clean, professional finish
  • Low 0.02A tail current draw: Extremely efficient tail function at just 0.02A
  • 30cm cable: Pre-wired for standard installation configurations
  • 514mm centre-to-centre mounting: Wide bolt spacing for stable installation on large rear panels
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V only: Direct 12V compatibility for trailers, caravans, trucks, and tray vehicles
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 530R12
Brand LED Autolamps
Series 530 Series
Function Stop and Tail
LED Count 16
Lens Material Polycarbonate
Base Material Polycarbonate
End Caps Black
Dimensions 530mm x 25mm x 10mm
Centre-to-Centre Mounting 514mm
Cable Length 30cm
Current Draw Stop 0.29A @ 13.8V
Current Draw Tail 0.02A @ 13.8V
Mount Type Surface mount remove end caps, screw fix, refit caps
IP Rating IP67
Input Voltage 12V only
ADR Compliance ADR 49/00 CRN 49766
Warranty 5 Years

Compatible With

Suits 12V trucks, tray vehicles, caravans, and large trailers:

  • Large tray ute and truck rear panels
  • Caravans and camper trailers
  • Commercial trailer rear walls

Frequently Asked Questions

What is the difference between the 530R12 and the 530RC12B?

Both are 12V 530mm stop/tail lamps. The 530R12 has a polycarbonate red coloured lens while the 530RC12B has a clear lens with internal red LEDs. Both have black end caps and 514mm centre-to-centre mounting.

What are the current draw figures for this lamp?

Stop: 0.29A and Tail: 0.02A both at 13.8V. The tail function is extremely efficient at just 0.02A.

What is the ADR compliance code?

ADR 49/00 CRN 49766. Both codes confirmed from supplier specifications.

What are the centre-to-centre bolt spacing dimensions?

514mm confirm this suits your rear panel mounting points before purchasing.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure.
