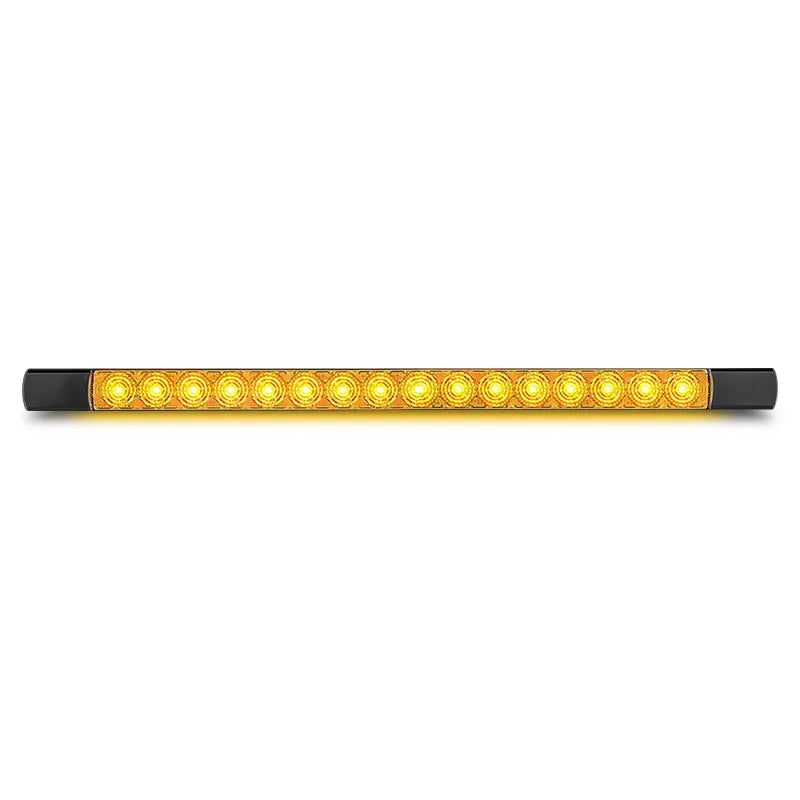

LED Autolamps 530AC12B Indicator Lamp 12 Volt 533Mm X 25Mm
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 530AC12B Indicator Lamp 12 Volt 533Mm X 25Mm

SKU: 530AC12B
Price
$103
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V 530mm Slimline Indicator Lamp Clear Lens, 16 LEDs, ADR 6/00 CRN 49764, IP67.

Product Overview

The LED Autolamps 530AC12B is a 12V amber indicator lamp from the 530 Series the clear lens version with internal amber LEDs, distinct from the 530A12 (coloured amber lens). The "C" in the SKU confirms clear lens with internal amber LEDs consistent with the clear lens naming convention across the 530 Series (530RC12B for stop/tail).

The 530 Series indicator has 16 LEDs, a 300mm cable, draws 0.33A at 13.8V, and is ADR 6/00 approved under CRN 49764 and CTA-049764. Measuring 530mm x 25mm x 10mm with 514mm centre-to-centre bolt spacing and black end caps. Surface mount remove end caps, fix with screws, refit caps. IP67 rated, backed by LED Autolamps' 5-year warranty. Supplied as a single unit.

Key Specifications

  • Function: Amber indicator
  • LED count: 16
  • Lens: Clear with internal amber LEDs
  • End caps: Black
  • Dimensions: 530mm x 25mm x 10mm
  • Centre-to-centre mounting: 514mm
  • Cable: 30cm
  • Current draw: 0.33A @ 13.8V
  • Mount type: Surface mount remove end caps, screw fix, refit caps
  • IP rating: IP67
  • Input voltage: 12V only
  • Compliance: ADR 6/00 CRN 49764 / CTA-049764
  • Warranty: 5 years
  • Brand: LED Autolamps
  • SKU: 530AC12B

Features & Benefits

  • Clear lens with internal amber LEDs: Modern clean lens appearance with internal amber LEDs the clear lens alternative to the coloured lens 530A12
  • 16 LEDs: 16 amber LEDs deliver bright, consistent indicator output across 530mm
  • ADR 6/00 CRN 49764: Certified for indicator use on Australian road vehicles and trailers
  • 530mm long format: Wide-coverage indicator illumination for large rear panels
  • Black end caps: Concealed-screw system for a clean, professional finish
  • 0.33A current draw: Moderate electrical load consistent with the 530 Series indicator specification
  • 514mm centre-to-centre mounting: Wide bolt spacing for stable installation
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V only: Direct 12V compatibility
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 530AC12B
Brand LED Autolamps
Series 530 Series
Function Amber Indicator
LED Count 16
Lens Clear internal amber LEDs
End Caps Black
Dimensions 530mm x 25mm x 10mm
Centre-to-Centre Mounting 514mm
Cable Length 30cm
Current Draw 0.33A @ 13.8V
Mount Type Surface mount remove end caps, screw fix, refit caps
IP Rating IP67
Input Voltage 12V only
ADR Compliance ADR 6/00 CRN 49764 / CTA-049764
Warranty 5 Years

Compatible With

Suits 12V trucks, tray vehicles, caravans, and large trailers:

  • Large tray ute and truck rear panels requiring a dedicated indicator lamp
  • Caravans and camper trailers
  • Commercial trailer rear walls using the 530 Series format

Frequently Asked Questions

What is the difference between the 530AC12B and the 530A12?

Both are 12V 530mm amber indicator lamps. The 530AC12B has a clear lens with internal amber LEDs while the 530A12 has a traditional coloured amber lens. Both share the same LED count, mounting, and ADR compliance.

Is this lamp ADR approved for Australian road use?

Yes ADR 6/00 approved under CRN 49764 and CTA-049764 for amber indicator use on Australian road vehicles and trailers.

What is the current draw?

0.33A at 13.8V.

What does the "C" in the SKU mean?

"C" indicates a clear lens with internal coloured LEDs consistent with the 530RC12B (clear stop/tail) and 530AC12B (clear indicator) naming convention in the 530 Series.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm 12V compatibility before purchasing. Contact the seller if you're unsure.
