LED Autolamps 520ARWMRCSB 520 Multivolt Stop/Tail/Indicator/Rev Right Hand Side
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 520ARWMRCSB 520 Multivolt Stop/Tail/Indicator/Rev Right Hand Side

SKU: 520ARWMRCSB
Price
$417
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

520 Series RHS Sequential Stop/Tail/Indicator/Reverse Diffused Tail, ECE Approved, 12/24V.

Product Overview

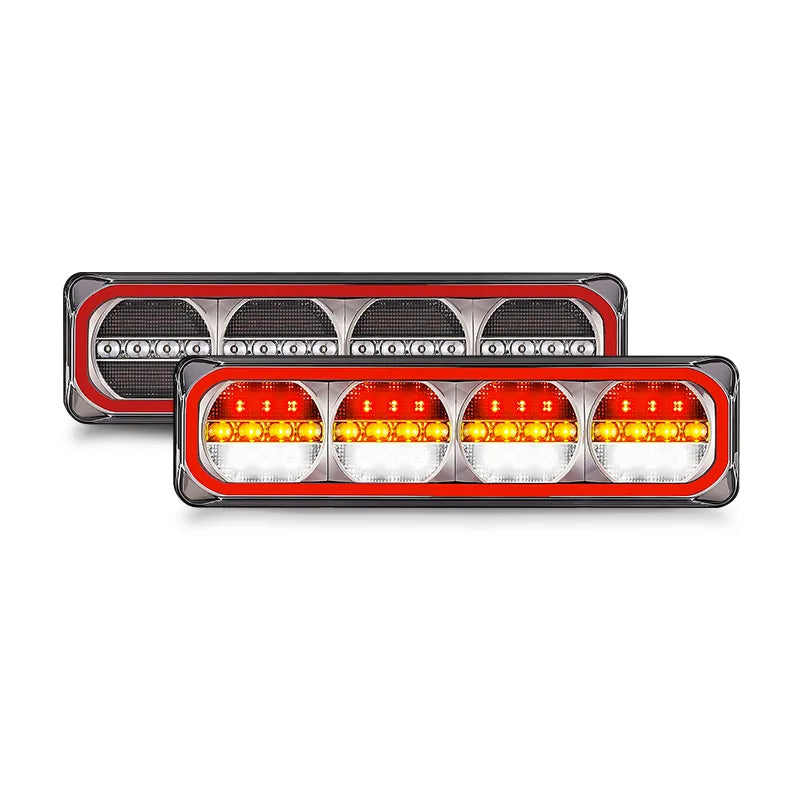

The LED Autolamps 520ARWMRCSB is the right-hand side version of the 520 Series a large-format sequential rear combination lamp delivering stop, diffused tail, sequential indicator, and reverse functions in a 520mm x 141mm x 28.5mm housing. The 520 Series is one of the largest combination lamp formats in the LED Autolamps range, offering a premium sequential indicator sweep and diffused tail function for high-visibility rear lighting on large tray vehicles, trucks, and commercial trailers.

The "RCS" suffix confirms right-hand side with chrome surround ("B" = bulk single unit). Separate the base plate from the lamp, horizontally mount onto a flat surface, clip the lamp into the base. ECE approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Functions: Stop, tail (diffused), sequential indicator, reverse
  • Orientation: Right hand side (RHS)
  • Dimensions: 520mm x 141mm x 28.5mm
  • Mount type: Separate base plate clip lamp into base, horizontal surface mount
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ECE approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 520ARWMRCSB

Features & Benefits

  • Sequential indicator: Dynamic sweeping amber indicator sequence for premium visibility and modern styling
  • Diffused tail function: Soft, even LED glow across the full lamp face for a premium finished appearance
  • Right-hand side: RHS orientation for correct lamp placement on the right side of the vehicle or trailer
  • Large 520mm format: One of the largest combination lamps in the LED Autolamps range suited to large tray vehicles, trucks, and commercial trailers
  • Base plate and clip-in lamp: Separate base plate mounts to the surface; lamp clips into base for clean installation and easy replacement
  • ECE approved: Legal for all four functions on Australian and international road vehicles
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 520ARWMRCSB
Brand LED Autolamps
Series 520 Series
Functions Stop, Tail (diffused), Sequential Indicator, Reverse
Orientation Right Hand Side (RHS)
Dimensions 520mm x 141mm x 28.5mm
Mount Type Separate base plate clip-in lamp, horizontal
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ECE approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 12V and 24V large tray vehicles, trucks, and commercial trailers:

  • Large ute tray builds requiring premium sequential rear lighting
  • Commercial truck bodies
  • Bus and coach rear panels

Frequently Asked Questions

Is this the right or left-hand lamp?

This is the right-hand side (RHS) lamp. For the left-hand side, refer to the 520ARWMLCSB.

What is the sequential indicator?

The sequential indicator LEDs sweep outwards in a dynamic amber sequence rather than a standard on/off flash a premium indicator style for improved visibility and road presence.

What does "diffused tail" mean?

Diffused tail delivers a soft, even LED glow across the full lamp face rather than discrete visible LED points producing a premium, modern tail light appearance.

Is this lamp suitable for both 12V and 24V systems?

Yes the 520 Series operates on 12–24V DC, covering both 12V and 24V applications.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
