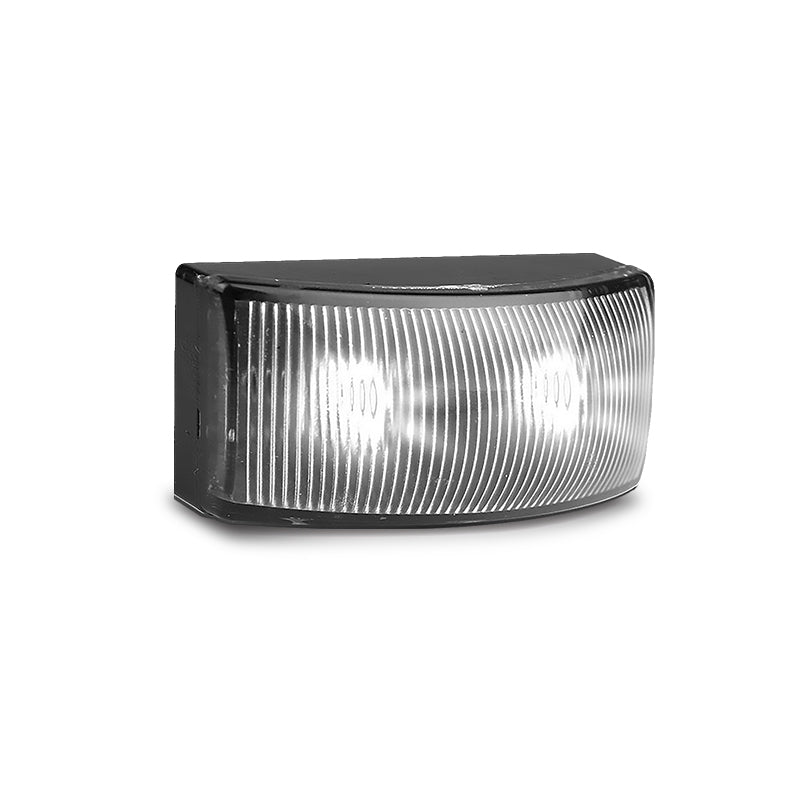

LED Autolamps 5025WMB Front End Outline LED Marker White Clear Lens 20cm Cable
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 5025WMB Front End Outline LED Marker White Clear Lens 20cm Cable

SKU: 5025WMB
Price
$25
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

White Front End Outline Marker Clear Lens, Plug & 3M Tape, ADR Approved, 12/24V, Single Unit.

Product Overview

The LED Autolamps 5025WMB is the single bulk unit version of the 5025 Series white front end outline (FEO) marker the individual supply alternative to the 5025WM2 twin blister pack listed earlier in this session. Sharing the same proven 50mm x 25mm x 21mm compact form factor, clear lens, white LEDs, and non-fastener plug and 3M tape fitting system as the twin pack, the 5025WMB suits workshops, fleet operators, and installers requiring individual single-unit supply.

The "B" suffix denotes bulk single unit no retail blister packaging. The 5025 Series uses a unique non-fastener fitting system: the serrated plug and high-quality 3M tape hold the lamp securely without screws or bolts, significantly saving installation time. ADR approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: White front end outline (FEO) marker
  • Lens: Clear with internal white LEDs
  • Dimensions: 50mm x 25mm x 21mm
  • Cable: 20cm
  • Fitting system: Non-fastener plug + 3M adhesive tape
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 5025WMB

Features & Benefits

  • Non-fastener fitting: Serrated plug and 3M adhesive tape installation no screws, no bolts, no drilling required significantly faster installation than traditional marker lamps
  • Single bulk unit: Individual supply for workshops and fleet operators requiring one-at-a-time purchasing without a twin blister pack
  • Clear lens with white LEDs: Modern clean lens appearance maintaining colour accuracy over time without UV lens fading
  • Compact 50mm x 25mm x 21mm: Low-profile compact form factor for discreet installation on trailer frames and body panels
  • ADR approved: Legal for white front end outline marker use on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 5025WMB
Brand LED Autolamps
Series 5025 Series
Function White Front End Outline Marker
Lens Clear internal white LEDs
Dimensions 50mm x 25mm x 21mm
Cable Length 20cm
Fitting System Non-fastener plug + 3M tape
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ADR approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks

Frequently Asked Questions

What is the difference between the 5025WMB and the 5025WM2?

Both are 5025 Series white front end outline markers. The 5025WMB is a single bulk unit without retail packaging while the 5025WM2 is a twin blister pack with two lamps. Choose based on quantity required.

How is this lamp installed?

The 5025 Series uses a non-fastener system drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required.

Is this lamp ADR approved?

Yes the 5025WMB is ADR approved for white front end outline marker use on Australian road vehicles and trailers.

What voltage systems does this lamp suit?

12–24V DC compatible with both 12V and 24V vehicle electrical systems.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
