LED Autolamps 5025WM2 White Side Marker Twin Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 5025WM2 White Side Marker Twin Pack

SKU: 5025WM2
Price
$51
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

White Front End Outline Marker Twin Pack Non-Fastener Plug & 3M Tape, ADR Approved, 12/24V.

Product Overview

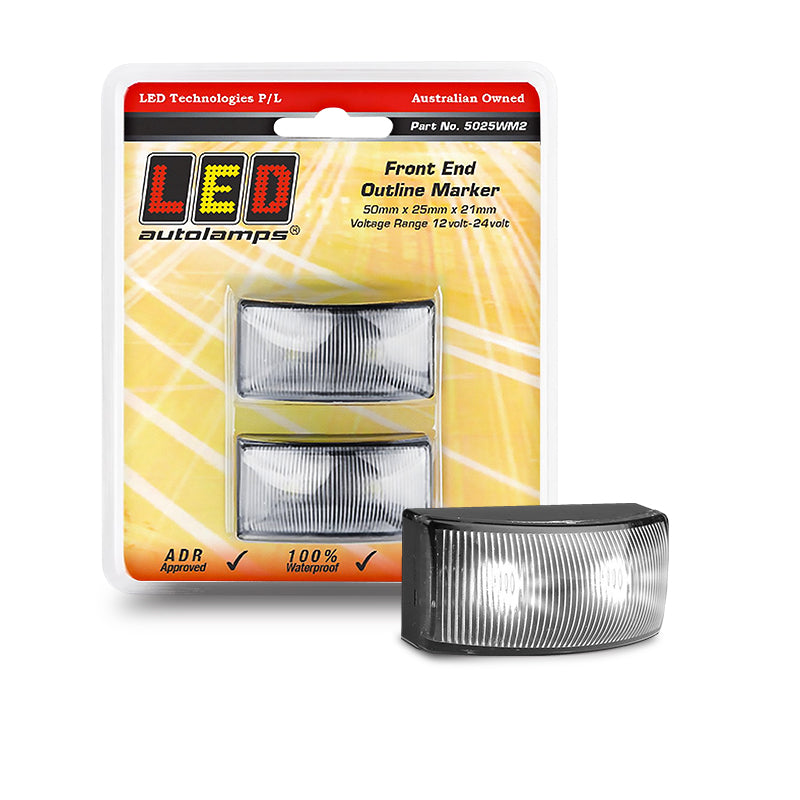

The LED Autolamps 5025WM2 is a twin blister pack of 5025 Series white front end outline (FEO) markers two lamps per pack for complete left and right front marker installation in a single purchase. The 5025WM2 is a front end outline marker with non-fastener fitting design, low-profile compact form, ADR approved, IP67, 12–24V, 5-year warranty, 50mm x 25mm x 21mm.

The 5025 Series uses a unique non-fastener fitting system drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required. ADR approved under CRN 47203. Supplied as a twin blister pack two white FEO markers per pack. The single bulk unit version is the 5025WMB.

Key Specifications

  • Function: White front end outline (FEO) marker
  • Lens: Clear with internal white LEDs
  • Dimensions: 50mm x 25mm x 21mm
  • Fitting system: Non-fastener serrated plug + 3M adhesive tape
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR approved CRN 47203
  • Warranty: 5 years
  • Pack quantity: 2 (twin blister)
  • Brand: LED Autolamps
  • SKU: 5025WM2

Features & Benefits

  • Twin pack: Two white FEO markers per pack for complete left and right front fitment in a single purchase
  • Non-fastener fitting: Serrated plug and 3M adhesive tape no screws, no bolts, no drilling of fixing holes required saves significant installation time compared to traditional marker lamps
  • Clear lens with white LEDs: Modern clean lens appearance maintaining colour accuracy without UV fading
  • Compact 50mm x 25mm x 21mm: Low-profile form factor for discreet, unobtrusive front panel installation
  • ADR approved CRN 47203: Certified for legal white front end outline marker use on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 5025WM2
Brand LED Autolamps
Series 5025 Series
Function White Front End Outline Marker
Lens Clear internal white LEDs
Dimensions 50mm x 25mm x 21mm
Fitting System Non-fastener serrated plug + 3M tape
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance CRN 47203
Warranty 5 Years
Pack Quantity 2 (twin blister)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks
  • Agricultural and construction trailers

Frequently Asked Questions

How many lamps are in this pack?

Two one for each side of the vehicle or trailer front.

Is this a front or side marker?

This is a white front end outline (FEO) marker the supplier title "White Side Marker" is a naming error confirmed across all verified sources including Carac, MaxiPARTS, and the official LED Autolamps 5025 Series page.

What is the ADR compliance code?

CRN 47203 confirmed from MaxiPARTS.

How is this lamp installed?

Drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
