LED Autolamps 5025ARMB 12/24V Amb/Red Side Marker
Click to open expanded view
LED AUTOLAMPS logo

Out of stock

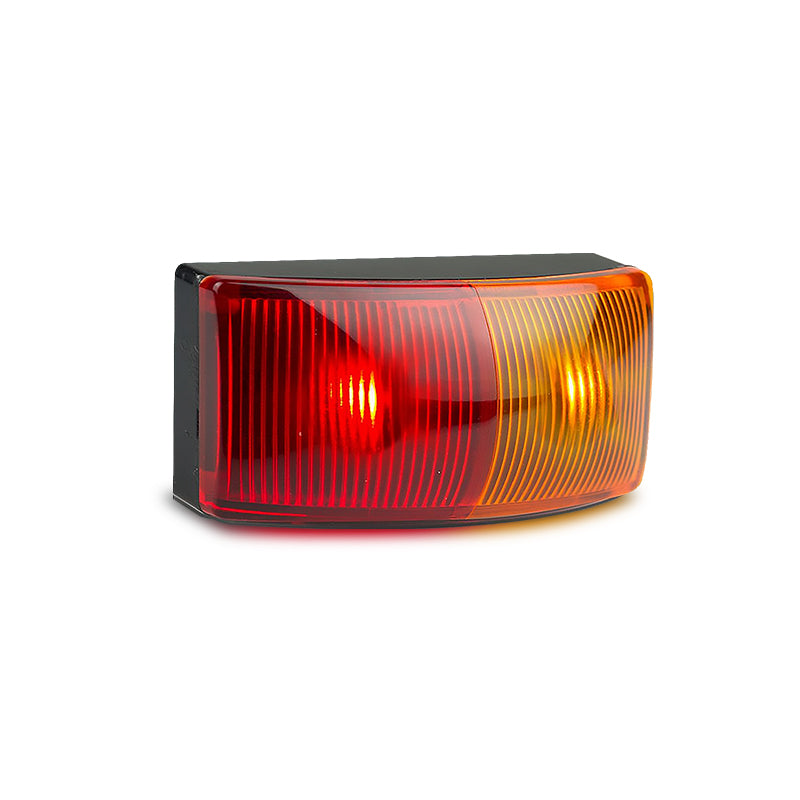

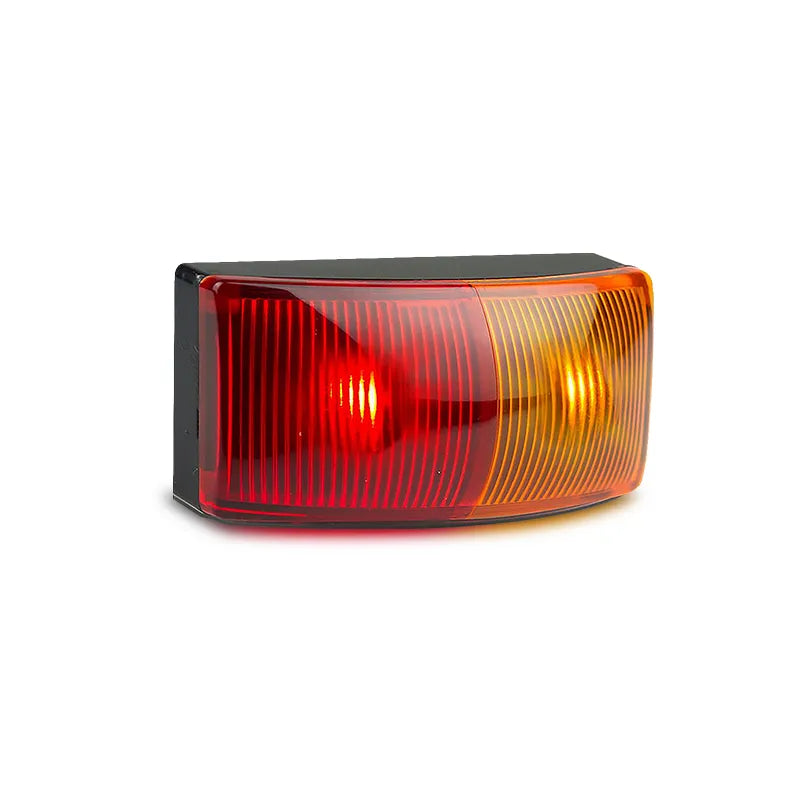

LED Autolamps 5025ARMB 12/24V Amb/Red Side Marker

SKU: 5025ARMB
Regular price
$25
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Red/Amber LED Side Marker Single Bulk Unit, Non-Fastener Plug & 3M Tape, ADR Approved, 12/24V.

Product Overview

The LED Autolamps 5025ARMB is the single bulk unit version of the 5025 Series red/amber side marker the individual supply alternative to the twin blister pack format. Sharing the same proven 50mm x 25mm x 21mm compact form factor, non-fastener plug and 3M tape fitting system, and ADR approval as the rest of the 5025 Series, the 5025ARMB delivers red and amber side marker output in a single compact lamp without the twin pack format.

The "B" suffix denotes bulk single unit no retail blister packaging. The 5025 Series uses a unique non-fastener fitting system: drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required. ADR approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: Red/amber side marker
  • Lens: Clear with internal red and amber LEDs
  • Dimensions: 50mm x 25mm x 21mm
  • Fitting system: Non-fastener serrated plug + 3M adhesive tape
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR approved
  • Warranty: 5 years
  • Pack quantity: Single unit (bulk)
  • Brand: LED Autolamps
  • SKU: 5025ARMB

Features & Benefits

  • Single bulk unit: Individual supply for workshops and fleet operators requiring one-at-a-time purchasing
  • Red and amber dual colour: Single lamp provides both red and amber side marker output
  • Non-fastener fitting: Serrated plug and 3M adhesive tape no screws, no bolts, no drilling of fixing holes required saves significant installation time
  • Compact 50mm x 25mm x 21mm: Low-profile form factor for discreet side panel installation
  • ADR approved: Legal for red/amber side marker use on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 5025ARMB
Brand LED Autolamps
Series 5025 Series
Function Red/Amber Side Marker
Lens Clear internal red and amber LEDs
Dimensions 50mm x 25mm x 21mm
Fitting System Non-fastener serrated plug + 3M tape
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ADR approved
Warranty 5 Years
Pack Quantity Single unit (bulk)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring red/amber ADR-compliant side markers:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks

Frequently Asked Questions

What is the difference between the 5025ARMB and the 5025AM2?

The 5025ARMB is a single bulk unit providing red/amber side marker output. The 5025AM2 is a twin blister pack providing amber side direction indicator output. Different functions and pack quantities confirm which suits your application.

How is this lamp installed?

Drill a 10mm hole for the serrated plug, peel the 3M tape backing, and press firmly onto a clean, dry surface. No screws or bolts required.

Is this lamp ADR approved?

Yes the 5025ARMB is ADR approved for red/amber side marker use on Australian road vehicles and trailers.

What voltage systems does this lamp suit?

12–24V DC compatible with both 12V and 24V vehicle electrical systems.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
