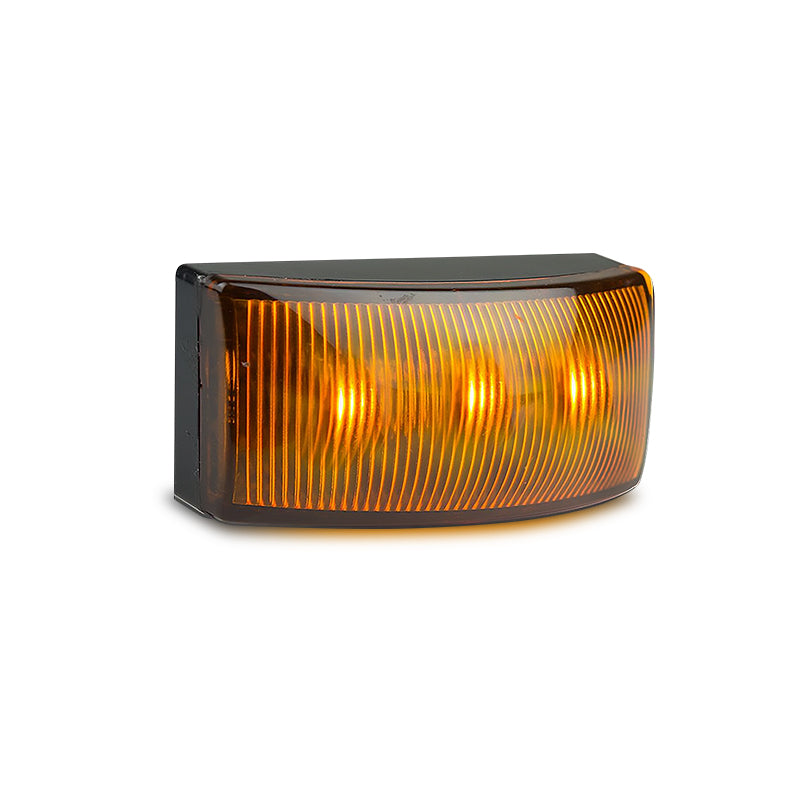

LED Autolamps 5025AMB Side Direction Indicator/Front End Outline
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 5025AMB Side Direction Indicator/Front End Outline

SKU: 5025AMB
Price
$25
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Amber Side Direction Indicator & Front End Outline Marker Box of 10, 3 LEDs, Dual ADR Approval, 12/24V.

Product Overview

The LED Autolamps 5025AMB is a bulk box of 10 amber side direction indicator and front end outline (FEO) marker lamps from the 5025 Series. The 5025AMB features 3 LEDs and dual ADR compliance ADR Side Direction Cat 5 CRN 47215 and ADR Front End Outline CRN 47218 a single lamp certified for both side direction indicator and front end outline marker applications.

Each lamp features a black bezel, 50mm x 25mm x 21mm dimensions, 12/24V, ADR approved, 20cm cable, and IP67. Current draw is just 0.029A at both 13.8V and 28V one of the lowest draws in the LED Autolamps range. The non-fastener fitting system uses a serrated plug and 3M tape for fast, drill-minimal installation. Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: Amber side direction indicator (Cat 5) AND front end outline marker (dual certified)
  • LED count: 3
  • LED colour: Amber
  • Dimensions: 50mm x 25mm x 21mm
  • Cable: 20cm
  • Fitting system: Non-fastener serrated plug + 3M adhesive tape (10mm hole)
  • Current draw: 0.029A @ 13.8V / 0.029A @ 28V
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • ADR compliance: Side Direction Cat 5 CRN 47215 / Front End CRN 47218
  • Warranty: 5 years
  • Pack quantity: 10 (box of 10)
  • Brand: LED Autolamps
  • SKU: 5025AMB

Features & Benefits

  • Dual function side direction and FEO: ADR approved for both side direction indicator (Cat 5, CRN 47215) and front end outline marker (CRN 47218) versatile single lamp suits both applications
  • 3 LEDs: Three amber LEDs more than the 2-LED variants in the range for improved brightness in both functions
  • Box of 10: Trade supply for workshops, fleet operators, and trailer manufacturers
  • Ultra-low 0.029A current draw: Consistent current draw at both 12V and 24V extremely efficient for multi-lamp installations
  • Non-fastener fitting: Serrated plug through a 10mm hole and 3M tape no screws or bolts required
  • 20cm cable: Pre-wired for standard installation configurations
  • ADR and ECE approved: Legal for both functions on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits all trailer, caravan, and commercial truck applications
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 5025AMB
Brand LED Autolamps
Series 5025 Series
Function Side Direction Indicator (Cat 5) + Front End Outline Marker
LED Count 3
LED Colour Amber
Dimensions 50mm x 25mm x 21mm
Cable Length 20cm
Fitting System Non-fastener serrated plug + 3M tape (10mm hole)
Current Draw 0.029A @ 13.8V / 0.029A @ 28V
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance Cat 5 Side Direction CRN 47215 / Front End CRN 47218
Warranty 5 Years
Pack Quantity 10 (box of 10)

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring amber side direction or front end outline marking:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks

Frequently Asked Questions

What is the difference between the 5025AMB and the 5025AM2?

Both are the same amber side direction/FEO lamp with 3 LEDs. The 5025AMB is a box of 10 while the 5025AM2 is a twin blister pack of 2. Choose based on quantity required.

Is this lamp approved for both side direction indicator and front end outline marker use?

Yes the 5025AMB is ADR approved for Side Direction Cat 5 (CRN 47215) and Front End Outline Marker (CRN 47218), making it dual-certified for both applications.

What is the current draw?

0.029A at both 13.8V and 28V an extremely low draw consistent across 12V and 24V systems.

How many LEDs does this lamp have?

3 LEDs more than the 2-LED red/amber variants in the 5025 Series range.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
