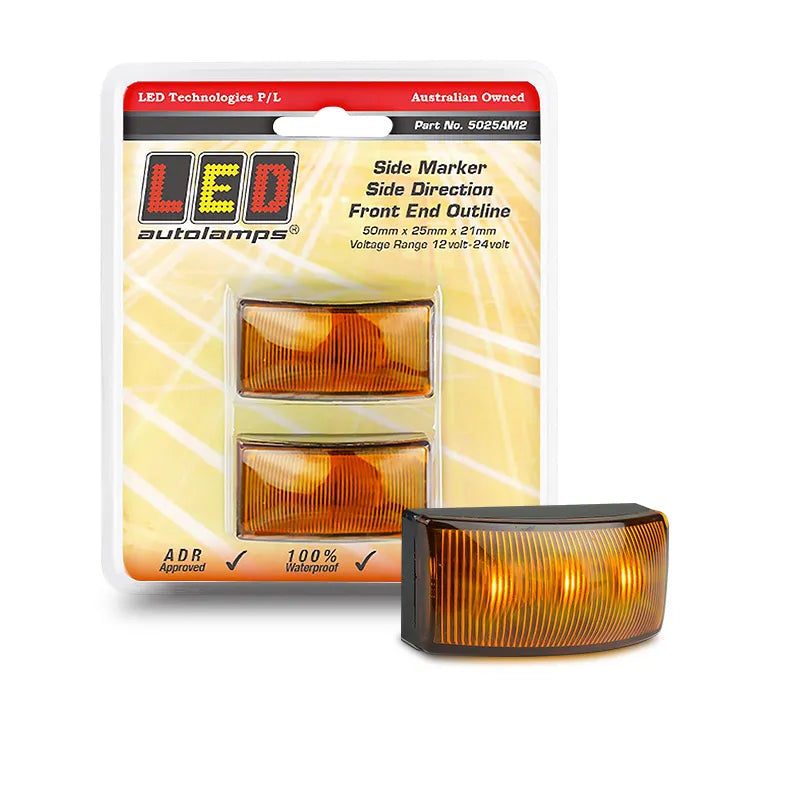

LED Autolamps 5025AM2 Side Marker/Side Direction/Front End Outline Twin Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 5025AM2 Side Marker/Side Direction/Front End Outline Twin Blister

SKU: 5025AM2
Price
$46
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 5025AM2 12-24V Amber LED Side Marker Side Direction and Front End Outline Lamp 50mm x 25mm x 21mm Non-Fastener Fitting ADR Approved IP67 Twin Blister

The LED Autolamps 5025AM2 is a 12-24V amber LED lamp covering side marker, side direction indicator, and front end outline functions in a compact 50mm x 25mm x 21mm housing. Non-fastener fitting design. ADR approved, IP67 waterproof. Five-year warranty. Sold as a twin blister pack.

Product overview

The 5025AM2 is a compact multi-function amber lamp suited to trailers, caravans, trucks, and commercial vehicles requiring side marker, side direction, and front end outline lighting in a single low-profile unit. The non-fastener fitting design allows installation without screws or bolts, saving time and simplifying fitment. The 50mm x 25mm x 21mm compact profile suits tight panel positions. ADR approved for road use in Australia. 12-24V compatible. IP67 rated. Twin blister pack provides two lamps for left and right installations.

Features and benefits

Side marker, side direction, and front end outline in one unit: Three-function compact amber lamp.

50mm x 25mm x 21mm compact low-profile housing.

Non-fastener fitting design: Tool-free installation without screws or bolts.

Saves installation time.

ADR approved: Compliant for road use in Australia.

IP67 fully waterproof and submersible.

12V and 24V compatible.

Twin blister pack: Two lamps per pack for left and right installations.

Five-year warranty.

Technical specs

Specification Detail
SKU 5025AM2
Brand LED Autolamps
Type Side marker/direction/front outline lamp
Light Type LED
LED Colour Amber
Operating Voltage 12V to 24V
Dimensions 50mm x 25mm x 21mm
Mount Type Non-fastener fitting
Waterproof Rating IP67
ADR Approved Yes (CTA reference not confirmed)
Sold As Twin blister pack
Warranty Five years

Frequently asked questions

Is the 5025AM2 ADR approved?

Yes. The 5025AM2 is ADR approved for road use in Australia. Contact us to confirm the specific CTA approval reference before purchasing.

What functions does the 5025AM2 cover?

The 5025AM2 covers side marker, side direction indicator, and front end outline functions in a single compact amber lamp unit.

What is the non-fastener fitting design?

The non-fastener fitting design allows the 5025AM2 to be installed without screws or bolts, simplifying fitment and saving installation time in tight panel positions.

How many lamps are in the pack?

The 5025AM2 is sold as a twin blister pack containing two lamps for left and right installations.

What voltage does the 5025AM2 operate on?

The 5025AM2 operates on 12V and 24V systems.
