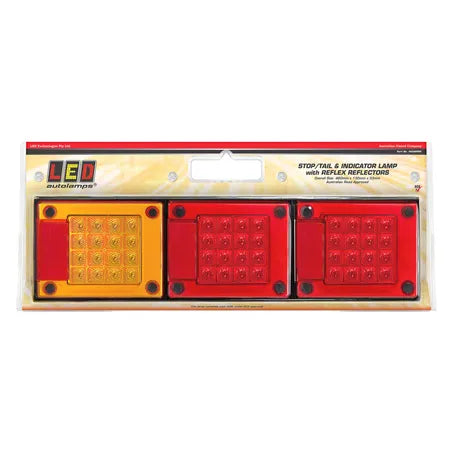

LED Autolamps 460ARRM 12/24V Stop/Tail/Indicator 460x130x33m Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 460ARRM 12/24V Stop/Tail/Indicator 460x130x33m Blister Pack

SKU: 460ARRM
5.0 (1)
Price
$232
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved Medium Jumbo Stop/Tail/Indicator Lamp with Inbuilt Reflectors 460x130mm, IP67

Product Overview

The LED Autolamps 460ARRM is a 12/24V Medium Jumbo rear combination lamp covering stop, tail, and indicator functions with inbuilt reflex reflectors in the same 460mm x 130mm x 33mm form factor as the 460ARWM. The three-function variant without reverse suited to trailer and truck applications where a separate reverse lamp is preferred or already fitted.

ECE road approved and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • Medium Jumbo 460mm form factor — wider than the standard 280-283mm range; suited to larger trailer bodies and truck rear panels
  • Stop, tail, indicator, and inbuilt reflectors — four functions in a single surface-mount unit
  • Inbuilt reflex reflectors — integrated passive reflective elements for additional rear visibility and compliance
  • ECE road approved — meets international road approval standards for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 460ARRM
Series Medium Jumbo
Lamp Type Stop / Tail / Indicator / Reflector
Voltage Range 12V / 24V
Dimensions 460mm x 130mm x 33mm
Mounting Surface mount
Protection Rating IP67
Compliance ECE
Warranty 5 years

Compatible With / Goes Well With

  • Larger trailers, trucks, and commercial vehicles requiring a wide-format stop/tail/indicator lamp
  • 12V light vehicles and 24V heavy transport applications
  • Trailer builds requiring ECE-approved rear combination lighting
  • LED Autolamps 460ARWM (same form factor with reverse function)
  • LED Autolamps 460AM rear indicator lamp (same 460 series)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 460ARRM approved for road use in Australia?

Yes. The 460ARRM is ECE road approved, meeting international road approval standards accepted for legal on-road use in Australia.

How does the 460ARRM differ from the 460ARWM?

The 460ARWM adds reverse function to the same 460mm x 130mm x 33mm Medium Jumbo form factor. The 460ARRM covers stop, tail, indicator, and reflectors only — suited to installations where a separate reverse lamp is already fitted or preferred.

What is the Medium Jumbo classification?

Medium Jumbo refers to the 460mm length — a wider format than the standard 280-283mm Mini Jumbo series, suited to larger trailer bodies and truck rear panels requiring proportionally sized rear lighting.

What is the IP rating on the 460ARRM?

The 460ARRM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and truck body mounting.

What warranty does the 460ARRM carry?

The 460ARRM is backed by a 5-year warranty from LED Autolamps.
