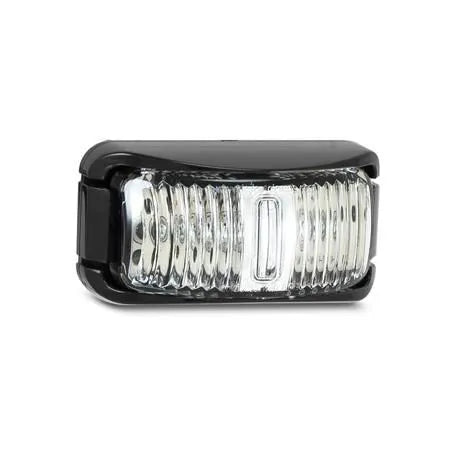

LED Autolamps 42WMB Front End Outline Marker White Clear Lens 16cm Cable 10 Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 42WMB Front End Outline Marker White Clear Lens 16cm Cable 10 Pack

SKU: 42WMB
Price
$360
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

White Front End Outline Marker Bulk Box of 10, ADR 49/00 CRN 42840, 12/24V, Classic Truck Style.

Product Overview

The LED Autolamps 42WMB is a bulk box of 10 white front end outline markers from the 42 Series Black the classic truck-style marker with a black bracket, polycarbonate lens over hardened acrylic base, clip-in lens, and 16cm cable. Box of 10 front position markers with white LEDs and black base, 74mm x 38mm x 34.5mm, multi-volt, ADR approved.

ADR Category 49/00 CRN 42840, 0.03A current draw at both 13.8V and 28V, 16cm cable, polycarbonate lens, hardened acrylic base. Installation: mount bracket horizontally onto flat surface, run wires through back, clip lens into place. Backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: White front end outline marker
  • Lens material: Polycarbonate
  • Base material: Hardened acrylic
  • Bracket: Black
  • Dimensions: 74mm x 38mm x 35mm
  • Cable: 16cm
  • Fitting: Clip-in lens
  • Current draw: 0.03A @ 13.8V / 0.03A @ 28V
  • Mount type: Surface mount bracket screw fix, clip-in lens
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR 49/00 CRN 42840
  • Warranty: 5 years
  • Pack quantity: 10 (bulk box)
  • Brand: LED Autolamps
  • SKU: 42WMB

Features & Benefits

  • Bulk box of 10: Trade supply for workshops, fleet operators, and trailer manufacturers
  • Classic truck style: The 42 Series delivers the traditional round-body truck marker lamp profile popular on Australian commercial trucks and trailers
  • Black bracket: Dark finish suited to modern builds; chrome bracket version also available in the 42 Series Chrome range
  • Clip-in lens: Polycarbonate lens clips in and out without tools for easy replacement
  • ADR 49/00 CRN 42840: Legal for white front end outline marker use on Australian road vehicles
  • Ultra-low 0.03A current draw: Consistent at both 12V and 24V minimal electrical load
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits all trailer, caravan, and commercial vehicle applications
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 42WMB
Brand LED Autolamps
Series 42 Series Black
Function White Front End Outline Marker
Lens Material Polycarbonate
Base Material Hardened Acrylic
Bracket Black
Dimensions 74mm x 38mm x 35mm
Cable Length 16cm
Lens Fitting Clip-in
Current Draw 0.03A @ 13.8V / 0.03A @ 28V
Mount Type Surface mount bracket screw, clip-in lens
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance ADR 49/00 CRN 42840
Warranty 5 Years
Pack Quantity 10 (bulk box)

Compatible With

Suits all 12V and 24V trucks, trailers, and commercial vehicles requiring white ADR-compliant front end outline markers:

  • Commercial trucks and prime movers
  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Fleet and workshop bulk supply

Frequently Asked Questions

How many lamps are in the 42WMB bulk box?

Box of 10 front position markers.

Is this lamp ADR approved?

Yes ADR Category 49/00 CRN 42840 for white front end outline marker use on Australian road vehicles.

What is the current draw?

0.03A at both 13.8V and 28V consistent across 12V and 24V systems.

Can the lens be replaced without removing the bracket?

Yes the clip-in lens design allows lens replacement without removing the bracket from the mounting surface.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
