LED Autolamps 42AM | Amber Light

ADR Category 5 Amber LED Side Direction Indicator Classic Truck Style, Black Base, Clip-In Lens.

Product Overview

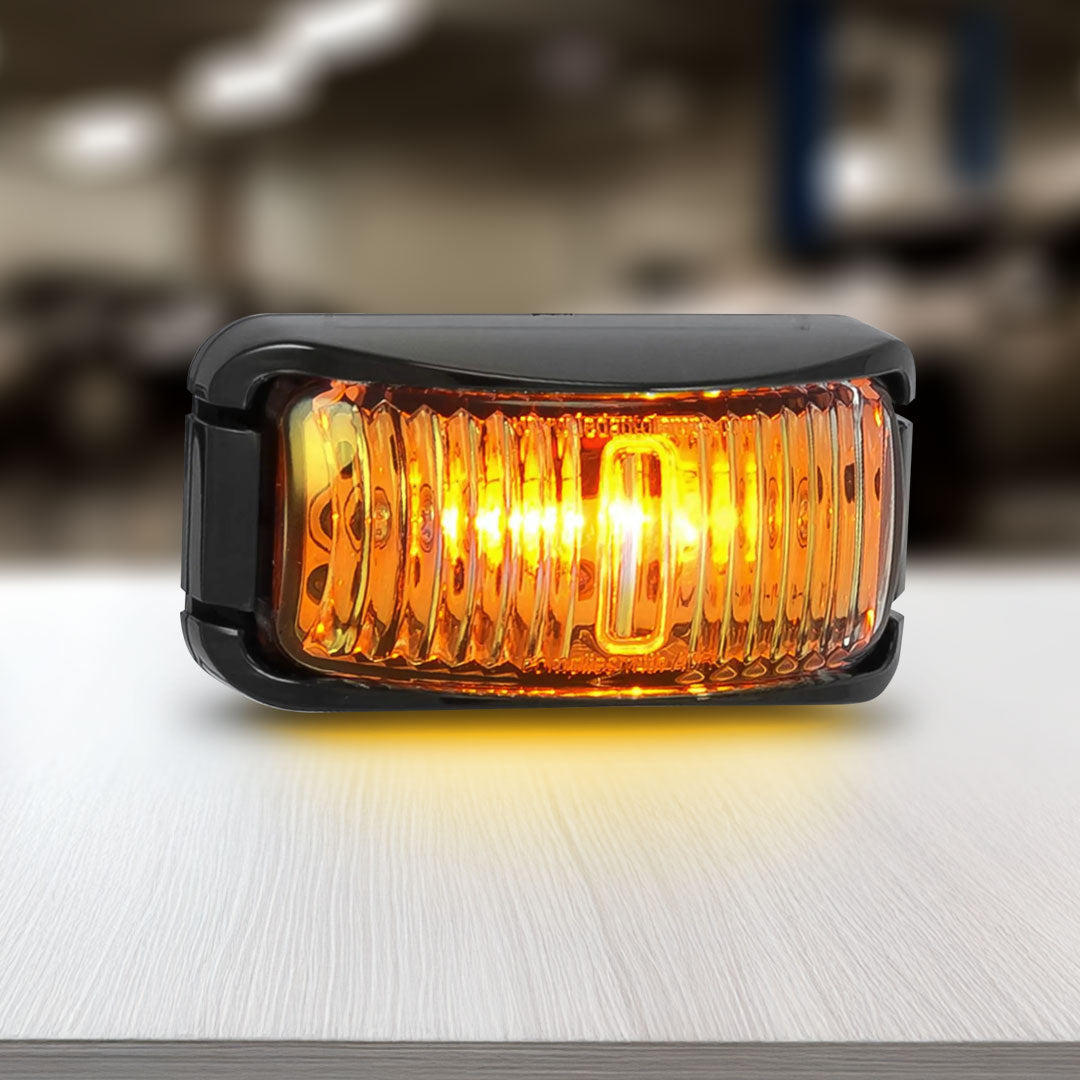

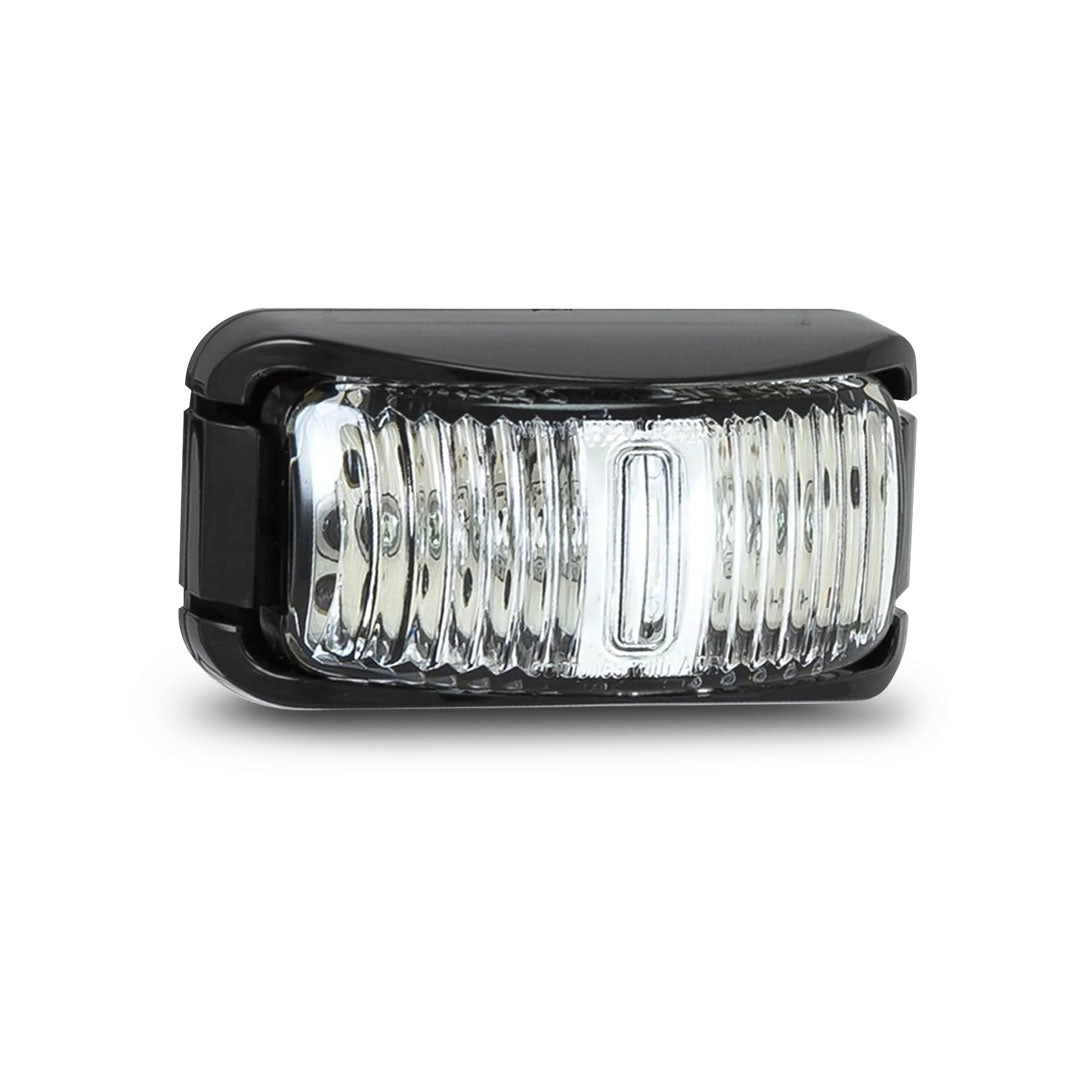

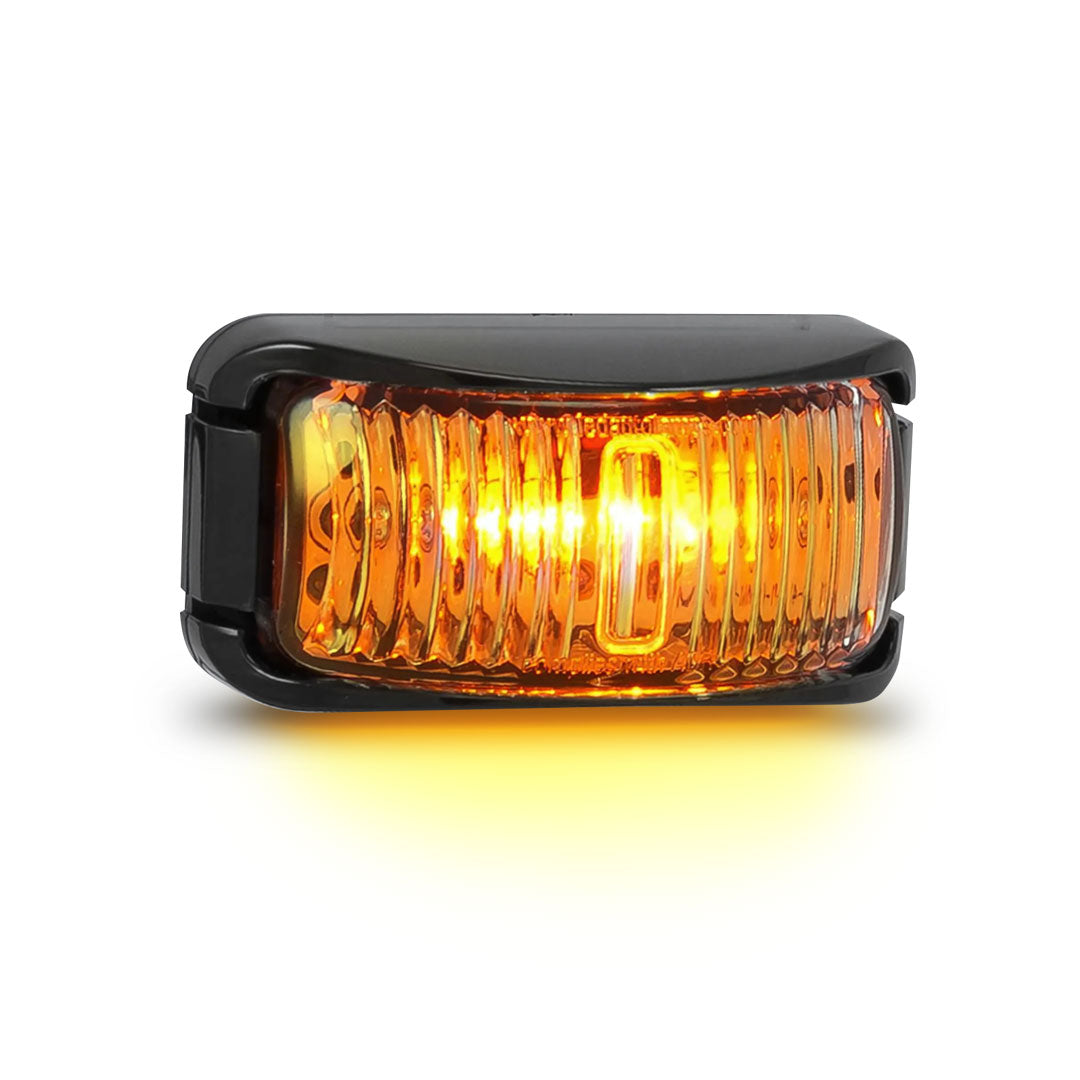

The LED Autolamps 42AM is an amber LED Category 5 side direction indicator lamp in the classic truck style, featuring a black base bracket, polycarbonate clip-in clear lens, and internal amber LEDs. Measuring 74mm x 38mm x 35mm, the 42AM shares the same proven 42 series form factor as the red 42RM rear marker making it a natural companion for consistent lamp styling across trailer, truck, and caravan builds.

ADR approved (CTA042836) for Category 5 side direction indicator use and IP67 rated for complete weatherproof protection, the 42AM operates on both 12V and 24V systems and includes a 16cm cable for straightforward connection. The surface mount black base bracket secures horizontally to the mounting surface, with the amber lens clipping in cleanly for a finished, professional result. Supplied individually in blister packaging and backed by LED Autolamps' 5-year warranty.

Key Specifications

• Function: Category 5 side direction indicator lamp
• LED colour: Amber
• Housing/base colour: Black
• Lens: Clear polycarbonate clip-in
• Dimensions: 74mm x 38mm x 35mm
• Mount type: Surface mount horizontal screw bracket with clip-in lamp
• Cable length: 16cm
• IP rating: IP67
• Input voltage: 12–24V DC
• Compliance: ADR approved CTA042836 (Category 5)
• Warranty: 5 years
• Weight: 0.078kg

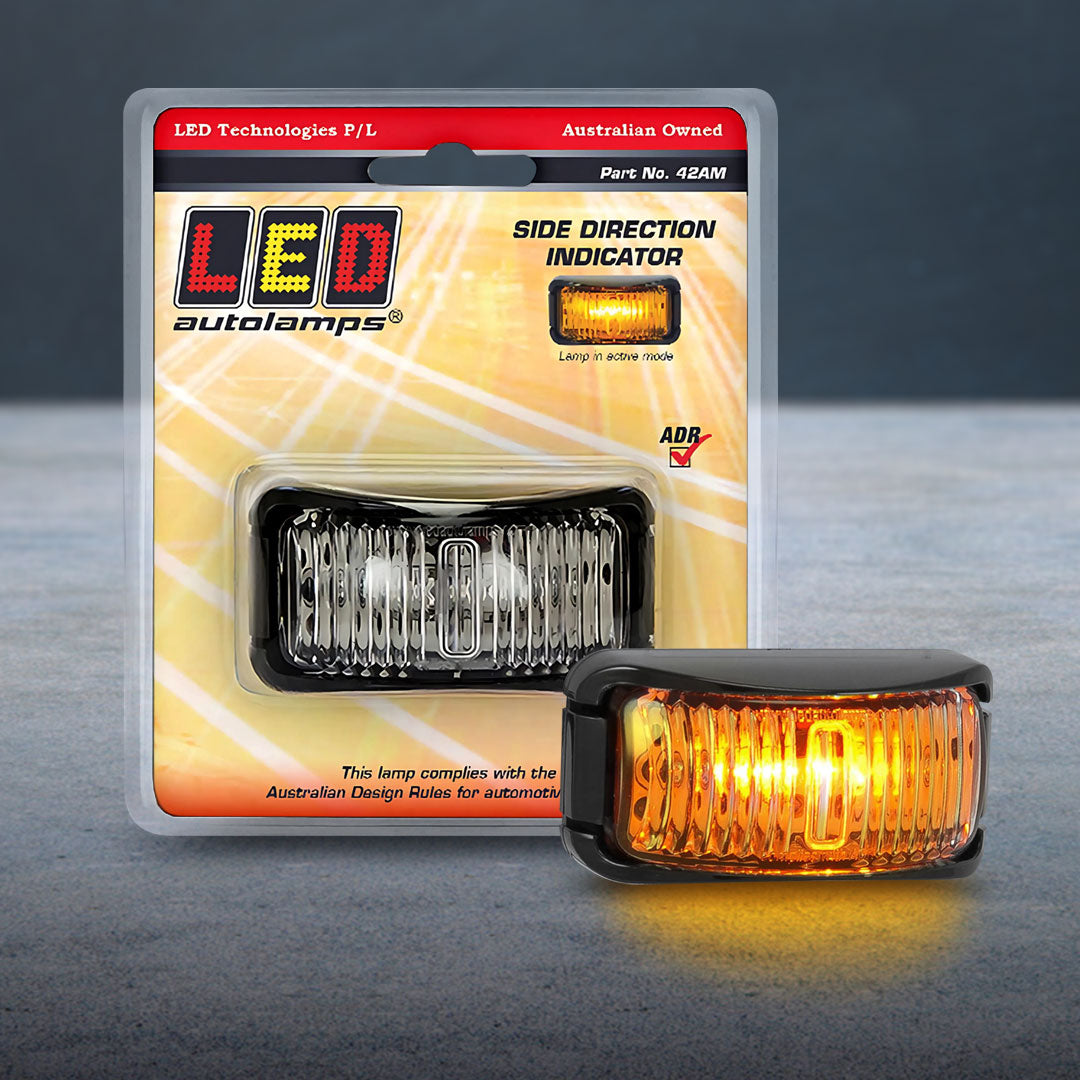

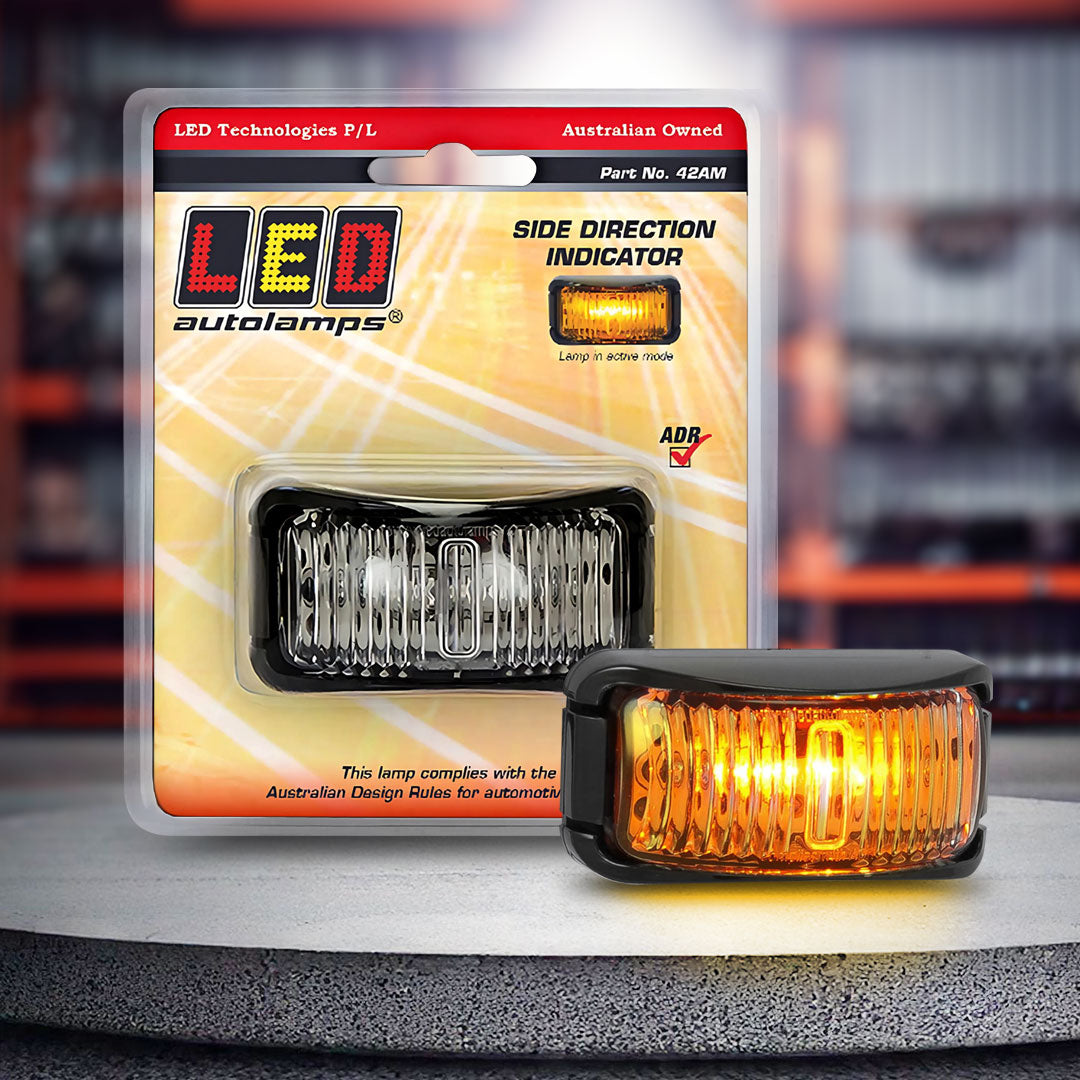

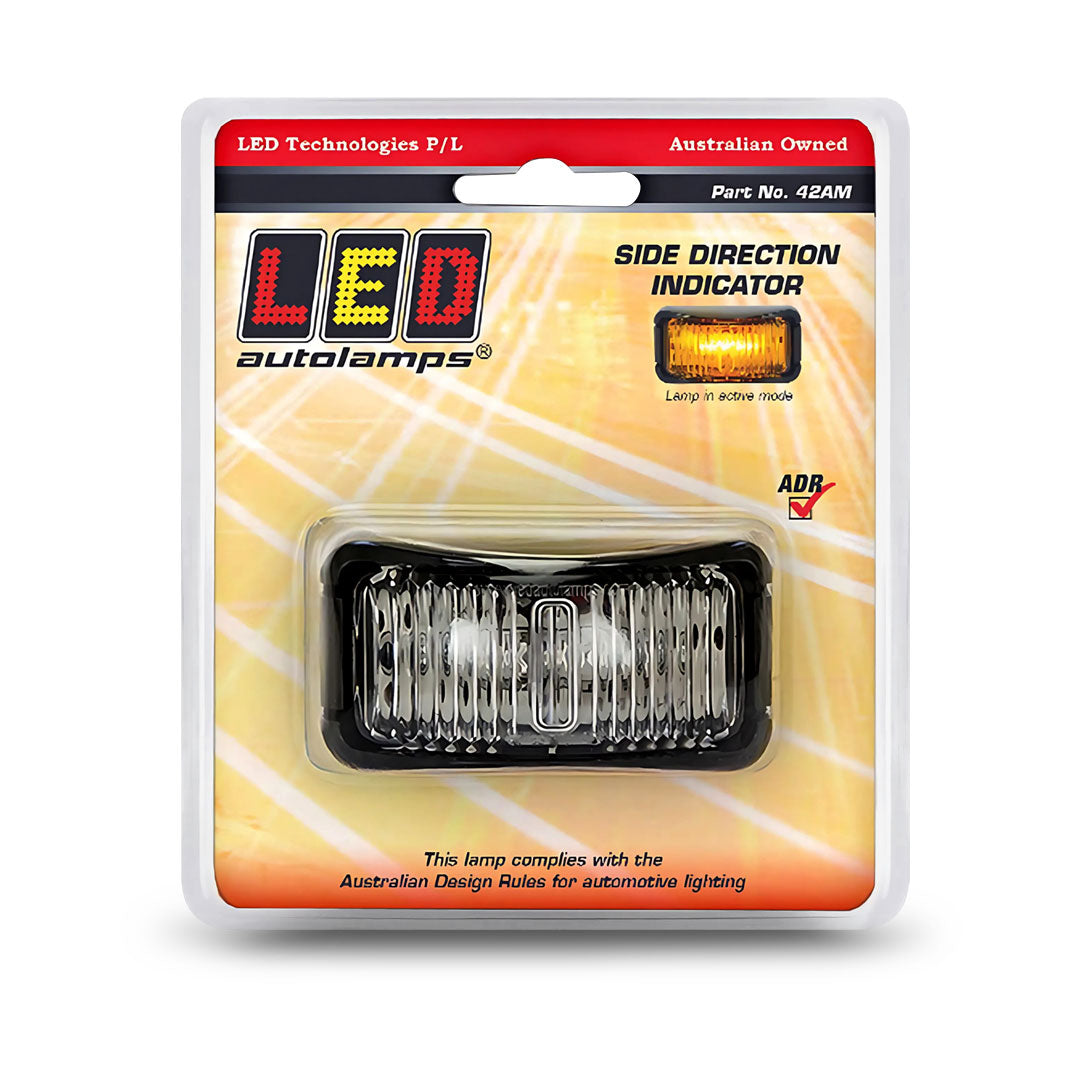

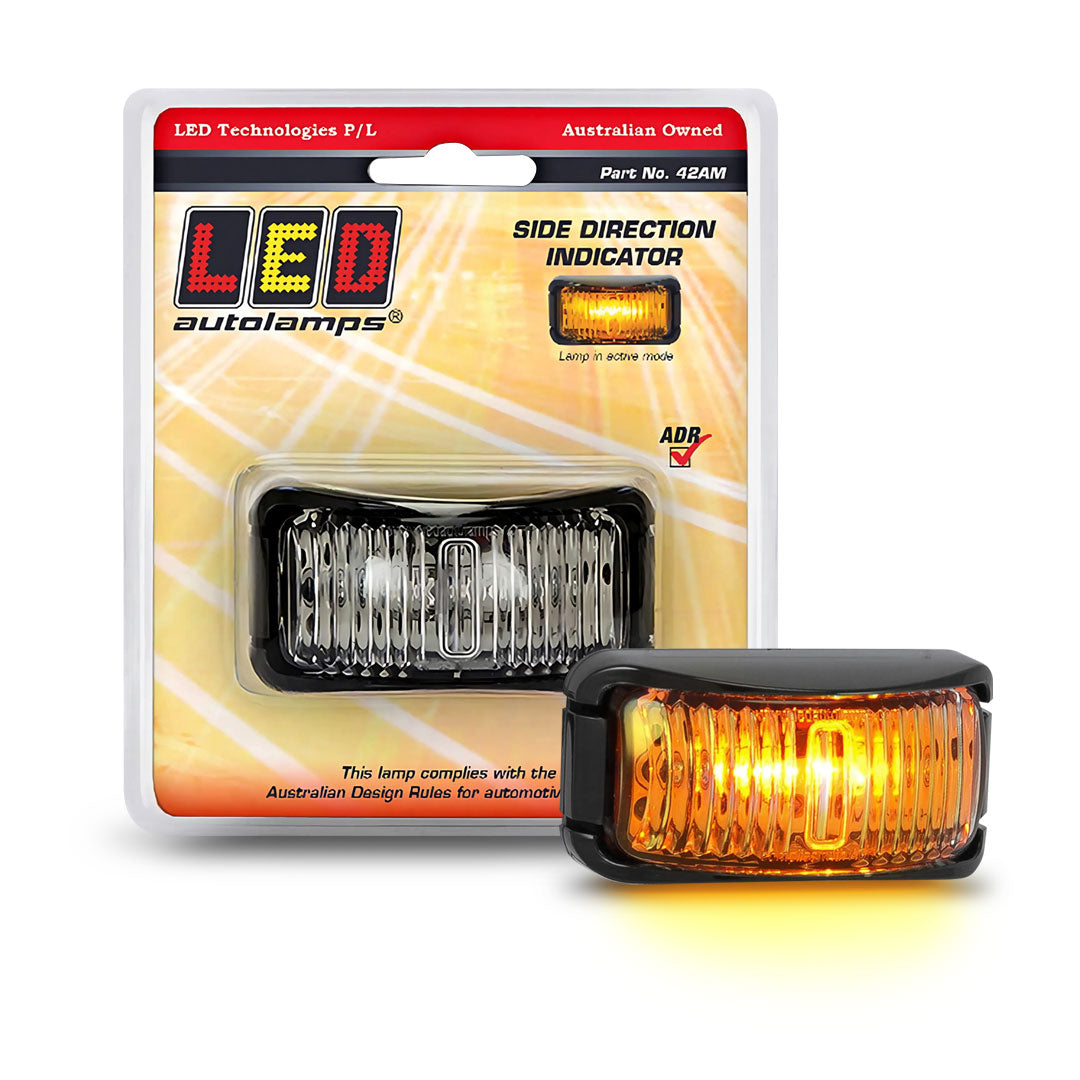

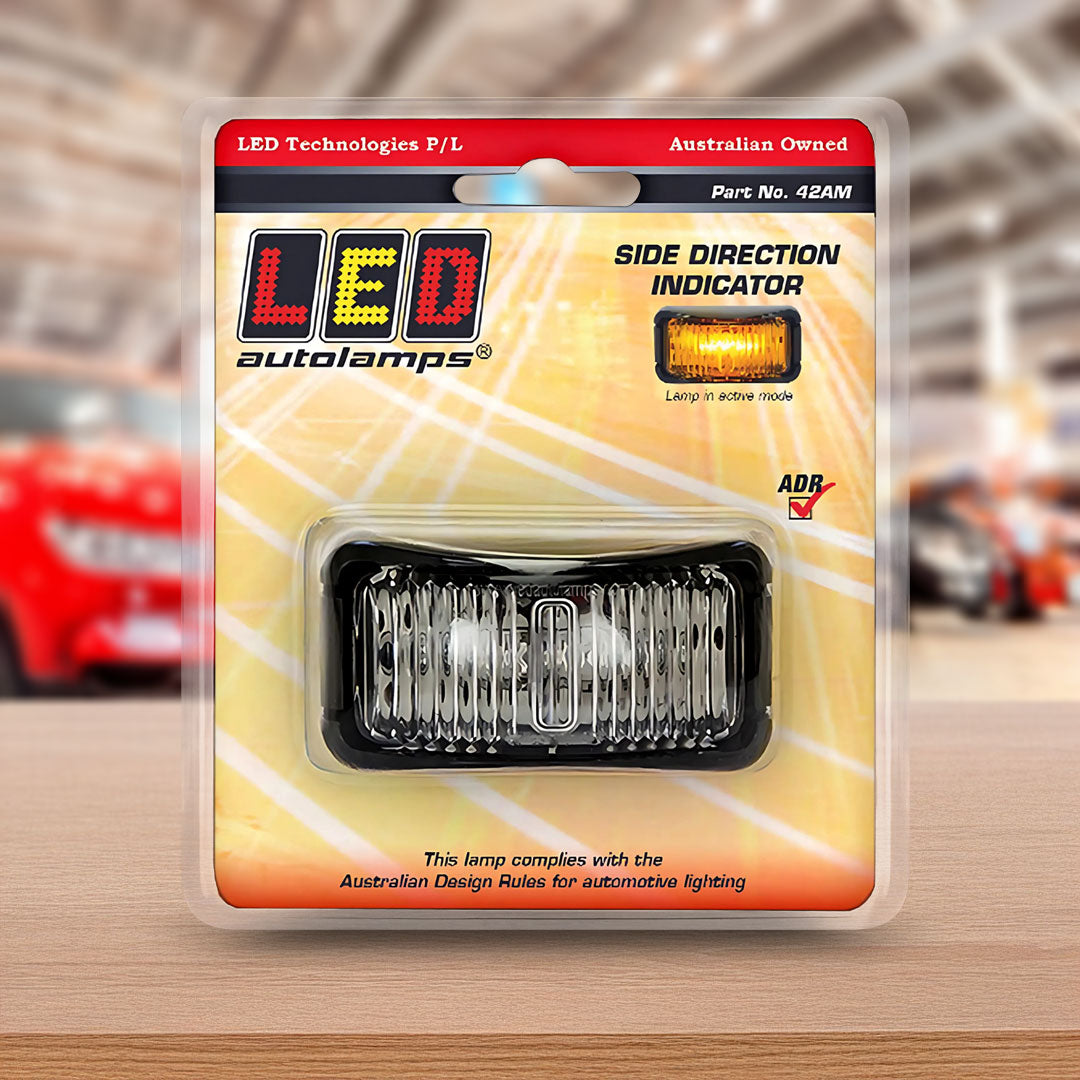

• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 42AM

Features & Benefits

• ADR Category 5 side direction indicator: Fully compliant with Australian Design Rules for Category 5 side direction indicator use on trailers, trucks, and commercial vehicles
• Classic truck style: The 42 series form factor is one of the most widely recognised lamp profiles on Australian trucks and trailers, providing a consistent, professional appearance
• Black base: Matte black bracket finish suits modern trailer and commercial vehicle builds where a dark, low-profile lamp aesthetic is preferred; complements the red 42RM rear marker for matched lamp styling
• Polycarbonate clip-in lens: Replaceable clip-in lens allows lens swap without removing the bracket from the mounting surface
• Clear lens with internal amber LEDs: Maintains colour accuracy and brightness without UV-related lens discolouration over time
• 16cm cable: Pre-wired with a 16cm lead for easy connection during installation
• 12V and 24V compatible: Multivolt operation suits passenger and caravan trailer applications through to 24V commercial trucks
• IP67 weatherproof: Completely protected against dust ingress and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring ADR Category 5 amber side direction indicators including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

Pairs well with:

• LED Autolamps MAXILAMPC3XR or MAXILAMPC3XRWB combination lamps
• LED Autolamps 42RM red rear marker
• LED Autolamps 35CARM red/amber side marker
• LED Autolamps 7030R self-adhesive reflectors

Frequently Asked Questions

What ADR category is the 42AM approved for?

The 42AM is ADR approved as a Category 5 side direction indicator lamp under certification CTA042836, confirming it meets Australian legal requirements for side direction indicator use on trailers and commercial vehicles.

What is the difference between the 42AM and the 42RM?

The 42AM is an amber side direction indicator (Category 5) with a black base bracket. The 42RM is a red rear end outline marker with a chrome bracket. Both share the same 42 series form factor (74mm x 38mm x 35mm) for consistent lamp styling across trailer builds.

Can the lens be replaced without removing the bracket?

Yes the clip-in lens design allows lens replacement without removing the bracket from the mounting surface, simplifying maintenance on installed units.

What cable length is included with the 42AM?

The 42AM includes a 16cm pre-wired cable lead for connection to the vehicle or trailer wiring.

What is covered under the 5-year warranty?

The 5-year warranty is provided by LED Autolamps and covers manufacturing defects. Contact your retailer or LED Autolamps directly for warranty claim procedures and terms.
