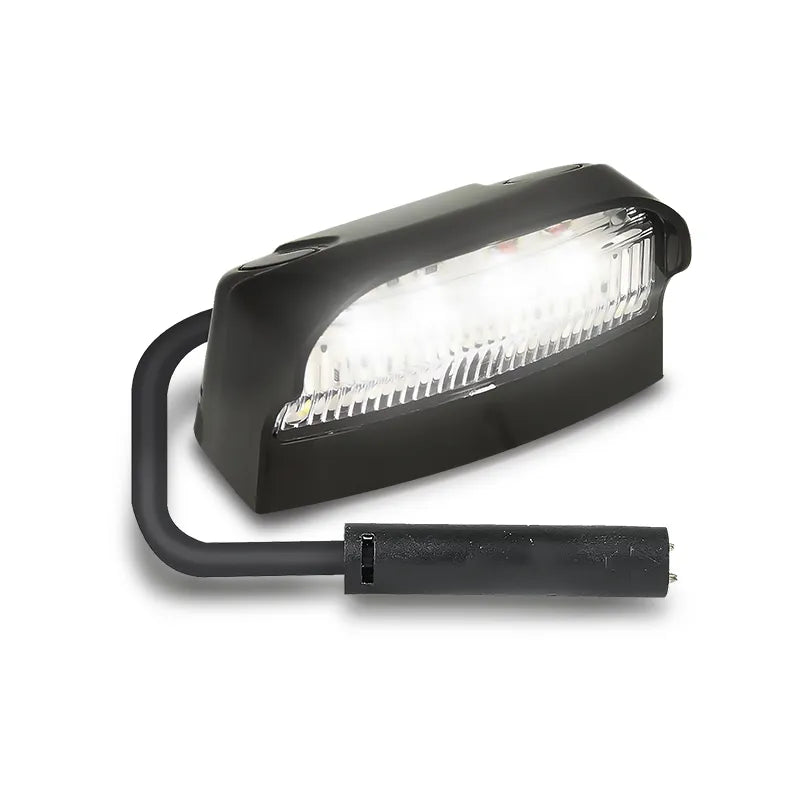

LED Autolamps 41BLMCSB 12/24V LED Licence Plate Light With 2 Pin Plug
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 41BLMCSB 12/24V LED Licence Plate Light With 2 Pin Plug

SKU: 41BLMCSB
Price
$35
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 48/00 and ECE Approved Licence Plate Light AS2809 Compliant, 2-Pin Plug, Two Lamps Required

Product Overview

The LED Autolamps 41BLMCSB is a 12/24V licence plate lamp designed for heavy duty transport, dangerous goods (AS2809), and livestock transport applications. Unlike standard licence plate lamps, it is compliant with AS2809 (Australian Standard for Road Tank Vehicles for Flammable and Combustible Liquids) cable and harness requirements, and features RoHS-compliant cables, plugs, and lamp meeting the elevated compliance demands of regulated transport sectors.

The 2-pin plug provides clean harness-compatible connection, drawing 0.05A at 13.8V. Two lamps are required for ADR 48/00 compliance. Backed by a 5-year standard warranty; note: livestock transport applications carry a 1-year warranty.

Features & Benefits

  • AS2809 cable and harness compliant — meets Australian dangerous goods road transport cable requirements for regulated flammable and combustible liquid transport vehicles
  • RoHS compliant cables, plugs, and lamp — meets Restriction of Hazardous Substances requirements across the full assembly
  • 2-pin plug — plug-and-play harness-compatible connection for clean, tool-free installation
  • ECE and ADR 48/00 road approved — dual compliance for international and Australian road legal use
  • Two lamps required for ADR compliance — both units needed for a compliant number plate light installation
  • IP67 rated — fully sealed against dust and water immersion
  • 0.05A current draw — very low power consumption at 13.8V
  • 0.25m pre-wired cable — short, tidy lead suited to rear trailer panel installations
  • 5-year warranty — standard applications; 1-year warranty for livestock transport use
  • 12/24V dual voltage — compatible with both 12V and 24V vehicle electrical systems

Technical Specs

Specification Detail
SKU 41BLMCSB
Lamp Type Licence Plate Light
Voltage Range 12V – 24V
Mount Centre-to-Centre 45mm
Current Draw 0.05A @ 13.8V
Cable Length 0.25m
Connector 2-pin plug
Protection Rating IP67
Compliance ADR 48/00 / ECE
Cable Compliance AS2809 / RoHS
ADR Note Two lamps required for compliance
Warranty 5 years (standard) / 1 year (livestock transport)

Compatible With / Goes Well With

  • Dangerous goods road tank vehicles requiring AS2809 compliant lighting
  • Livestock transport vehicles and trailers
  • Heavy duty trailers with harness wiring systems
  • LED Autolamps heavy duty lighting and cable harness systems
  • LED Autolamps 41BLM (same form factor, standard non-AS2809 variant)

Frequently Asked Questions

What is AS2809 compliance and why does it matter?

AS2809 is the Australian Standard for Road Tank Vehicles carrying flammable and combustible liquids. Vehicles operating under this standard must use compliant electrical cables, plugs, and fittings to reduce the risk of ignition. The 41BLMCSB meets these cable and harness requirements, making it the appropriate choice for regulated dangerous goods transport applications.

How many 41BLMCSB lamps are required for ADR compliance?

Two lamps are required to meet ADR 48/00 licence plate lighting compliance.

Why is the livestock transport warranty shorter?

Livestock transport subjects lamps to higher levels of biological contamination, cleaning chemicals, pressure washing, and physical impact. LED Autolamps reflects this in a separate 1-year warranty for livestock transport use — the standard 5-year warranty applies to all other applications.

What is the IP rating on the 41BLMCSB?

The 41BLMCSB is rated IP67 — fully sealed against dust and water immersion.

What warranty does the 41BLMCSB carry?

The 41BLMCSB is backed by a 5-year warranty for standard applications and a 1-year warranty for livestock transport applications.
