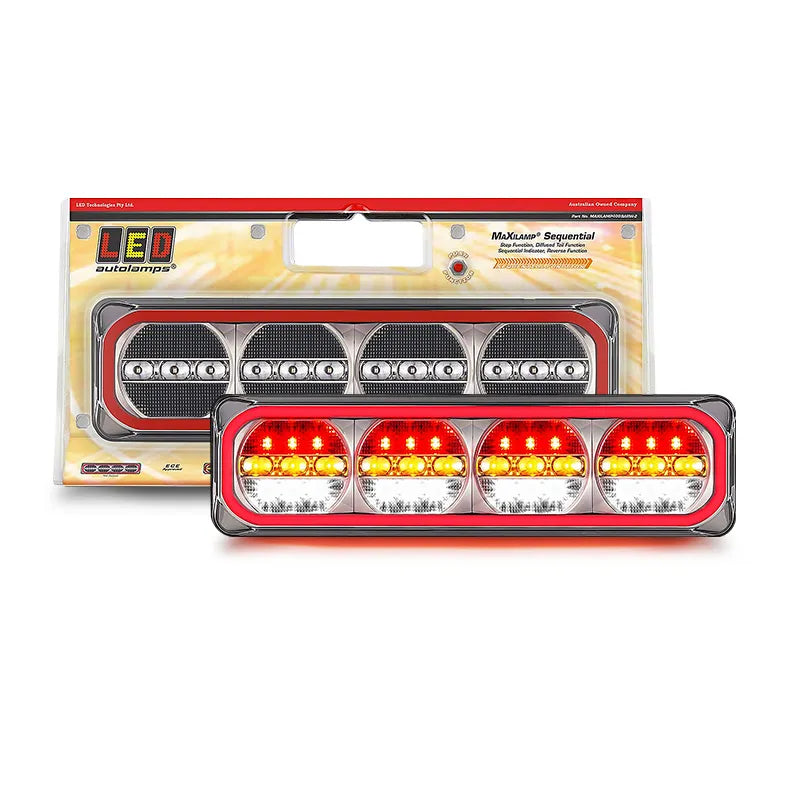

LED Autolamps 385ARWM-2 Multi Volt Stop/Tail/Ind/Rev Try Me Function Twin Blister

Stand Out on the Road LED Autolamps 385 Series Sequential Indicator Combination Lamp Pair.

Product Overview

The LED Autolamps 385ARWM-2 is a pair of 385 Series Maxilamp rear combination lamps delivering stop, tail, sequential indicator, and reverse functions sold as a matched left and right pair in a twin blister pack. The standout feature is the sequential indicator: rather than a standard on/off flash, the amber LEDs sweep outwards in a dynamic sequence pattern, making these lamps a highly visible, modern-looking choice for trailers, caravans, 4x4 tray builds, and light commercial vehicles.

Each lamp measures 387mm x 105mm x 30.5mm and contains 112 LEDs across all functions. The diffused tail function provides an even, soft tail light glow, while a PMMA lens over an ABS base delivers durability and UV resistance. The innovated concealed mounting base system separates the base plate from the lamp body the base mounts flat to the surface with screws (hidden from view), and the lamp body clips on cleanly with no visible fasteners for a sleek, professional finish. Pre-wired with a 40cm cable and backed by a 5-year warranty.

Key Specifications

• Functions: Stop, tail, sequential indicator, reverse
• LED count: 112 per lamp
• Lens material: PMMA
• Base material: ABS
• Dimensions: 387mm x 105mm x 30.5mm
• Mount type: Concealed base plate horizontal surface mount, screws provided, lamp clips onto base
• Cable length: 40cm
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Current draw: 0.37A @ 13.8V / 0.19A @ 28V
• Compliance: ADR and ECE approved
• Warranty: 5 years
• Pack quantity: 2 lamps (1 left, 1 right) twin blister pack
• Brand: LED Autolamps
• SKU: 385ARWM-2

Features & Benefits

• Sequential indicator: Dynamic sweeping LED indicator sequence provides dramatically improved visibility compared to standard on/off flash indicators a premium feature typically associated with high-end European vehicles
• Diffused tail function: Even, soft diffused tail light output delivers a premium appearance with consistent illumination across the full lamp face
• 112 LEDs per lamp: High LED count across all four functions ensures bright, clearly visible output for all operational modes
• Concealed mounting system: The innovative base plate design mounts to the surface with screws hidden behind the lamp body no visible fasteners for a sleek, professional finished appearance
• PMMA lens: Durable, UV-resistant lens material maintains clarity and appearance over years of outdoor exposure
• 40cm cable: Pre-wired with a 40cm lead for straightforward connection during installation
• Sold as a matched pair: One left and one right lamp included per twin blister pack for a complete rear lighting solution
• ADR and ECE approved: Fully compliant with Australian Design Rules and ECE standards for all four lamp functions
• IP67 weatherproof: Completely protected against dust ingress and temporary water immersion
• 12V and 24V compatible: Multivolt operation suits passenger vehicle and caravan trailers through to 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Suits 12V and 24V vehicles and trailers including:

• 4x4 tray vehicles and ute tray builds
• Small to medium trucks and trailers
• Caravans and camper trailers
• Box trailers, car trailers, and boat trailers

Pairs well with:

• LED Autolamps 35CARM red/amber side marker
• LED Autolamps 42AM amber side direction indicator
• LED Autolamps 42WM white front position marker
• LED Autolamps 7030A amber and 7030R red self-adhesive reflectors

Frequently Asked Questions

What makes the indicator on this lamp "sequential"?

Rather than a standard on/off flash, the sequential indicator LEDs sweep outwards in a dynamic sequence a premium indicator style popularised by high-end European vehicle manufacturers. It provides significantly greater visual impact and road presence compared to standard indicators.

How many lamps are included in this pack?

The 385ARWM-2 twin blister pack includes two lamps one left and one right providing a complete matched pair for rear fitment on a single vehicle or trailer.

How does the concealed mounting system work?

The base plate separates from the lamp body and mounts to the vehicle surface using screws that are hidden behind the lamp when it is clipped into place. This leaves no visible fasteners on the finished installation for a clean, modern appearance.

Is this lamp ADR and ECE approved for Australian road use?

Yes the 385ARWM-2 is both ADR and ECE approved across all four functions, confirming it meets Australian legal requirements for road use on trailers and commercial vehicles.

What is the current draw of these lamps?

Each lamp draws a maximum of 0.37A at 13.8V (12V system) and 0.19A at 28V (24V system) a low electrical load for a 112 LED, four-function combination lamp.
