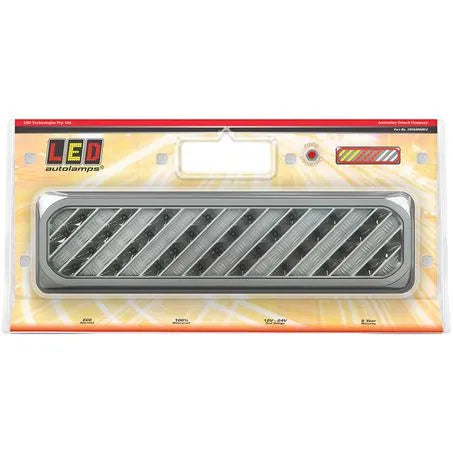

LED Autolamps 3856ARWM-2 Checker Plate Blister Try Me Function-Stop/Tail/Ind/Rev
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 3856ARWM-2 Checker Plate Blister Try Me Function-Stop/Tail/Ind/Rev

SKU: 3856ARWM2
Price
$605
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Checker Plate Stop/Tail/Indicator/Reverse Twin Pack Try Me, Diffused Tail, Harness Plug, IP67

Product Overview

The LED Autolamps 3856ARWM-2 is the twin blister pack variant of the 3856 checker plate series, with a built-in Try Me function for in-store demonstration. Covering stop, tail, indicator, and reverse with diffused tail function and cable harness plug, it delivers the same checker plate lens aesthetic as the individual 3856ARWMLCSB and 3856ARWMRCSB variants in a convenient twin pack that shows buyers the lamp's output before installation.

ADR approved, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

  • Checker plate lens — distinctive grid-pattern design for a premium, recognisable rear lighting appearance
  • Try Me function — in-blister demo button cycles through all lamp functions so buyers can see the output before purchasing
  • Twin blister pack — both lamps supplied for a complete left and right rear installation
  • Diffused tail function — smooth, even tail light output across the checker plate lens face
  • Cable harness plug — plug-and-play wiring connection for faster, cleaner installation
  • Stop, tail, indicator, and reverse — four rear lighting functions
  • ADR approved — meets Australian Design Rules for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 3856ARWM-2
Pack Contents 2 lamps
Lamp Type Stop / Tail / Indicator / Reverse
Lens Checker plate pattern
Tail Function Diffused
Demo Function Try Me (in-blister)
Voltage Range 12V / 24V
Dimensions 387mm x 105mm x 30.5mm
Connector Cable harness plug
Mounting Surface mount
Protection Rating IP67
Compliance ADR
Warranty 5 years

Compatible With / Goes Well With

  • Caravans, trailers, and custom builds requiring a complete checker plate rear lighting set
  • 12V light vehicles and 24V heavy transport applications
  • LED Autolamps 3856ARWMLCSB (LHS individual, same checker plate series)
  • LED Autolamps 3856ARWMRCSB (RHS individual, same checker plate series)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 3856ARWM-2 approved for road use in Australia?

Yes. The 3856ARWM-2 is ADR approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.

What is the Try Me function?

The Try Me function is a built-in demo button on the blister pack that cycles through the lamp's stop, tail, indicator, and reverse outputs — including the diffused tail — so buyers can see the checker plate lens in action before purchasing.

How does the 3856ARWM-2 differ from the 3856 individual variants?

The 3856ARWM-2 is a non-handed twin pack with a Try Me demo feature — suited to buyers choosing this lamp for the first time or for retail display. The 3856ARWMLCSB and 3856ARWMRCSB are the individual LHS and RHS handed variants without the demo feature.

Is the 3856ARWM-2 supplied as a left and right pair?

Yes. The twin pack supplies both lamps for a complete left and right rear installation.

What warranty does the 3856ARWM-2 carry?

The 3856ARWM-2 is backed by a 5-year warranty from LED Autolamps.
