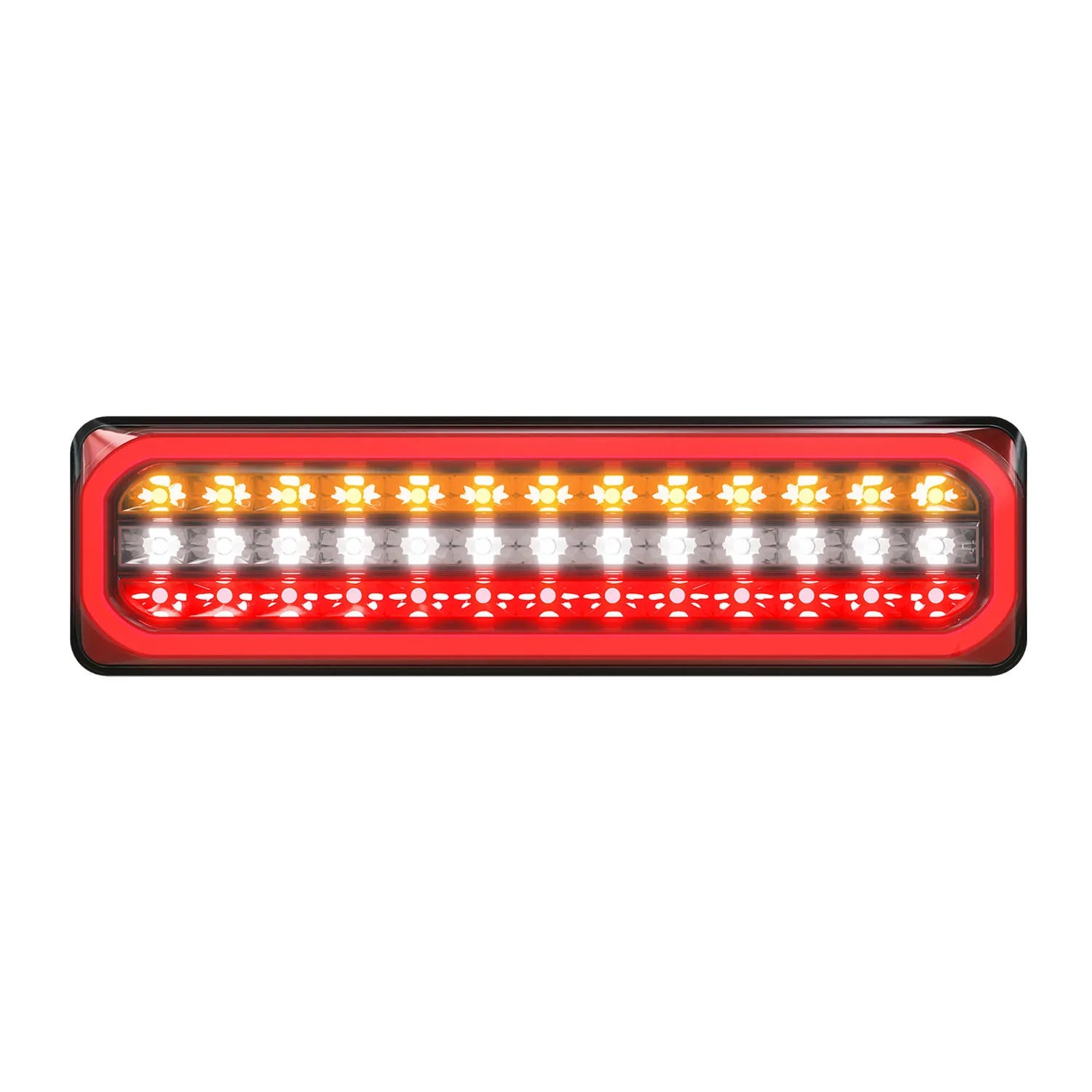

LED Autolamps 3853ARWMLCSB Stop/Tail/Indicator/Reverse Diffused Tail Sequential
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 3853ARWMLCSB Stop/Tail/Indicator/Reverse Diffused Tail Sequential

SKU: 3853ARWMLCSB
Price
$307
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 3853ARWMLCSB LHS Stop Tail Indicator and Reverse Combination Lamp Sequential Indicator Diffused Tail 385mm x 104mm x 31mm LHS Plug ADR/ECE Approved CTA060020 IP67 Box

The LED Autolamps 3853ARWMLCSB is the left-hand side 3853 series stop/tail/indicator/reverse combination lamp with sequential indicator, diffused tail function, and LHS plug in a 385mm x 104mm x 31mm black housing. ADR/ECE approved (CTA060020), IP67 waterproof. Supplied in box packaging. Five-year warranty. Sold individually.

Product overview

The 3853ARWMLCSB is the box-packaged left-hand side version of the 3853ARWM-2, sharing the same sequential indicator, diffused tail function, 385mm x 104mm x 31mm housing, and ADR/ECE CTA060020 approval. The LHS-specific plug suits direct connection into compatible harness wiring systems on the left side. Suited to trade and installer purchase or single-side replacement. 12-24V compatible. IP67 rated.

Features and benefits

Left-hand side lamp with LHS plug: LHS-specific for correct rear panel positioning and direct harness connection.

Stop, tail, indicator, and reverse in one unit: Four-function rear combination lamp.

Sequential indicator: LEDs activate in a sweeping pattern for a distinctive, high-visibility turn signal output.

Diffused tail function: Even light spread across the tail lamp face for a clean, uniform appearance.

385mm x 104mm x 31mm black housing.

ADR/ECE approved (CTA060020): Compliant for road use in Australia.

IP67 fully waterproof and submersible.

12V and 24V compatible.

Box packaging.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 3853ARWMLCSB
Brand LED Autolamps
Type Stop/tail/indicator/reverse combination lamp
Side Left (LHS)
Light Type LED
Indicator Style Sequential
Tail Function Diffused
Housing Colour Black
Connector LHS plug
Operating Voltage 12V to 24V
Dimensions 385mm x 104mm x 31mm
Waterproof Rating IP67
ADR/ECE Compliance CTA060020
Packaging Box
Weight 0.6kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 3853ARWMLCSB ADR and ECE approved?

Yes. The 3853ARWMLCSB holds ADR/ECE approval CTA060020, confirming compliance for road use in Australia.

Is the 3853ARWMLCSB left or right hand side?

The 3853ARWMLCSB is the left-hand side lamp. For the right-hand side lamp, see the 3853ARWMRCSB.

What is the difference between the 3853ARWMLCSB and the 3853ARWM-2?

The 3853ARWMLCSB is the left-hand side lamp only in box packaging with a LHS plug, suited to single-side replacement or trade purchase. The 3853ARWM-2 is a twin blister pack containing both LHS and RHS lamps and includes a Try Me function.

What voltage does the 3853ARWMLCSB operate on?

The 3853ARWMLCSB operates on 12V and 24V systems.

Is the 3853ARWMLCSB sold as a single unit or a pair?

Sold individually as the left-hand side lamp only.
