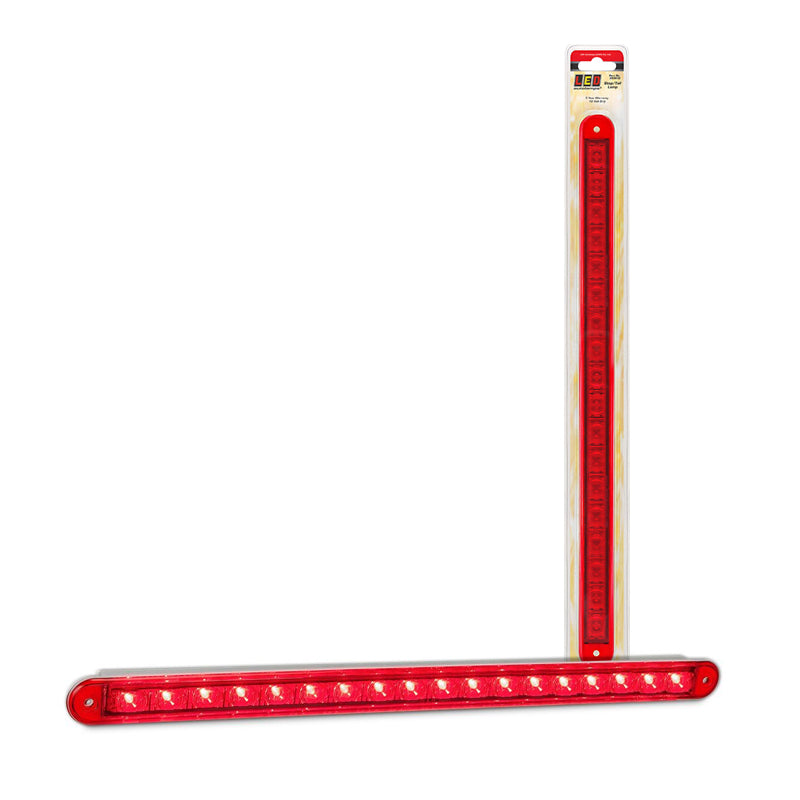

LED Autolamps 380R12 12V Stop Stop/Tail Strip Lamp 18 Square LEDs Recessed Mount
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 380R12 12V Stop Stop/Tail Strip Lamp 18 Square LEDs Recessed Mount

SKU: 380R12
Price
$78
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 380R12 12V Stop Tail Strip Lamp 18 Square LEDs 382mm x 25mm x 3mm Recessed Mount ADR Approved CTA060045 IP67

The LED Autolamps 380R12 is a 12V LED stop/tail strip lamp with 18 square LEDs in a 382mm x 25mm x 3mm low-profile recessed housing. ADR approved (CTA060045), IP67 waterproof. Five-year warranty. Sold individually.

Product overview

The 380R12 is the stop/tail counterpart to the 380A12 indicator strip lamp in the 380 series, sharing the same 382mm x 25mm x 3mm ultra-slim recessed format and ADR approval CTA060045. The 18 square red LED array delivers a distinctive stop/tail output across the 382mm strip face. 12V only. IP67 rated.

Features and benefits

18 square red LEDs across a 382mm strip: Distinctive stop/tail output in a low-profile recessed format.

382mm x 25mm x 3mm ultra-slim housing: 3mm depth for flush recessed panel installation.

Recessed mount.

ADR approved (CTA060045): Compliant for road use in Australia as a stop/tail lamp.

IP67 fully waterproof and submersible.

12V only.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 380R12
Brand LED Autolamps
Series 380
Type Stop/tail strip lamp
Light Type LED
LED Count 18 square
LED Colour Red
Operating Voltage 12V
Mount Type Recessed
Dimensions 382mm x 25mm x 3mm
Waterproof Rating IP67
ADR Compliance CTA060045
Weight 0.159kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 380R12 ADR approved?

Yes. The 380R12 holds ADR approval CTA060045, confirming compliance for road use in Australia as a stop/tail lamp.

How does the 380R12 relate to the 380A12?

The 380R12 is the stop/tail lamp and the 380A12 is the indicator lamp in the 380 series. Both share the same 382mm x 25mm x 3mm recessed format and ADR CTA060045 approval for a matched rear lighting installation.

What makes the 380R12 suited to recessed installations?

The 380R12 measures 382mm x 25mm x 3mm. The 3mm depth allows flush recessed panel installation with minimal protrusion behind the mounting surface.

What voltage does the 380R12 operate on?

The 380R12 is 12V only and is not suitable for 24V systems.

Is the 380R12 sold as a single unit or a pair?

Sold individually.
