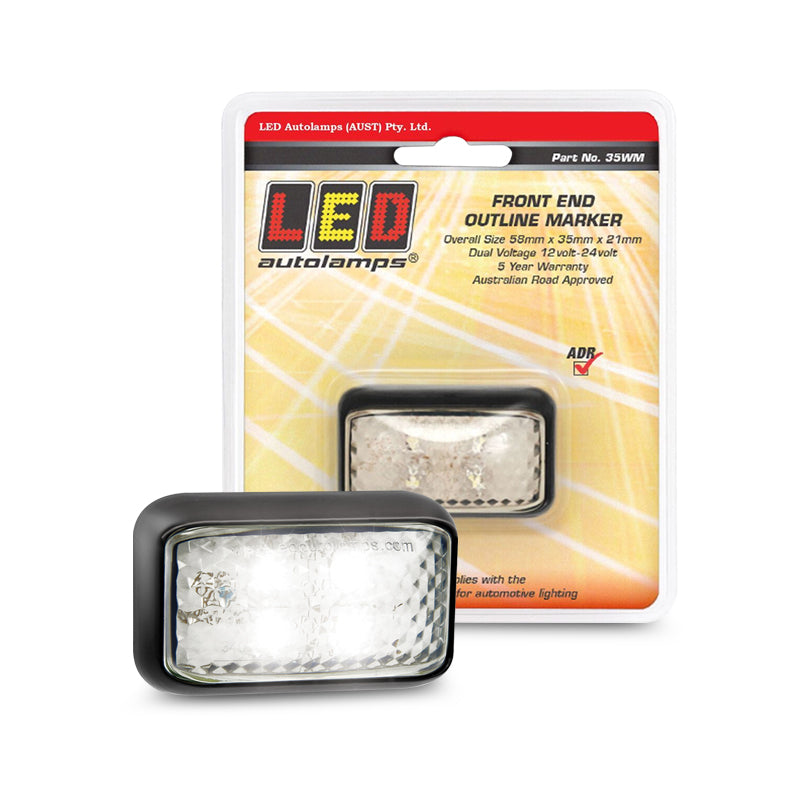

LED Autolamps 35WM 10/30V Front Outline Position Marker 4 White LEDs 40cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 35WM 10/30V Front Outline Position Marker 4 White LEDs 40cm Wire

SKU: 35WM
Price
$83
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 35WM 10-30V Front Outline Position Marker 4 White LEDs 58mm x 35mm x 21mm 28mm Centres 40cm Wire ADR Approved CTA060076 ADR 49/00 IP67

The LED Autolamps 35WM is a 10-30V LED front outline position marker with 4 white LEDs in a 58mm x 35mm x 21mm black housing. 28mm mounting centres, 40cm pre-wired cable, surface mount. ADR approved (CTA060076, CRN 34008, ADR 49/00), IP67 waterproof, 0.05A at 13.8V. Five-year warranty. Sold individually.

Product overview

The 35WM is a white LED front outline position marker suited to trailers, caravans, trucks, and commercial vehicles requiring an ADR-compliant front position marker. ADR approval CTA060076 with CRN 34008 and ADR 49/00 confirms road-legal compliance in Australia. The 10-30V operating range covers 12V and 24V systems. 28mm mounting centres, 40cm cable. IP67 rated.

Features and benefits

4 white LEDs: Front outline position marker output in the 58mm x 35mm x 21mm compact 35 series format.

Black housing.

58mm x 35mm x 21mm compact housing.

28mm mounting centres: Compact fixing point spacing.

40cm pre-wired cable: Cable for connection at the mounting point.

ADR approved (CTA060076, CRN 34008, ADR 49/00): Compliant for road use in Australia.

IP67 fully waterproof and submersible.

0.05A current draw at 13.8V.

10-30V operating range: Covers 12V and 24V systems.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 35WM
Brand LED Autolamps
Type Front outline position marker lamp
Light Type LED
LED Count 4
LED Colour White
Housing Colour Black
Operating Voltage 10V to 30V
Current Draw 0.05A at 13.8V
Mount Type Surface mount
Mounting Centres 28mm
Cable Length 40cm
Dimensions 58mm x 35mm x 21mm
Waterproof Rating IP67
ADR Compliance CTA060076
Compliance References CRN 34008, ADR 49/00
Weight 0.1kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 35WM ADR approved?

Yes. The 35WM holds ADR approval CTA060076 with compliance references CRN 34008 and ADR 49/00, confirming road-legal compliance in Australia as a front outline position marker lamp.

What is a front outline position marker lamp?

A front outline position marker lamp is fitted to the front of trailers and wide vehicles to mark their presence and width when viewed from the front. ADR 49/00 sets the Australian requirements for position marker lamps on trailers and commercial vehicles.

What are the mounting centres on the 35WM?

The 35WM has 28mm mounting centres between fixing points.

What voltage does the 35WM operate on?

The 35WM operates from 10V to 30V, covering 12V and 24V systems.

Is the 35WM sold as a single unit or a pair?

Sold individually.
