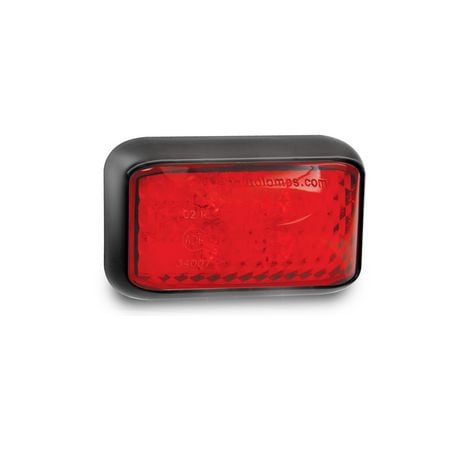

LED Autolamps 35RM 10/30V Rear Position Marker Red LED With 40cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 35RM 10/30V Rear Position Marker Red LED With 40cm Wire

SKU: 35RM
Price
$49
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Red LED Rear Position Marker Chrome Base, ADR CRN 34007, 10–30V, Clip-In Lens, 40cm Cable.

Product Overview

The LED Autolamps 35RM is a red LED rear position marker lamp from the 35 Series the red rear marker companion completing the full 35 Series range alongside the white 35WM (front position), amber 35AM/35AMB (side direction indicator), and red/amber 35ARM/35ARMB (side marker). The chrome base variant, the 35RM measures 58mm x 35mm x 21mm with 28mm centre-to-centre bolt mounting and a 40cm pre-wired cable.

ADR approved (CRN 34007, CTA060078, ADR 49/00) and operating across a broad 10–30V voltage range, the 35RM delivers legal red rear position marker output at just 0.1A at 13.8V. The clip-in replaceable lens allows easy maintenance without removing the bracket from the mounting surface. IP67 rated, backed by LED Autolamps' 5-year warranty, and supplied in polybag packaging as a single unit.

Key Specifications

  • Function: Red rear position marker
  • LED colour: Red
  • Housing/bracket colour: Chrome
  • Dimensions: 58mm x 35mm x 21mm
  • Centre-to-centre mounting: 28mm
  • Cable: 40cm pre-wired
  • Mount type: Surface mount clip-in lens
  • IP rating: IP67
  • Input voltage: 10–30V DC (multivolt)
  • Current draw: 0.1A @ 13.8V
  • Compliance: ADR 49/00 CRN 34007, CTA060078
  • Warranty: 5 years
  • Packaging: Polybag single unit
  • Brand: LED Autolamps
  • SKU: 35RM

Features & Benefits

  • Red rear position marker: ADR-compliant red rear end outline marker for the rear of trailers, caravans, and commercial vehicles
  • Dual ADR compliance: CRN 34007 and CTA060078 confirm compliance under ADR 49/00 for broad legal coverage
  • Chrome base bracket: Classic chrome finish same chrome base convention as the 35WM and 35AM
  • Clip-in replaceable lens: Lens clips in and out without removing the bracket for fast maintenance
  • 40cm pre-wired cable: Generous lead length for most mounting locations
  • 28mm centre-to-centre mounting: Standard two-bolt spacing for straightforward surface installation
  • 10–30V multivolt: Covers 12V and 24V systems
  • 0.1A current draw: Minimal electrical load suitable for multi-lamp installations
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 35RM
Brand LED Autolamps
Series 35 Series
Function Red Rear Position Marker
LED Colour Red
Housing/Bracket Chrome
Dimensions 58mm x 35mm x 21mm
Centre-to-Centre Mounting 28mm
Cable Length 40cm
Mount Type Surface mount clip-in lens
IP Rating IP67
Input Voltage 10–30V DC (multivolt)
Current Draw 0.1A @ 13.8V
ADR Compliance ADR 49/00 CRN 34007, CTA060078
Warranty 5 Years
Packaging Polybag single unit

Compatible With

Universal suits all 10–30V trailers, caravans, and commercial vehicles requiring red ADR-compliant rear position markers including:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks
  • Agricultural and construction trailers

Frequently Asked Questions

Is this lamp ADR approved for Australian road use?

Yes the 35RM is ADR approved under ADR 49/00 with CRN 34007 and CTA060078, confirming legal compliance for red rear position marker use on Australian road vehicles and trailers.

What is the voltage range of this lamp?

The 35RM operates on 10–30V DC broader than the standard 12–24V covering both 12V and 24V systems and a wider range of vehicle voltages.

Can the lens be replaced without removing the bracket?

Yes the clip-in lens design allows lens removal and replacement without removing the bracket from the mounting surface.

What is the difference between the 35RM and the 42RM?

The 35RM is a red rear position marker in the smaller 58mm x 35mm x 21mm 35 Series form factor. The 42RM is a red rear end outline marker in the larger 74mm x 38mm x 35mm 42 Series form factor. Both are ADR approved but differ in size and compliance codes confirm which suits your application.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
