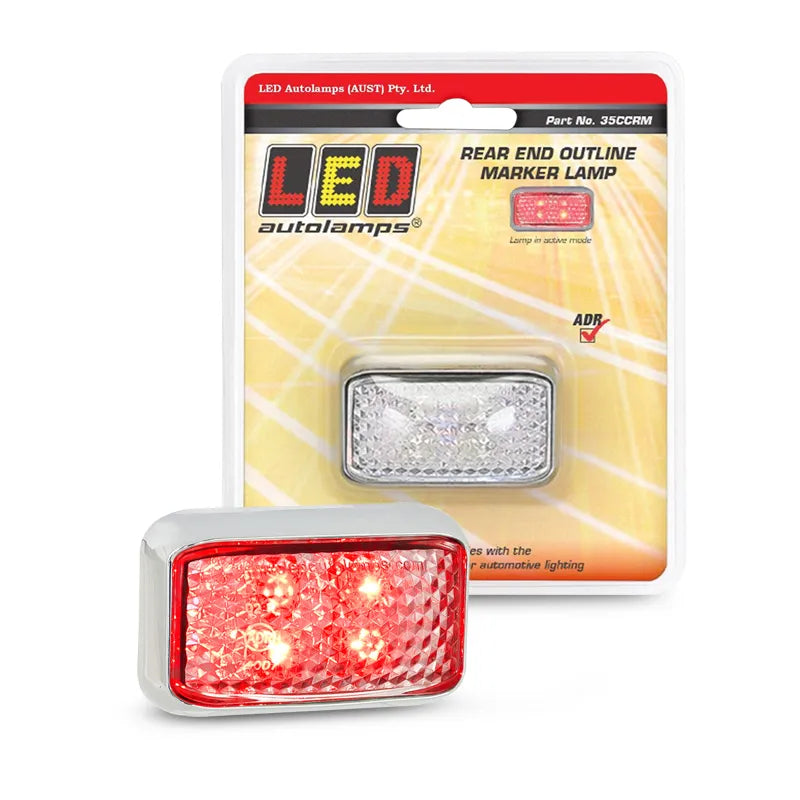

LED Autolamps 35CCRM 12-24V Red Side Marker Clear
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 35CCRM 12-24V Red Side Marker Clear

SKU: 35CCRM
Price
$43
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 12/24V Chrome Red Side Marker Clear Lens, 76x42mm, IP67, Multiple Cable Options

Product Overview

The LED Autolamps 35CCRM is a 12/24V red side marker lamp in a chrome bracket with a clear lens, measuring 76mm x 42mm x 30mm and supplied with a 40cm cable. The red-only side marker counterpart to the 35CCARM dual-colour variant, it delivers red marker output through a clear lens for a clean, modern appearance when inactive.

ADR approved, IP67 rated, available in black and chrome bracket with 40cm, 1m, or 6m cable options including a plug-in variant.

Features & Benefits

  • Chrome bracket — premium polished finish for trucks, commercial vehicles, and custom builds
  • Clear lens with red LED output — clean, unobtrusive appearance when inactive; red marker activates when energised
  • Red-only output — suited to rear position or side red marker applications
  • Multiple cable options — available with 40cm, 1m, or 6m cable and plug-in option; confirm required variant with F.A.E.
  • Available in black and chrome bracket — match the bracket finish to the vehicle or trailer
  • ADR approved — meets Australian Design Rules for legal on-road use as a side marker lamp
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport

Technical Specs

Specification Detail
SKU 35CCRM
Lamp Type Side Marker
LED Colour Red
Lens Colour Clear
Bracket Colour Chrome
Voltage Range 12V / 24V
Dimensions 76mm x 42mm x 30mm
Cable Length 400mm (40cm)
Mounting Surface mount
Protection Rating IP67
Compliance ADR

Compatible With / Goes Well With

  • Trucks, trailers, and commercial vehicles requiring chrome-finish red side marker lamps
  • 12V and 24V vehicle electrical systems
  • LED Autolamps 35CCARM chrome red/amber dual-colour side marker (same chrome series)
  • LED Autolamps 35CCAM chrome amber side indicator (same chrome series)
  • LED Autolamps 35CCWM chrome white front marker (same chrome series)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 35CCRM approved for road use in Australia?

Yes. The 35CCRM is ADR approved, meeting Australian Design Rules requirements for legal on-road use as a side marker lamp.

How does the 35CCRM differ from the 35CCARM?

The 35CCRM outputs red only through a clear lens, while the 35CCARM outputs both red and amber for dual-direction lateral visibility compliance. Both share the same 76mm x 42mm chrome bracket form factor and cable options.

Why does the 35CCRM have a clear lens?

The clear lens gives the lamp a clean, modern appearance when inactive — the red output is produced by the LEDs when energised, rather than a permanently red-tinted lens.

What cable length options are available?

The 35CCRM is available with 40cm, 1m, or 6m cable including a plug-in option — the 40cm variant is this listing. Longer cable variants are available; confirm the required length with F.A.E. when ordering.

What warranty does the 35CCRM carry?

Warranty information was not confirmed in available supplier data.
