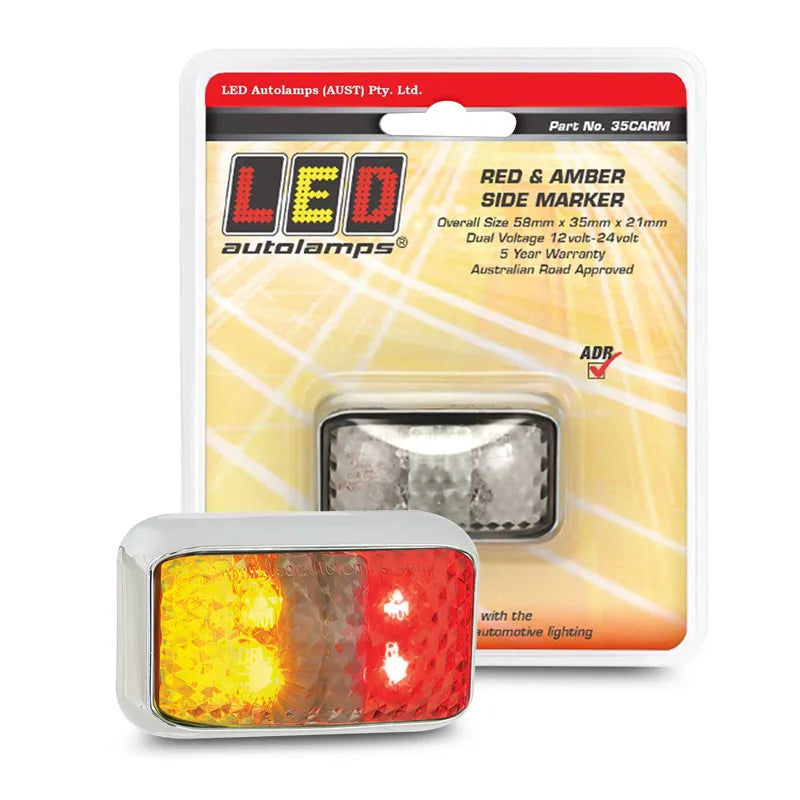

LED Autolamps 35CARM Side Marker Light Red/Amber LED 12 or 24V

ADR-Approved Red/Amber LED Side Marker Chrome Housing, IP67, 5-Year Warranty.

Product Overview

The LED Autolamps 35CARM is a compact red and amber LED side marker light designed for trailer, caravan, truck, and commercial vehicle applications where ADR-compliant side identification is required. Housed in a chrome finish casing and measuring 58mm x 35mm x 21mm, this low-profile surface mount lamp provides red and amber illumination for side marker use across a wide range of vehicle and trailer types.

ADR approved (CTA060078) and IP67 rated for complete weatherproof protection, the 35CARM operates on both 12V and 24V systems. Trusted by trailer manufacturers and auto electricians across Australia, this is a reliable, long-lasting side marker solution backed by LED Autolamps' 5-year warranty. Supplied as a single unit in blister packaging.

Key Specifications

• Function: Side marker light (clearance/marker)
• LED colours: Red and amber
• Light type: LED
• Housing colour: Chrome
• Dimensions: 58mm x 35mm x 21mm
• Mount type: Surface mount
• IP rating: IP67
• Input voltage: 12V or 24V
• Compliance: ADR approved CTA060078
• Warranty: 5 years
• Weight: 0.054kg
• Packaging: Blister pack (single unit)
• Brand: LED Autolamps
• SKU: 35CARM

Features & Benefits

• Red and amber LED illumination: Single unit delivers both red and amber LED output for side marker applications requiring dual-colour identification
• Chrome housing: Premium chrome finish suits professional trailer and commercial vehicle builds with a clean, polished appearance
• ADR approved CTA060078: Fully compliant with Australian Design Rules for legal use as a side marker on Australian road vehicles and trailers
• IP67 weatherproof: Completely protected against dust ingress and temporary water immersion, reliable in demanding Australian road and outdoor conditions
• 12V and 24V compatible: Suits both standard 12V trailer and caravan applications and 24V commercial truck systems
• Surface mount design: Low-profile 58mm x 35mm footprint for clean, flush mounting on trailer side rails, body panels, and structural members
• 5-year warranty: Backed by LED Autolamps' 5-year product warranty for long-term confidence in reliability

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring ADR-compliant side markers including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers
• Any vehicle requiring ADR-compliant side marker identification

Pairs well with:

• LED Autolamps combination lamps and trailer lighting range
• LED Autolamps MAXILAMPC3XR stop/tail/indicator combination lamp
• LED Autolamps 7030R red self-adhesive reflectors

Frequently Asked Questions

Does this lamp produce both red and amber light simultaneously?

Yes the 35CARM contains both red and amber LEDs in a single unit, producing combined red/amber illumination for side marker applications requiring dual-colour output.

Is this lamp ADR approved for Australian road use?

Yes the 35CARM is ADR approved under CTA060078, confirming it meets Australian legal requirements for side marker lighting on trailers and road vehicles.

What voltage systems is this lamp compatible with?

The 35CARM is compatible with both 12V and 24V systems, covering standard passenger and caravan trailer applications through to 24V commercial trucks.

What mount type does this lamp use?

The 35CARM uses a surface mount design, fitting flat against trailer side rails, body panels, and structural members for a clean, low-profile result.

What is covered under the 5-year warranty?

The 5-year warranty is provided by LED Autolamps and covers manufacturing defects. Contact your retailer or LED Autolamps directly for warranty claim procedures and terms.
