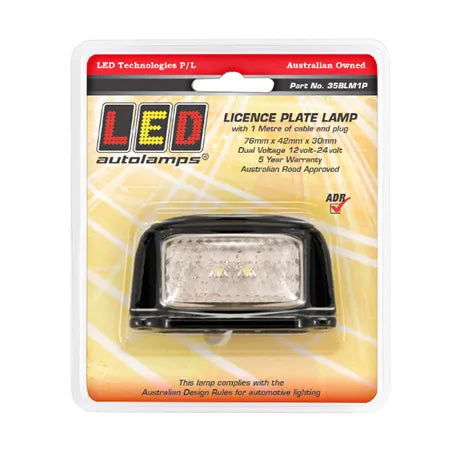

LED Autolamps 35BLM1P Licence Plate Lamp Black Bracket Multi Volt With 1m Cable
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 35BLM1P Licence Plate Lamp Black Bracket Multi Volt With 1m Cable

SKU: 35BLM1P
Price
$69
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 35BLM1P 12-24V Licence Plate Lamp Black Bracket 76mm x 42mm x 30mm 64mm Mounting Centres 1m Cable with 2-Pin Plug ADR Approved CTA060024 ADR 48/00 IP67

The LED Autolamps 35BLM1P is a 12-24V LED licence plate lamp with black bracket in a 76mm x 42mm x 30mm housing. 64mm mounting centres, 1m cable with 2-pin plug, surface mount. ADR approved (CTA060024, ADR 48/00), IP67 waterproof, 0.02A at 13.8V, white LED. Five-year warranty. Note: one lamp only is required for ADR 48/00 compliance. Sold individually.

Product overview

The 35BLM1P is the long-cable version of the 35BLM licence plate lamp, sharing the same 76mm x 42mm x 30mm housing, black bracket, ADR CTA060024 and ADR 48/00 approval, and IP67 rating — with a 1m cable terminated with a 2-pin plug for installations where a longer cable run is required between the lamp and the wiring connection point. One lamp is required for ADR 48/00 compliance. 12-24V compatible. IP67 rated.

Features and benefits

ADR approved (CTA060024, ADR 48/00): Compliant for road use in Australia as a licence plate lamp.

One lamp required for ADR compliance: A single 35BLM1P meets ADR 48/00 requirements.

1m cable with 2-pin plug: Extended cable run for installations with a longer distance between the lamp and the connection point.

76mm x 42mm x 30mm housing.

64mm mounting centres.

Black bracket included.

White LED output.

IP67 fully waterproof and submersible.

0.02A current draw at 13.8V.

12V and 24V compatible.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 35BLM1P
Brand LED Autolamps
Type Licence plate lamp
Light Type LED
LED Colour White
Housing Colour Black
Bracket Black, included
Operating Voltage 12V to 24V
Current Draw 0.02A at 13.8V
Mount Type Surface mount
Mounting Centres 64mm
Cable Length 1m
Connector 2-pin plug
Dimensions 76mm x 42mm x 30mm
Waterproof Rating IP67
ADR Compliance CTA060024, ADR 48/00
Weight 0.1kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 35BLM1P ADR approved?

Yes. The 35BLM1P holds ADR approval CTA060024 and meets ADR 48/00, confirming compliance for road use in Australia as a licence plate lamp.

How many 35BLM1P lamps are required for ADR compliance?

Only one lamp is required for ADR 48/00 compliance with the 35BLM1P.

What is the difference between the 35BLM1P and the 35BLM?

The 35BLM1P has a 1m cable terminated with a 2-pin plug, suited to installations with a longer run between the lamp and the connection point. The 35BLM has a 40cm bare wire cable. Both share the same 76mm x 42mm x 30mm dimensions, black bracket, ADR CTA060024 approval, and five-year warranty.

What voltage does the 35BLM1P operate on?

The 35BLM1P operates on 12V and 24V systems.

What is the current draw of the 35BLM1P?

The 35BLM1P draws 0.02A at 13.8V.
