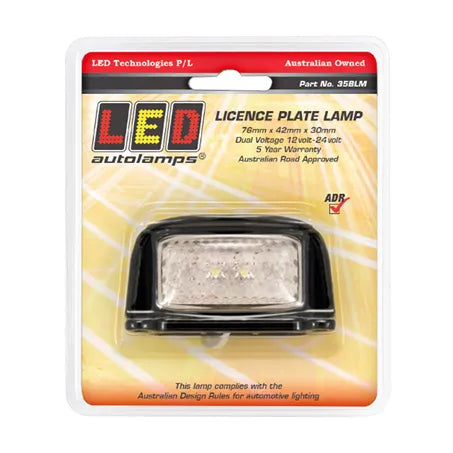

LED Autolamps 35BLM Licence Plate Lamp Black Bracket Multi Volt With 40cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 35BLM Licence Plate Lamp Black Bracket Multi Volt With 40cm Wire

SKU: 35BLM
Price
$35
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 48/00 Approved 12/24V Licence Plate Lamp Black Bracket, 40cm Wire, One Lamp for Compliance

Product Overview

The LED Autolamps 35BLM is a 12/24V LED licence plate lamp with a black bracket and 40cm pre-wired lead, measuring 76mm x 42mm x 30mm with a 64mm centre-to-centre mount. Like the 35CLM, only one lamp is required to meet ADR 48/00 compliance making it a simple, no-over-specification installation. The black bracket gives it a clean, practical appearance suited to a wide range of trailer and vehicle rear panel styles.

Drawing just 0.02A at 13.8V, IP67 rated.

Features & Benefits

  • Black bracket — clean finish suits a wide range of trailer and vehicle rear panel aesthetics
  • 40cm pre-wired cable — longer lead than the 30 series (0.14m) for more flexible routing to the number plate
  • One lamp required for ADR compliance — a single 35BLM satisfies ADR 48/00 requirements
  • White LED output — bright, clear white light for effective number plate illumination
  • ADR 48/00 approved — meets Australian Design Rules for legal on-road use as a licence plate lamp
  • IP67 rated — fully sealed against dust and water immersion
  • Very low current draw — 0.02A at 13.8V
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 64mm centre-to-centre mount — confirm against your bracket before installation

Technical Specs

Specification Detail
SKU 35BLM
Lamp Type Licence Plate Light
LED Colour White
Voltage Range 12V – 24V
Dimensions 76mm x 42mm x 30mm
Mount Centre-to-Centre 64mm
Current Draw 0.02A @ 13.8V
Cable Length 0.4m
Housing Colour Black
Mounting Surface mount
Protection Rating IP67
Compliance ADR 48/00
ADR Note One lamp required for compliance

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring ADR 48/00 compliant licence plate illumination
  • 12V light vehicles and 24V heavy transport applications
  • LED Autolamps 35CLM (same single-lamp compliance concept, different bracket finish)
  • LED Autolamps 30BLM (two-lamp compliance variant — smaller 65mm form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

How many 35BLM lamps are required for ADR compliance?

Only one lamp is required to meet ADR 48/00 compliance — a single 35BLM provides a fully compliant number plate light installation.

How does the 35BLM differ from the 35CLM?

The 35BLM has a black bracket and a 40cm cable, while the 35CLM's bracket colour was not confirmed. Both share the same single-lamp ADR compliance, 76mm x 42mm form factor, and 0.02A current draw — check with F.A.E. for bracket colour confirmation on the 35CLM.

What colour light does the 35BLM produce?

The 35BLM produces white LED output for clear, effective number plate illumination.

What is the IP rating on the 35BLM?

The 35BLM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed outdoor trailer and vehicle mounting.

What warranty does the 35BLM carry?

Warranty information was not confirmed in available supplier data — contact F.A.E. or LED Autolamps to confirm before purchasing.
