LED Autolamps 35AM 10/30V Side Direction Indicator With 4 LEDs
Click to open expanded view
LED AUTOLAMPS logo

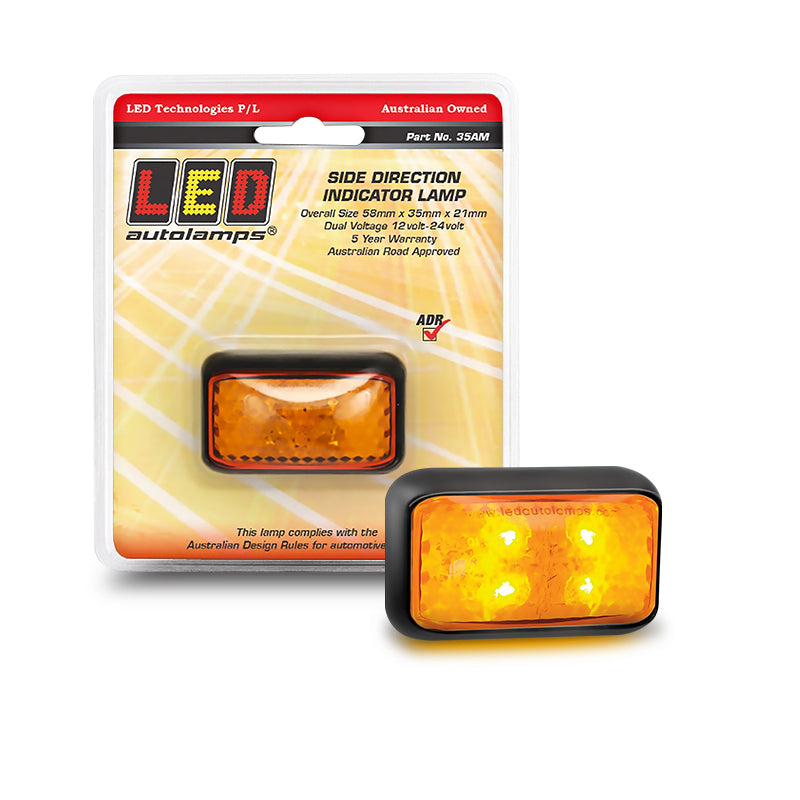

LED Autolamps 35AM 10/30V Side Direction Indicator With 4 LEDs

SKU: 35AM
Price
$46
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 35AM 10-30V Side Direction Indicator 4 LEDs 58mm x 35mm x 21mm 28mm Mounting Centres Pre-Wired ADR Approved CTA060078 ADR 6/00 Category 5 IP67

The LED Autolamps 35AM is a 10-30V LED side direction indicator with 4 LEDs in a 58mm x 35mm x 21mm black housing. 28mm mounting centres, pre-wired, surface mount. ADR approved (CTA060078, ADR 6/00 Category 5, CRN 33894), IP67 waterproof, 0.1A at 13.8V. Five-year warranty. Sold individually.

Product overview

The 35AM is a compact side direction indicator suited to trailers, caravans, trucks, and commercial vehicles requiring an ADR-compliant side-mounted amber indicator. ADR 6/00 Category 5 approval and CTA060078 confirm road-legal use in Australia. The 10-30V operating range covers 12V and 24V electrical systems with tolerance for voltage fluctuations common in transport applications. 28mm mounting centres. Pre-wired for straightforward installation. IP67 rated.

Features and benefits

4 amber LEDs: Compact side direction indicator output in a 58mm x 35mm x 21mm housing.

28mm mounting centres: Compact fixing point spacing for tight installation positions.

ADR approved (CTA060078, ADR 6/00 Category 5, CRN 33894): Compliant for road use in Australia as a side direction indicator.

10-30V operating range: Covers 12V and 24V systems with tolerance for voltage fluctuations.

Pre-wired surface mount.

IP67 fully waterproof and submersible.

0.1A current draw at 13.8V.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 35AM
Brand LED Autolamps
Type Side direction indicator
Light Type LED
LED Count 4
LED Colour Amber
Housing Colour Black
Operating Voltage 10V to 30V
Current Draw 0.1A at 13.8V
Mount Type Surface mount
Mounting Centres 28mm
Connector Pre-wired
Dimensions 58mm x 35mm x 21mm
Waterproof Rating IP67
ADR Compliance CTA060078
ADR Standard ADR 6/00 Category 5, CRN 33894
Weight 0.054kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 35AM ADR approved?

Yes. The 35AM holds ADR approval CTA060078, meeting ADR 6/00 Category 5 (CRN 33894), confirming compliance for road use in Australia as a side direction indicator.

What is ADR 6/00 Category 5?

ADR 6/00 is the Australian Design Rule covering direction indicators. Category 5 refers to the indicator type suited to trailers, caravans, and certain commercial vehicles. The CRN reference confirms the specific compliance record number.

What is the operating voltage of the 35AM?

The 35AM operates from 10V to 30V, covering both 12V and 24V electrical systems and providing tolerance for voltage fluctuations in transport applications.

What are the mounting centres on the 35AM?

The 35AM has 28mm mounting centres between fixing points.

Is the 35AM sold as a single unit or a pair?

Sold individually.
