LED Autolamps 30BLM 12/24V LED Number Plate Light LED With 0.14M Lead (2 Pce)
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 30BLM 12/24V LED Number Plate Light LED With 0.14M Lead (2 Pce)

SKU: 30BLM
5.0 (1)
Price
$54
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR 48/00 Approved 12/24V Number Plate Light Black Housing, Twin Pack, Two Required for Compliance

Product Overview

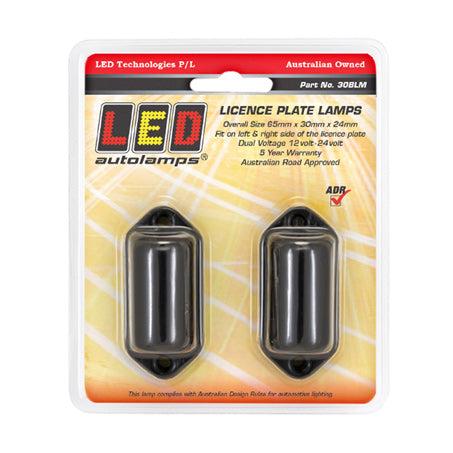

The LED Autolamps 30BLM is the black housing variant of the 30 series number plate light, sharing the same 65mm x 30mm x 24mm steel housing, 0.14m pre-wired cable, and ADR 48/00 approval as the 30CLM chrome variant. Supplied as a 2-piece pack with both lamps required for a compliant installation.

Drawing just 0.02A at 13.8V, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

  • Black housing — clean, unobtrusive finish suits a wide range of trailer and vehicle rear panel aesthetics
  • Steel housing — robust metal construction for durability in transport environments
  • 2-piece pack — both lamps supplied; both are required for ADR 48/00 compliance
  • ADR 48/00 approved — meets Australian Design Rules for licence plate illumination; two lamps required for compliance
  • IP67 rated — fully sealed against dust and water immersion
  • Very low current draw — 0.02A at 13.8V for near-zero impact on vehicle electrical systems
  • 0.14m pre-wired cable — compact cable lead for clean installation near the number plate
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 30BLM
Lamp Type Number Plate Light
Voltage Range 12V – 24V
Dimensions 65mm x 30mm x 24mm
Mount Centre-to-Centre 65mm
Current Draw 0.02A @ 13.8V
Cable Length 0.14m
Housing Steel, black
Mounting Surface mount
Protection Rating IP67
Compliance ADR 48/00
ADR Note Two lamps required for compliance
Packaging 2-piece blister pack
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring ADR 48/00 compliant number plate illumination
  • 12V light vehicles and 24V heavy transport applications
  • LED Autolamps 30CLM (same lamp, chrome base finish)
  • LED Autolamps 35CLM licence plate light (single-lamp ADR compliant alternative)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

How many 30BLM lamps are required for ADR compliance?

Two lamps are required to meet ADR 48/00 compliance — the 2-piece pack supplies both, so a single pack provides a fully compliant installation.

How does the 30BLM differ from the 30CLM?

The 30BLM has a plain black housing, while the 30CLM has a chrome base finish. Both share the same 65mm x 30mm x 24mm steel housing, ADR 48/00 approval, and all other specifications — choose based on the aesthetic that suits your trailer or vehicle.

Is the 30BLM approved for road use in Australia?

Yes. The 30BLM is ADR 48/00 approved, meeting Australian Design Rules requirements for legal on-road use as a number plate light — when two units are fitted as specified.

What is the current draw of the 30BLM?

The 30BLM draws just 0.02A at 13.8V — an extremely low current that has virtually no impact on the vehicle's electrical system.

What warranty does the 30BLM carry?

The 30BLM is backed by a 5-year warranty from LED Autolamps.
