LED Autolamps 2LR12-450CSB 5 Core Tail Light Loom With Load Resistors
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 2LR12-450CSB 5 Core Tail Light Loom With Load Resistors

SKU: 2LR12450CSB
Price
$104
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

450mm Pre-Wired 5-Core Tail Light Loom with Load Resistors CS and DT04-6P Plugs, 12V.

Product Overview

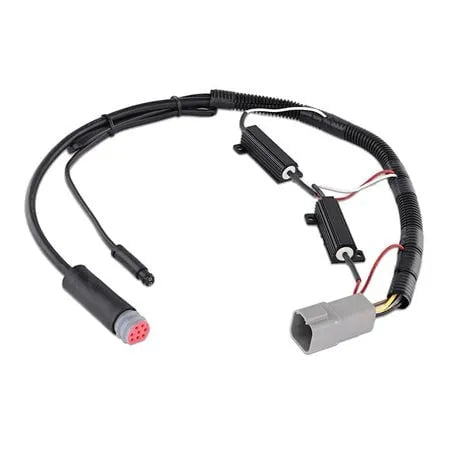

The LED Autolamps 2LR12-450CSB is a pre-wired 5-core 450mm tail light loom with integrated load resistors, designed to adapt standard LED Autolamps rear combination lamps to the patch lead system for use on vehicles with CAN bus lamp failure monitoring. Featuring both CS (Compact Series) and DT04-6P plugs, the 2LR12-450CSB bridges the connection between the rear lamp and the vehicle's patch lead, with the pre-wired load resistors preventing hyper-flash and dashboard error warnings caused by the low current draw of LED lamps.

Suited to the LED Autolamps 355 Series and 385 Series rear combination lamps, the installation sequence is: lamp → 2LR12-450CSB loom → vehicle patch lead → factory vehicle plug. Supplied as a single unit two looms are required for a complete left and right lamp installation. This is a 12V only product.

Key Specifications

  • Function: 5-core tail light loom with load resistors
  • Loom length: 450mm
  • Connectors: CS plug + DT04-6P plug
  • Load resistors: Pre-wired (2 x 12V)
  • Voltage: 12V only
  • Compatible lamp series: LED Autolamps 355 Series, 385 Series rear combination lamps
  • Pack quantity: Single unit (2 required for pair of lamps)
  • Brand: LED Autolamps
  • SKU: 2LR12-450CSB

Features & Benefits

  • Pre-wired load resistors: Two load resistors pre-wired into the loom prevent hyper-flash and dashboard error warnings caused by the low current draw of LED tail lamps on vehicles with CAN bus lamp failure monitoring
  • 5-core loom: Five conductor loom carries stop, tail, indicator, reverse, and earth circuits between the lamp and patch lead
  • 450mm length: Provides sufficient loom length for most tray and trailer rear lamp installations
  • CS and DT04-6P connectors: Dual plug format provides flexibility for different installation configurations CS plug at one end, DT04-6P at the other
  • Suits 355 and 385 Series lamps: Specifically compatible with LED Autolamps 355 Series and 385 Series rear combination lamps in patch lead system configurations
  • Part of the LED Autolamps patch lead ecosystem: Designed to work within the LED Autolamps patch lead system: lamp → loom → patch lead → vehicle factory plug

Technical Specs

Specification Detail
SKU 2LR12-450CSB
Brand LED Autolamps
Function 5-Core Tail Light Loom with Load Resistors
Loom Length 450mm
Connectors CS plug + DT04-6P
Load Resistors Pre-wired (2 x 12V)
Voltage 12V only
Compatible Lamps 355 Series, 385 Series
Pack Quantity Single unit

Compatible With

Confirmed compatible lamp series:

  • LED Autolamps 355 Series rear combination lamps
  • LED Autolamps 385 Series rear combination lamps (including 385ARWM-2, previously listed)

Frequently Asked Questions

How many looms do I need for a complete installation?

Two looms are required one per lamp for a complete left and right rear lamp installation. This listing is for a single unit.

Why do I need load resistors in this loom?

LED tail lamps draw significantly less current than incandescent globes. On vehicles with CAN bus lamp failure monitoring, this low draw can trigger dashboard error warnings or hyper-flash. The pre-wired load resistors simulate the load of the original incandescent lamp to prevent these issues.

What vehicle patch lead do I need to complete the installation?

The appropriate patch lead depends on your specific vehicle make and model. Contact your LED Autolamps retailer to confirm the correct patch lead for your vehicle.

Is this loom compatible with MAXILAMPC3XR or MAXILAMPC3XRWB lamps?

The Maxilamp 3 series lamps come with a harness built in you would only need the applicable patch lead for those lamps. The 2LR12-450CSB is designed for 355 and 385 Series lamps that do not have a built-in harness.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
