LED Autolamps 285CAW24 24V Front Indicator And Park Light Chrome Bezel Blister
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 285CAW24 24V Front Indicator And Park Light Chrome Bezel Blister

SKU: 285CAW24
Price
$93
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

24V Slimline Front Indicator & Park Light Chrome Bezel, 285mm, ECE/ADR Approved, IP67.

Product Overview

The LED Autolamps 285CAW24 is a 24V slimline front direction indicator and front position (park) lamp from the 285 Series the 24V variant of the 285CAW range, designed for commercial trucks, buses, and 24V vehicle applications requiring a low-profile front indicator and park light solution. Measuring 285mm x 25mm x 10mm, the 285 Series is one of the most space-efficient front lamp formats available, with a screw mount system and clip-on chrome end caps that conceal all fasteners for a clean, professional appearance.

ECE and ADR approved, IP67 rated for complete dust and water protection, and capable of both horizontal and vertical mounting, the 285CAW24 is a versatile front lamp solution suited to a wide range of commercial vehicle body configurations. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.

Key Specifications

  • Functions: Front direction indicator + front position (park) lamp
  • Bezel: Chrome with clip-on caps
  • Dimensions: 285mm x 25mm x 10mm
  • Mount type: Screw mount clip-on chrome caps conceal screws
  • Mount orientation: Horizontal and vertical
  • Voltage: 24V (confirmed by SKU and title see voltage note above)
  • IP rating: IP67
  • Compliance: ECE and ADR approved
  • Warranty: 5 years

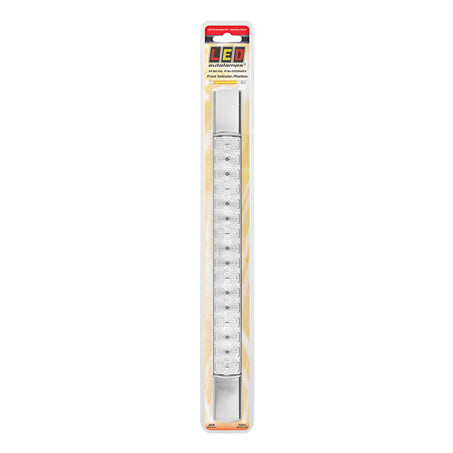

  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 285CAW24

Features & Benefits

  • Front direction indicator and park lamp: Dual function in a single slimline unit amber indicator output and white/amber park position lamp in one 285mm body
  • Chrome bezel with clip-on end caps: Screw mount fasteners concealed beneath clip-on chrome end caps for a clean, professional finished appearance
  • Slimline 285mm x 25mm x 10mm: Ultra-compact form factor suited to tight front panel and cab corner mounting locations on commercial trucks and vehicles
  • Horizontal and vertical mounting: Flexible mounting orientation accommodates a wide range of vehicle body configurations
  • ECE and ADR approved: Certified for legal use as a front direction indicator and park lamp on Australian road vehicles
  • IP67 weatherproof: Completely sealed against dust ingress and temporary water immersion
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU 285CAW24
Brand LED Autolamps
Series 285 Series
Functions Front Direction Indicator + Front Position Lamp
Bezel Chrome clip-on end caps
Dimensions 285mm x 25mm x 10mm
Mount Type Screw mount clip-on caps
Mount Orientation Horizontal and vertical
Voltage 24V (confirm with supplier)
IP Rating IP67
Compliance ECE and ADR approved
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Suits 24V commercial trucks, buses, and vehicles requiring slimline ECE/ADR front indicator and park lamps including:

  • Heavy commercial trucks and prime movers
  • Buses and coaches
  • Commercial vans and 24V light commercial vehicles

Frequently Asked Questions

Is this lamp 12V or 24V?

The SKU (285CAW24) and the product title both state 24V. The supplier features list states "12 Volt" this appears to be a data carry-over error from the 12V equivalent (285CAW12). Always confirm the voltage specification with your supplier before purchasing.

What functions does this lamp provide?

The 285CAW24 provides two functions front direction indicator (amber flashing) and front position/park lamp (white or amber steady) in a single slimline 285mm unit.

How are the screws hidden?

The 285 Series uses a screw mount system with clip-on chrome end caps. After mounting with screws, the chrome end caps clip over the screw positions, concealing all fasteners for a clean finished appearance.

Can this lamp be mounted vertically and horizontally?

Yes the 285CAW24 supports both horizontal and vertical mounting orientations, providing flexibility for different vehicle body configurations.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm voltage specification before purchasing. Contact the seller if you're unsure prior to purchase.
