Product features

12V Slimline Front Indicator & Park Light Chrome Bezel, 285mm, ECE/ADR Approved, IP67.

Product Overview

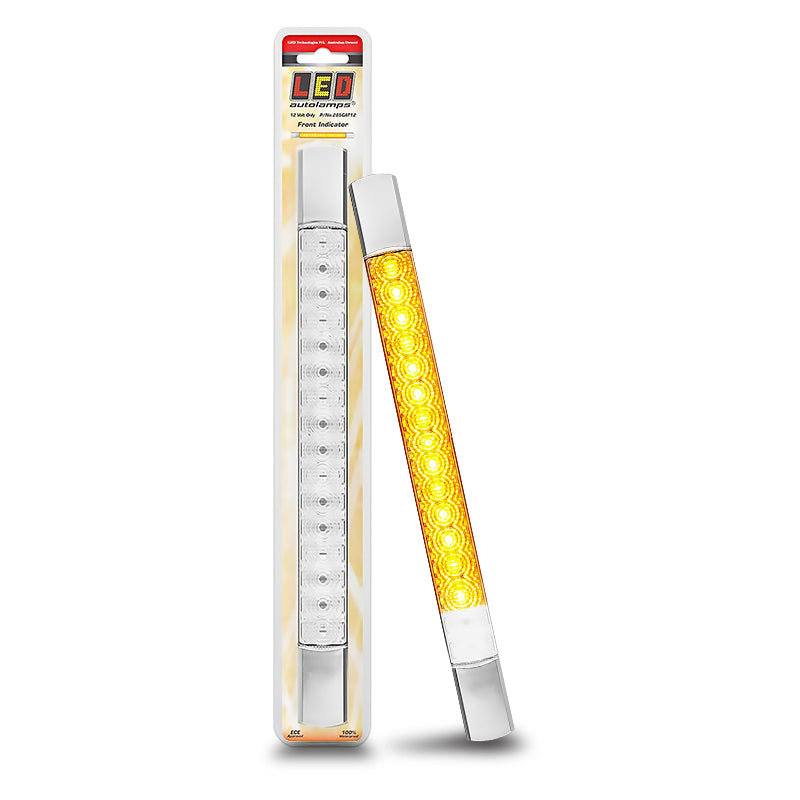

The LED Autolamps 285CAW12 is a 12V slimline front direction indicator and front position (park) lamp from the 285 Series the 12V variant of the 285CAW range. Measuring 285mm x 25mm x 10mm, the 285 Series delivers dual front lamp function (indicator and park) in one of the most space-efficient front lamp formats available for trailers, caravans, and light commercial vehicles.

The screw mount system with clip-on chrome end caps conceals all fasteners for a clean, professional finished appearance. ECE and ADR approved, IP67 rated, and capable of both horizontal and vertical mounting. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging. For the 24V version, refer to the 285CAW24.

Key Specifications

  • Functions: Front direction indicator + front position (park) lamp
  • Bezel: Chrome with clip-on end caps
  • Dimensions: 285mm x 25mm x 10mm
  • Mount type: Screw mount clip-on chrome caps conceal screws
  • Mount orientation: Horizontal and vertical
  • Voltage: 12V only
  • IP rating: IP67
  • Compliance: ECE and ADR approved
  • Warranty: 5 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 285CAW12

Features & Benefits

  • Front direction indicator and park lamp: Dual function in a single slimline unit amber indicator output and front position lamp in one 285mm body
  • Chrome bezel with clip-on end caps: Screw mount fasteners concealed beneath clip-on chrome end caps for a clean, professional finished appearance
  • Slimline 285mm x 25mm x 10mm: Ultra-compact form factor suited to tight front panel mounting locations on trailers, caravans, and commercial vehicles
  • Horizontal and vertical mounting: Flexible mounting orientation accommodates a wide range of vehicle and trailer configurations
  • ECE and ADR approved: Certified for legal use as a front direction indicator and park lamp on Australian road vehicles
  • IP67 weatherproof: Completely sealed against dust ingress and temporary water immersion
  • 12V only: Direct 12V compatibility for trailers, caravans, and light commercial vehicles
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU 285CAW12
Brand LED Autolamps
Series 285 Series
Functions Front Direction Indicator + Front Position Lamp
Bezel Chrome clip-on end caps
Dimensions 285mm x 25mm x 10mm
Mount Type Screw mount clip-on caps
Mount Orientation Horizontal and vertical
Voltage 12V only
IP Rating IP67
Compliance ECE and ADR approved
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Suits 12V trailers, caravans, and commercial vehicles requiring slimline ECE/ADR front indicator and park lamps including:

  • Box trailers and light trailers
  • Caravans and camper trailers
  • Light commercial vehicles and 4WDs

Frequently Asked Questions

What functions does this lamp provide?

The 285CAW12 provides two functions front direction indicator (amber flashing) and front position/park lamp (steady) in a single slimline 285mm unit.

Is this lamp 12V or 24V?

This is the 12V only version. For the 24V version refer to the 285CAW24.

How are the mounting screws hidden?

The 285 Series uses a screw mount system with clip-on chrome end caps. After mounting with screws, the chrome end caps clip over the screw positions, concealing all fasteners for a clean finished appearance.

Can this lamp be mounted vertically and horizontally?

Yes the 285CAW12 supports both horizontal and vertical mounting orientations.
