Product features

24V Slimline Front Direction Indicator Chrome Bezel, 285mm, ECE/ADR Approved, IP67.

Product Overview

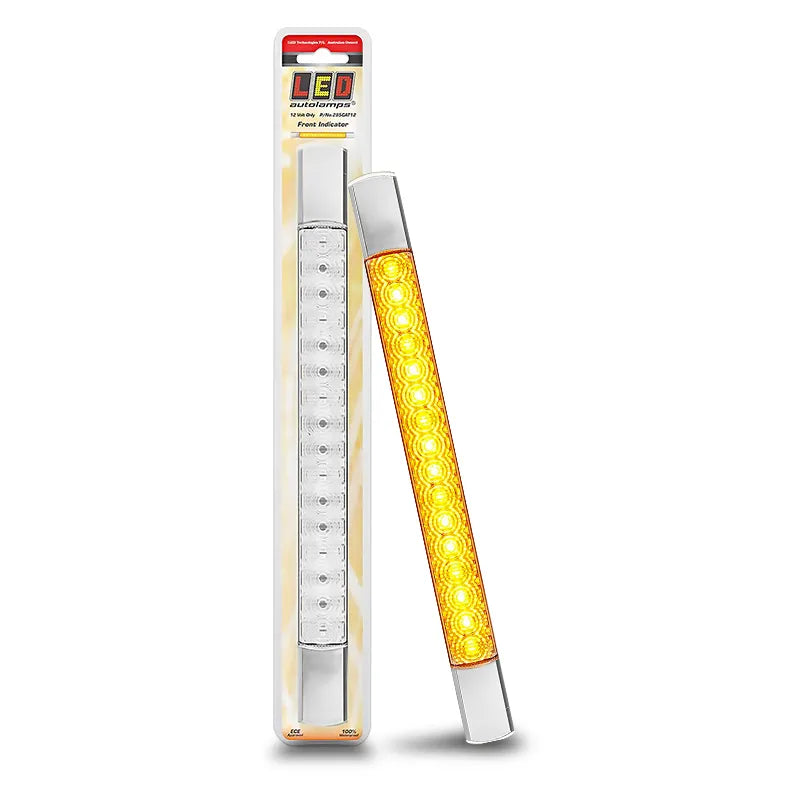

The LED Autolamps 285CAT24 is a 24V slimline front direction indicator from the 285 Series the indicator-only 24V variant, without the front position (park) lamp function of the 285CAW24. Designed for 24V commercial trucks, buses, and heavy vehicles requiring a compact, low-profile front amber indicator in the proven 285 Series form factor.

Measuring 285mm x 25mm x 10mm with a screw mount and clip-on chrome end caps, the 285CAT24 provides a clean, professional finished appearance with no visible fasteners. ECE and ADR approved, IP67 rated, and capable of both horizontal and vertical mounting. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.

Key Specifications

  • Function: Front direction indicator only (no park/position function)
  • Bezel: Chrome with clip-on end caps
  • Dimensions: 285mm x 25mm x 10mm
  • Mount type: Screw mount clip-on chrome caps conceal screws
  • Mount orientation: Horizontal and vertical
  • Voltage: 24V (confirmed by SKU and title see voltage note above)
  • IP rating: IP67
  • Compliance: ECE and ADR approved
  • Warranty: 5 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 285CAT24

Features & Benefits

  • Front direction indicator only: Dedicated amber front indicator function note: no front position/park lamp function. For the version with combined indicator and park, refer to the 285CAW24
  • Chrome bezel with clip-on end caps: Screw mount fasteners concealed beneath clip-on chrome end caps for a clean, professional finished appearance
  • Slimline 285mm x 25mm x 10mm: Ultra-compact form factor for tight front panel and cab corner mounting on 24V commercial trucks and vehicles
  • Horizontal and vertical mounting: Flexible orientation to suit a wide range of vehicle body configurations
  • ECE and ADR approved: Certified for legal use as a front direction indicator on Australian road vehicles
  • IP67 weatherproof: Completely sealed against dust ingress and temporary water immersion
  • 24V: Designed for 24V commercial vehicle electrical systems
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU 285CAT24
Brand LED Autolamps
Series 285 Series
Function Front Direction Indicator only
Bezel Chrome clip-on end caps
Dimensions 285mm x 25mm x 10mm
Mount Type Screw mount clip-on caps
Mount Orientation Horizontal and vertical
Voltage 24V (confirm with supplier)
IP Rating IP67
Compliance ECE and ADR approved
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Suits 24V commercial trucks, buses, and vehicles requiring a slimline ECE/ADR front direction indicator including:

  • Heavy commercial trucks and prime movers
  • Buses and coaches
  • Commercial vans and 24V light commercial vehicles

Frequently Asked Questions

Does this lamp include a park/position lamp function?

No the 285CAT24 is an indicator-only lamp. For the version with combined front indicator and park lamp function, refer to the 285CAW24 (24V) or 285CAW12 (12V).

Is this lamp 12V or 24V?

The SKU (285CAT24) and product title both confirm 24V. The supplier features list states "12 Volt" this appears to be a data carry-over error. Confirm voltage with your supplier before purchasing.

How are the mounting screws hidden?

The 285 Series uses clip-on chrome end caps that cover the screw positions after mounting, concealing all fasteners for a clean finished appearance.

Can this lamp be mounted vertically and horizontally?

Yes the 285CAT24 supports both horizontal and vertical mounting orientations.
