LED Autolamps 285BW12 12V Slimline/Low Profile Reverse Lamp with Black End Caps
Click to open expanded view
LED AUTOLAMPS logo

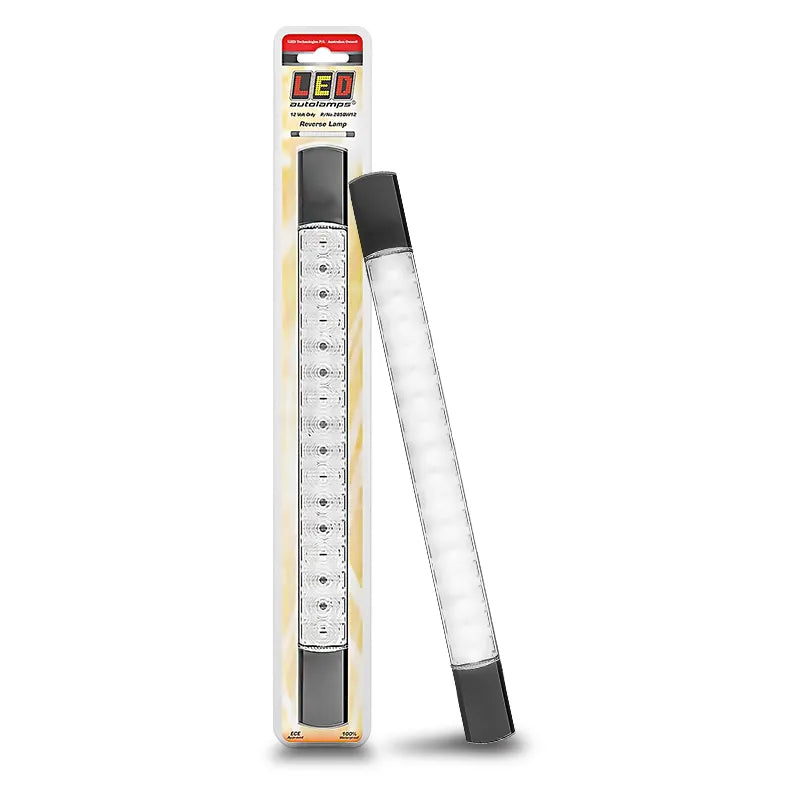

LED Autolamps 285BW12 12V Slimline/Low Profile Reverse Lamp with Black End Caps

SKU: 285BW12
Price
$82
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 285BW12 12V Slimline Low Profile Reverse Lamp 285mm x 25mm x 10mm Black End Caps Surface Mount 266mm Centres ECE Approved E9 23R00 IP67

The LED Autolamps 285BW12 is a 12V LED slimline reverse lamp in a 285mm x 25mm x 10mm low-profile housing with black end caps. Surface mount, 266mm mounting centres, vertical and horizontal mount options, 0.18A at 13.8V. ECE approved (E9 23R00/22 22112 00), IP67 waterproof. Can also be used as an interior lamp. Five-year warranty. Sold individually.

Product overview

The 285BW12 is the reverse lamp in the LED Autolamps 285 series slimline strip range, matching the 285mm x 25mm x 10mm low-profile format of the 285BA12 indicator and 285BAR12 combination lamp. Black end caps provide a clean, blacked-out appearance. Vertical and horizontal mounting options allow installation to suit the panel orientation. The lamp can also be used as an interior courtesy lamp where a slimline white LED strip is required. ECE approval E9 23R00 confirms road-legal use in Australia as a reverse lamp. 12V only. IP67 rated.

Features and benefits

White LED reverse lamp output: ECE-compliant reverse function in the 285mm slimline strip format.

285mm x 25mm x 10mm low-profile housing: 10mm depth for a clean surface mount appearance.

Black end caps: Clean, blacked-out finish on both ends of the strip.

266mm mounting centres: Confirmed fixing point spacing for accurate panel preparation.

Vertical and horizontal mount options: Flexible installation orientation to suit different panel layouts.

Can also be used as an interior lamp: Suited to interior courtesy lighting applications where a slimline white LED strip is required.

ECE approved (E9 23R00/22 22112 00): Meets international road approval standards accepted for on-road use in Australia.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

0.18A current draw at 13.8V.

12V only.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 285BW12
Brand LED Autolamps
Type Reverse lamp (also suitable as interior lamp)
Light Type LED
LED Colour White
Operating Voltage 12V
Current Draw 0.18A at 13.8V
Mount Type Surface mount
Mounting Centres 266mm
Dimensions 285mm x 25mm x 10mm
End Caps Black
Mount Orientation Vertical and horizontal
Waterproof Rating IP67
ECE Compliance E9 23R00/22 22112 00
Warranty Five years

Frequently asked questions

Is the 285BW12 ECE approved?

Yes. The 285BW12 carries ECE approval E9 23R00/22 22112 00, meeting international road approval standards accepted for on-road use in Australia as a reverse lamp.

Can the 285BW12 be used as an interior lamp?

Yes. The 285BW12 can be used as an interior courtesy lamp where a slimline 12V white LED strip is required, in addition to its primary use as a reverse lamp.

How does the 285BW12 fit with the rest of the 285 series?

The 285BW12 is the reverse lamp in the 285 series, sharing the same 285mm x 25mm x 10mm format and surface mount design as the 285BA12 indicator and 285BAR12 stop/tail/indicator combination lamp for a matched rear lighting installation.

What are the mounting centres on the 285BW12?

The 285BW12 has 266mm mounting centres between fixing points. Confirm this suits your panel before purchasing.

Is the 285BW12 sold as a single unit or a pair?

Sold individually.
