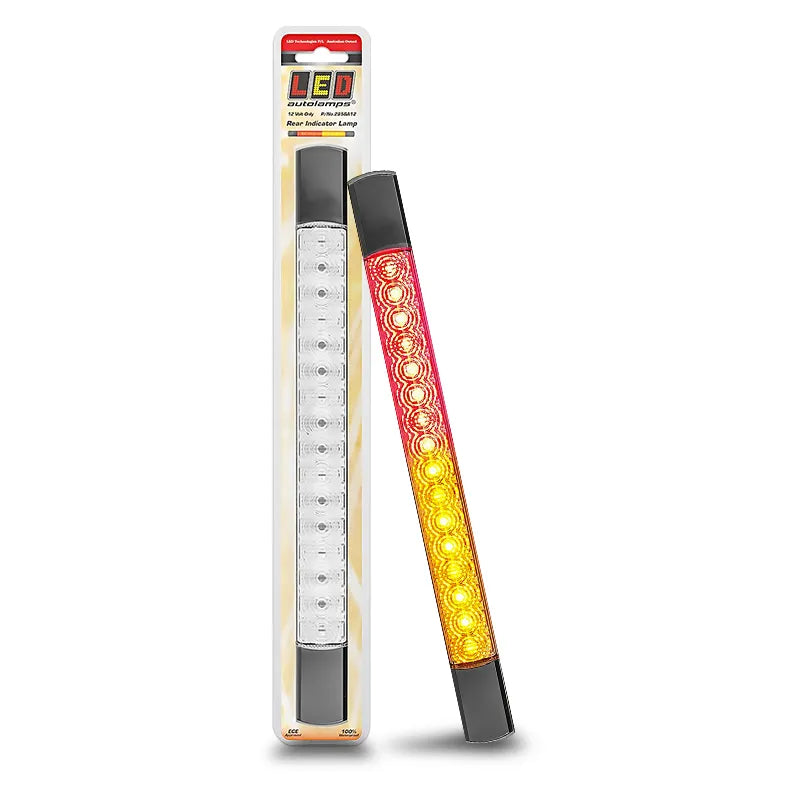

LED Autolamps 285BAR12 Stop/Tail/Indicator Light 16 LED 12V Low Surface Mount
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 285BAR12 Stop/Tail/Indicator Light 16 LED 12V Low Surface Mount

SKU: 285BAR12
Price
$81
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 285BAR12 12V Stop Tail and Indicator Strip 16 LED 285mm x 25mm x 10mm Low Profile Surface Mount 266mm Centres ECE Approved E9 7R02 6R01 IP67

The LED Autolamps 285BAR12 is a 12V LED stop/tail/indicator combination strip with 16 LEDs in a 285mm x 25mm x 10mm low-profile polycarbonate housing. Surface mount, 266mm mounting centres, 85mm cable, vertical and horizontal mount options. ECE approved (E9 7R02/27 6R01/28), IP67 waterproof. Current draw at 13.8V: stop 0.24A, tail 0.09A, indicator 0.14A. Five-year warranty. Sold individually.

Product overview

The 285BAR12 covers stop, tail, and indicator functions in a single 285mm low-profile strip suited to trailers, caravans, trucks, and commercial vehicles. The polycarbonate lens and base provide durable construction. The 85mm cable suits direct connection at the mounting point. Vertical and horizontal mounting options allow installation to suit the panel orientation. ECE approval confirms road-legal use in Australia. 12V only. IP67 rated.

Features and benefits

Stop, tail, and indicator in one 285mm strip: Three-function low-profile combination strip lamp.

285mm x 25mm x 10mm low-profile housing: Slim 10mm depth for a clean surface mount appearance on trailer and vehicle rear panels.

266mm mounting centres: Confirmed fixing point spacing for accurate panel preparation.

Vertical and horizontal mount options: Flexible installation orientation to suit different panel layouts.

85mm cable: Short pre-wired lead for connection at the installation point.

Polycarbonate lens and base.

ECE approved (E9 7R02/27 6R01/28): Meets international road approval standards accepted for on-road use in Australia.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V only.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 285BAR12
Brand LED Autolamps
Type Stop/tail/indicator combination strip lamp
Light Type LED
LED Count 16
Operating Voltage 12V
Current Draw (Stop) 0.24A at 13.8V
Current Draw (Tail) 0.09A at 13.8V
Current Draw (Indicator) 0.14A at 13.8V
Mount Type Surface mount
Mounting Centres 266mm
Cable Length 85mm
Dimensions 285mm x 25mm x 10mm
Lens Material Polycarbonate
Base Material Polycarbonate
Mount Orientation Vertical and horizontal
Waterproof Rating IP67
ECE Compliance E9 7R02/27 6R01/28
Warranty Five years

Frequently asked questions

Is the 285BAR12 ECE approved?

Yes. The 285BAR12 carries ECE approval E9 7R02/27 6R01/28, meeting international road approval standards accepted for on-road use in Australia as a stop/tail/indicator combination lamp.

What functions does the 285BAR12 cover?

The 285BAR12 covers stop, tail, and indicator functions in a single 285mm strip unit.

Can the 285BAR12 be mounted vertically and horizontally?

Yes. The 285BAR12 supports both vertical and horizontal mounting orientations, allowing installation to suit the panel layout on the trailer or vehicle.

What is the current draw of the 285BAR12?

At 13.8V: stop draws 0.24A, tail draws 0.09A, and indicator draws 0.14A.

Is the 285BAR12 sold as a single unit or a pair?

Sold individually.
