LED Autolamps 285BA12 Rear Indicator Light 16 LED 12V Low Profile Surface Mount
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 285BA12 Rear Indicator Light 16 LED 12V Low Profile Surface Mount

SKU: 285BA12
Price
$85
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved 12V Slimline Rear Indicator 16 LEDs, 285x25x10mm, Black/Chrome Caps, Horizontal/Vertical Mount

Product Overview

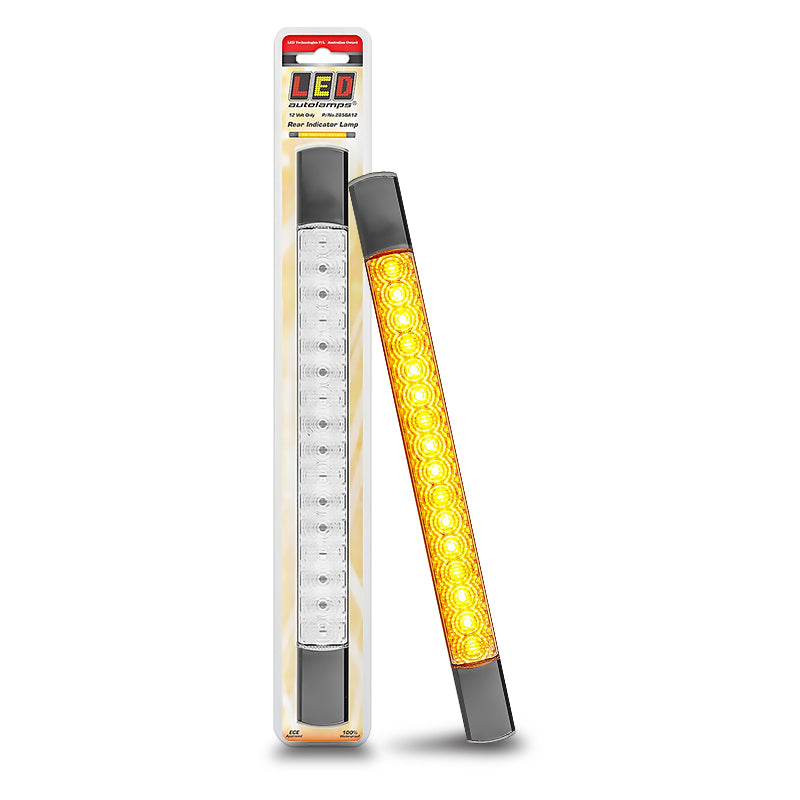

The LED Autolamps 285BA12 is a 12V slimline surface-mount rear indicator lamp with 16 LEDs in a 285mm x 25mm x 10mm polycarbonate housing with black chrome end caps. At only 10mm deep, it is an exceptionally low-profile indicator suited to trailer bodies, caravans, and truck panels where minimal depth is essential. The 266mm centre-to-centre mount supports both horizontal and vertical installation.

ECE approved under E9 6R01/28 22184 00, drawing 0.2A at 13.8V, with an 85mm cable lead. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

  • 16 LEDs — consistent amber indicator output across the 285mm slimline lamp face
  • 10mm depth — among the shallowest indicator lamps in the LED Autolamps range; suited to confined mounting panels
  • Black/chrome end caps — premium finish that complements the slimline form factor
  • Horizontal and vertical mount — flexible orientation suits a wide range of trailer and vehicle panel configurations
  • Polycarbonate lens and base — impact-resistant with good optical clarity
  • ECE approved — certified under ECE E9 6R01/28 22184 00 for legal on-road use as a rear indicator
  • 0.2A current draw — efficient operation at 13.8V
  • IP67 rated — fully sealed against dust and water immersion
  • 266mm centre-to-centre mount — confirm against your panel before installation
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 285BA12
Lamp Type Rear Indicator
LED Quantity 16
Voltage 12V
Dimensions 285mm x 25mm x 10mm
Mount Centre-to-Centre 266mm
Current Draw 0.2A @ 13.8V
Cable Length 85mm
Lens Material Polycarbonate
Base Material Polycarbonate
End Caps Black/chrome
Mounting Horizontal or vertical surface mount
Protection Rating IP67
Compliance ECE E9 6R01/28 22184 00
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, caravans, and commercial vehicles requiring ultra-slim rear indicator lamps
  • 12V trailer and vehicle electrical systems
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 285BA12 approved for road use in Australia?

Yes. The 285BA12 is ECE approved under E9 6R01/28 22184 00, meeting international road approval standards accepted for legal on-road use in Australia as a rear indicator lamp.

How shallow is the 285BA12?

At 10mm deep, the 285BA12 is one of the shallowest rear indicator lamps in the LED Autolamps catalogue — suited to thin panel installations where conventional lamp depth would be problematic.

What mounting orientations does the 285BA12 support?

It supports both horizontal and vertical surface mounting, giving installation flexibility to suit different trailer and vehicle panel layouts.

What is the IP rating on the 285BA12?

The 285BA12 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and vehicle body mounting.

What warranty does the 285BA12 carry?

The 285BA12 is backed by a 5-year warranty from LED Autolamps.
